8475-512
Screw, Machine Not Available Price:

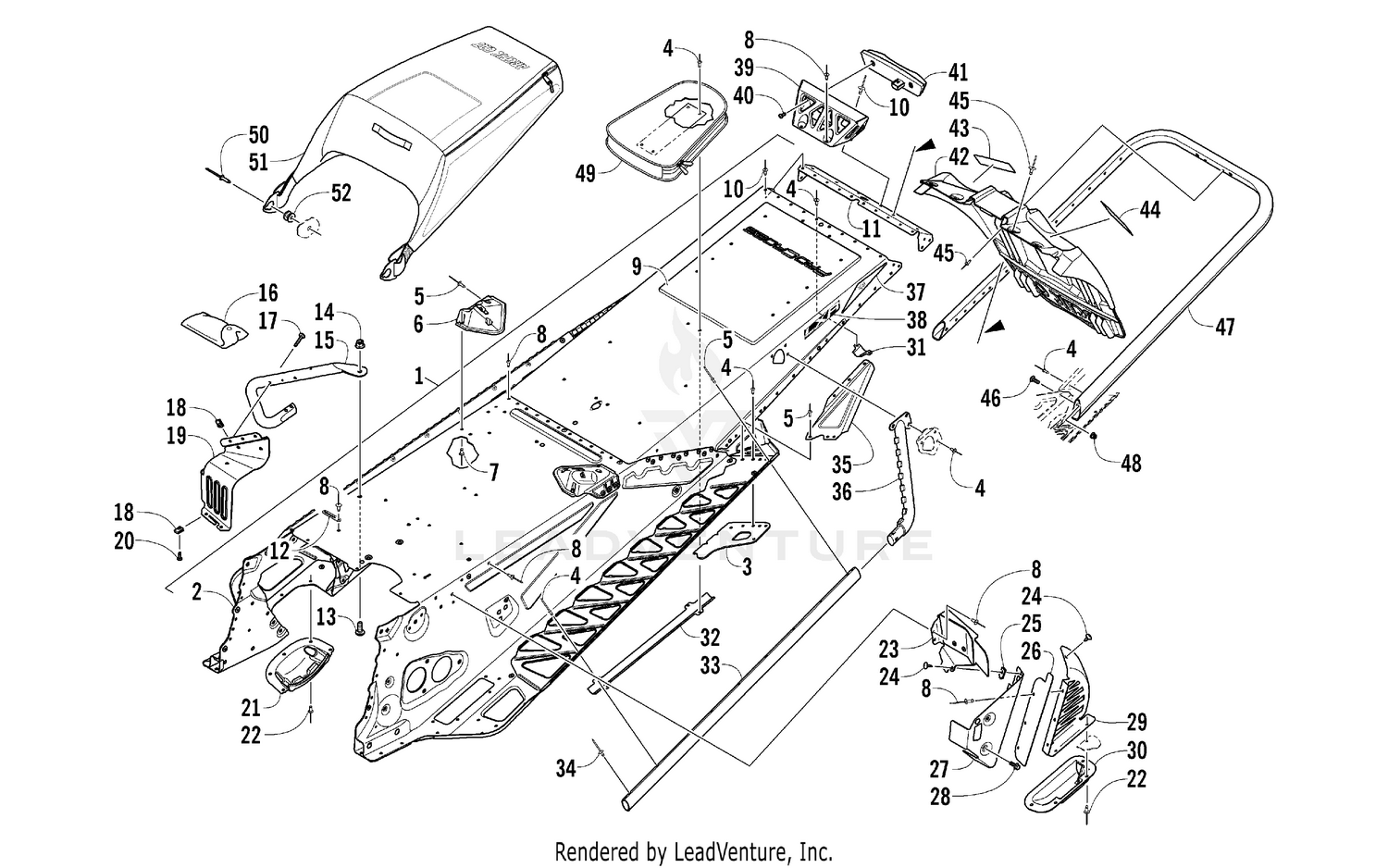

Схема сборки, где используется деталь
Used in (40 assemblies)
| Brand | Assembly | Path | Ref |
|---|---|---|---|
| ARC | TUNNEL, REAR BUMPER, AND SNOWFLAP ASSEMBLY [96664] | Arctic Cat / SNOWMOBILE / 2013 / 2013 F 1100 LXR GREEN [S2013F1NLXUSG] / TUNNEL, | 20 |
| ARC | TUNNEL, REAR BUMPER, AND SNOWFLAP ASSEMBLY [96684] | Arctic Cat / SNOWMOBILE / 2013 / 2013 F 1100 SNO PRO GREEN [S2013F1NEPUSG] / TUN | 20 |
| ARC | TUNNEL, REAR BUMPER, AND SNOWFLAP ASSEMBLY [96704] | Arctic Cat / SNOWMOBILE / 2013 / 2013 F 1100 SNO PRO LTD WHITE [S2013F1NELUSW] / | 20 |
| ARC | TUNNEL, REAR BUMPER, AND SNOWFLAP ASSEMBLY [96754] | Arctic Cat / SNOWMOBILE / 2013 / 2013 F 1100 TURBO SNO PRO LTD BLACK [S2013F1NLE | 23 |
| ARC | TUNNEL, REAR BUMPER, AND SNOWFLAP ASSEMBLY [96821] | Arctic Cat / SNOWMOBILE / 2013 / 2013 XF 1100 TURBO SNO PRO HIGH COUNTRY LTD INT | 23 |
| ARC | TUNNEL, REAR BUMPER, AND SNOWFLAP ASSEMBLY [96997] | Arctic Cat / SNOWMOBILE / 2013 / 2013 XF 800 SNO PRO INTERNATIONAL GREEN [S2013X | 20 |
| ARC | COOLING ASSEMBLY [105779] | Arctic Cat / SNOWMOBILE / 2016 / 2016 BEARCAT 7000 XT GROOMER SPECIAL ORANGE INT | 7 |
| ARC | COOLING ASSEMBLY [103627] | Arctic Cat / SNOWMOBILE / 2016 / 2016 XF 7000 HIGH COUNTRY 141 ORANGE INTERNATIO | 28 |
| ARC | COOLING ASSEMBLY [106275] | Arctic Cat / SNOWMOBILE / 2018 / 2018 BEARCAT 7000 XT GROOMER SPECIAL BLUE INTER | 7 |
| ARC | COOLING ASSEMBLY [106274] | Arctic Cat / SNOWMOBILE / 2018 / 2018 BEARCAT 7000 XT GROOMER SPECIAL BLUE [S201 | 7 |
| ARC | TUNNEL AND SNOWFLAP ASSEMBLY [106184] | Arctic Cat / SNOWMOBILE / 2018 / 2018 M 6000 SE ES 141 GREEN INTERNATIONAL [S201 | 8 |
| ARC | TUNNEL AND SNOWFLAP ASSEMBLY [106141] | Arctic Cat / SNOWMOBILE / 2018 / 2018 M 6000 SE ES 141 GREEN [S2018M6DM2USG] / T | 8 |
| ARC | TUNNEL AND SNOWFLAP ASSEMBLY [105886] | Arctic Cat / SNOWMOBILE / 2018 / 2018 M 6000 SE ES 153 GREEN INTERNATIONAL [S201 | 8 |
| ARC | BUMPER, STORAGE, AND TAILLIGHT ASSEMBLY [106297] | Arctic Cat / SNOWMOBILE / 2018 / 2018 XF 6000 CROSSTOUR 146 ORANGE [S2018XFDCTUS | 9 |
| ARC | COOLING ASSEMBLY [106316] | Arctic Cat / SNOWMOBILE / 2018 / 2018 ZR 3000 129 GREEN [S2018ZRTLXUSG] / COOLIN | 27 |
| ARC | TUNNEL AND SNOWFLAP ASSEMBLY [106308] | Arctic Cat / SNOWMOBILE / 2018 / 2018 ZR 3000 129 GREEN [S2018ZRTLXUSG] / TUNNEL | 7 |
| ARC | CHAIN CASE ASSEMBLY [106233] | Arctic Cat / SNOWMOBILE / 2018 / 2018 ZR 6000 R SX GREEN INTERNATIONAL [S2018ACD | 32 |
| ARC | TUNNEL AND SNOWFLAP ASSEMBLY [106199] | Arctic Cat / SNOWMOBILE / 2018 / 2018 ZR 6000 R XC GREEN INTERNATIONAL [S2018ACD | 8 |
| ARC | TUNNEL AND SNOWFLAP ASSEMBLY [105851] | Arctic Cat / SNOWMOBILE / 2018 / 2018 ZR 8000 RR ES 129 GREEN [S2018ZRHRRUSG] / | 8 |
| ARC | COOLING ASSEMBLY [106168] | Arctic Cat / SNOWMOBILE / 2019 / 2019 BEARCAT 7000 XT GRAY INTERNATIONAL [S2019B | 7 |
| ARC | AIR INTAKE ASSEMBLY [106310] | Arctic Cat / SNOWMOBILE / 2019 / 2019 NORSEMAN 3000 154 GRAY INTERNATIONAL [S201 | 5 |
| ARC | COOLING ASSEMBLY [104025] | Arctic Cat / SNOWMOBILE / 2019 / 2019 PANTERA 7000 XT LTD BLACK INTERNATIONAL [S | 7 |
| ARC | CHASSIS ASSEMBLY [108956] | Arctic Cat / SNOWMOBILE / 2021 / 2021 BLAST 4000 M LTD RED NE [S2021JABA1NER] / | 41 |
| ARC | TUNNEL AND SNOWFLAP ASSEMBLY [108966] | Arctic Cat / SNOWMOBILE / 2021 / 2021 ZR 6000 LTD ES 137 ATAC GREEN SK [S2021ZXD | 8 |
| ARC | TUNNEL AND SNOWFLAP ASSEMBLY [108960] | Arctic Cat / SNOWMOBILE / 2021 / 2021 ZR 6000 LTD ES 137 GREEN SK [S2021ZXDKEUSG | 8 |
| ARC | CHASSIS ASSEMBLY [109253] | Arctic Cat / SNOWMOBILE / 2022 / 2022 BLAST 4000 ZR GREEN INTERNATIONAL SK [S202 | 41 |
| ARC | CHASSIS ASSEMBLY [109028] | Arctic Cat / SNOWMOBILE / 2022 / 2022 BLAST 4000 ZR GREEN SK EARLY BUILD [S2022J | 41 |
| ARC | CHAIN CASE ASSEMBLY [108971] | Arctic Cat / SNOWMOBILE / 2022 / 2022 ZR 6000 R SX GREEN [S2022ACDPRUSG] / CHAIN | 33 |
| ARC | TUNNEL AND SNOWFLAP ASSEMBLY [110024] | Arctic Cat / SNOWMOBILE / 2023 / 2023 M 8000 MOUNTAIN CAT ALPHA ONE 146 (2.6) BL | 8 |
| ARC | TUNNEL AND SNOWFLAP ASSEMBLY [110054] | Arctic Cat / SNOWMOBILE / 2023 / 2023 M 8000 MOUNTAIN CAT ALPHA ONE 154 (3.0) AT | 8 |
| ARC | TUNNEL AND SNOWFLAP ASSEMBLY [110050] | Arctic Cat / SNOWMOBILE / 2023 / 2023 M 8000 MOUNTAIN CAT ALPHA ONE 154 (3.0) GR | 8 |
| ARC | TUNNEL AND SNOWFLAP ASSEMBLY [110115] | Arctic Cat / SNOWMOBILE / 2023 / 2023 M 8000 MOUNTAIN CAT ALPHA ONE ES 146 (2.6) | 8 |
| ARC | TUNNEL AND SNOWFLAP ASSEMBLY [109872] | Arctic Cat / SNOWMOBILE / 2023 / 2023 NORSEMAN 8000 X ES 153 RED [S2023BCHLDUSR] | 7 |
| ARC | TUNNEL AND SNOWFLAP ASSEMBLY [110010] | Arctic Cat / SNOWMOBILE / 2023 / 2023 RIOT X 8000 146 ES ATAC (2.6) RED [S2023R8 | 8 |
| ARC | TUNNEL AND SNOWFLAP ASSEMBLY [110019] | Arctic Cat / SNOWMOBILE / 2023 / 2023 ZR 6000 129 R XC BLACK [S2023ACDRXUSB] / T | 8 |
| ARC | TUNNEL AND SNOWFLAP ASSEMBLY [110117] | Arctic Cat / SNOWMOBILE / 2024 / 2024 M 8000 MOUNTAIN CAT ALPHA ONE ES 154 (3.0) | 8 |
| ARC | CHASSIS ASSEMBLY [109921] | Arctic Cat / SNOWMOBILE / 2026 / 2026 M 400 Purple [S2026JABA2USP] / CHASSIS ASS | 41 |
| ARC | TUNNEL AND REAR RACK ASSEMBLY [111325] | Arctic Cat / SNOWMOBILE / 2026 / 2026 PANTERA 9000 BLACK [S2026PTXLXUSB] / TUNNE | 7 |
| ARC | DRIVE TRAIN SHAFT AND BRAKE ASSEMBLIES [106072] | Arctic Cat / SNOWMOBILE / 2026 / 2026 ZR 200 ES GREEN [S2026ZRAABUSG] / DRIVE TR | 3 |
| ARC | TUNNEL AND SNOWFLAP ASSEMBLY [111302] | Arctic Cat / SNOWMOBILE / 2026 / 2026 ZR 9000 THUNDERCAT 137 ATAC EPS BLACK [S20 | 7 |
