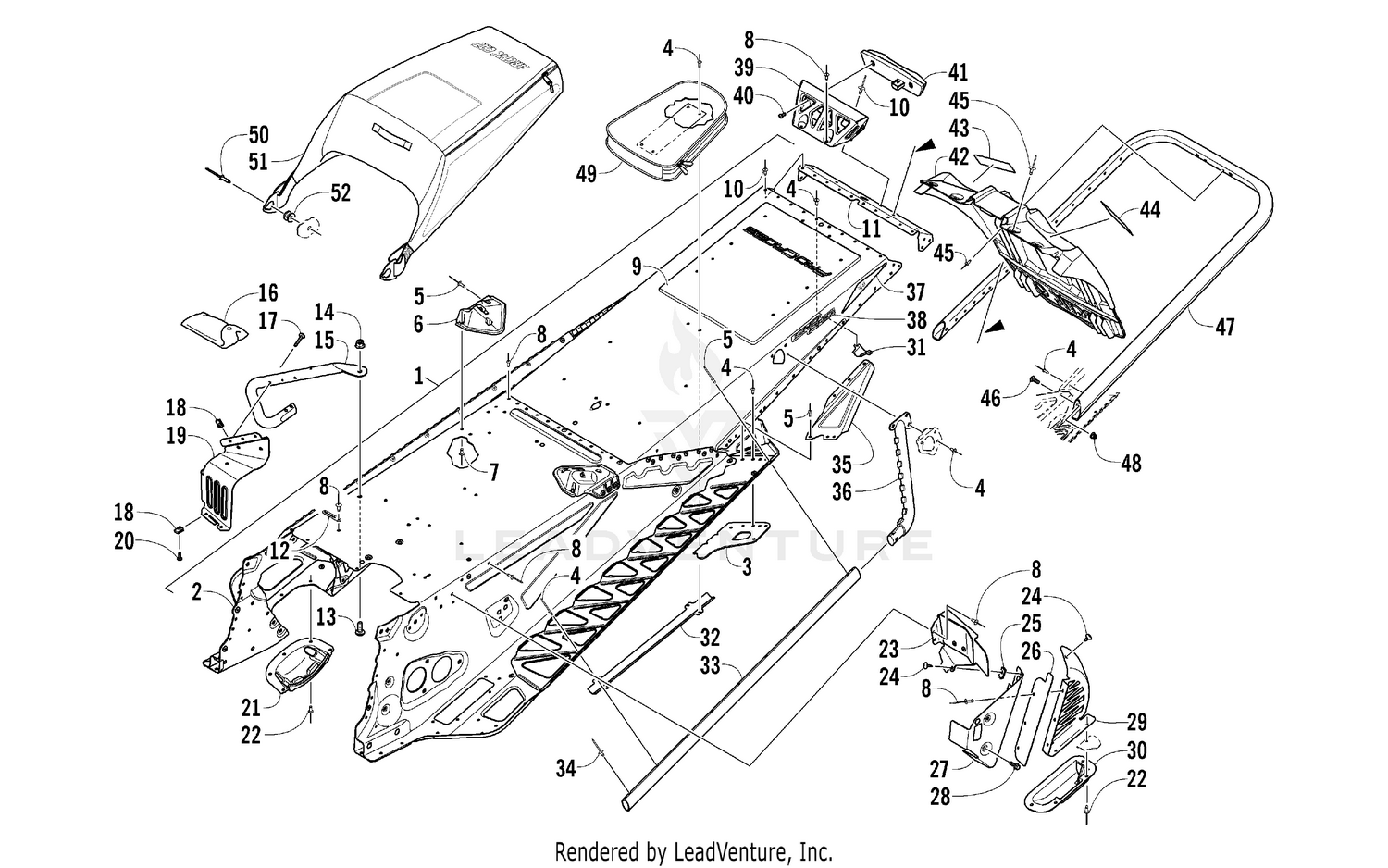

TUNNEL, REAR BUMPER, AND SNOWFLAP ASSEMBLY [96704]

Parts (55)

Ref	Part Number	Description
3	1707-918	Bracket, Mounting - Suspension - Right - White Price: $26.95
3	1707-919	Bracket, Mounting - Suspension - Left - White Price: $26.95
4	8060-686	Rivet - Zinc Price: $0.46
5	1623-241	Rivet Price: $2.05
6	1707-692	Bracket, Mounting - Rear Spar - Right - Black Price: $33.95
6	1707-693	Bracket, Mounting - Rear Spar - Left - Black Price: $41.95
6	1707-904	Bracket, Mounting - Rear Spar - Right - White Price: $36.95
6	1707-905	Bracket, Mounting - Rear Spar - Left - White Price: $36.95
7	1623-257	Rivet Price: $2.30
8	8060-682	Rivet Price: $0.24
9	1707-837	Tunnel, Rear White Price: $237.95
10	8060-484	Rivet Price: $0.46
11	1707-834	End Cap, Tunnel - White Price: $46.95
12	1623-984	Clamp, Routing Price: $7.08
13	8476-820	Screw, Machine Price: $1.08
14	8427-802	Nut, Lock Price: $0.58
15	1707-800	Support, Footrest - Right - White Price: $68.95
15	1707-801	Support, Footrest - Left - White Price: $68.95
16	0744-064	Kit, Tool Price: $78.95
17	8468-536	Screw, Machine Price: $1.92
18	1623-637	Clip, U-Nut Price: $2.61
19	1707-802	Footrest - Right - White Price: $35.95
19	1707-803	Footrest - Left - White Price: $35.95
20	8475-512	Screw, Machine Not Available Price:
21	1607-109	Protector, Chain Case Price: $5.90
22	8061-708	Rivet Price: $1.08
23	1702-278	Mount, Clutch Guard Price: $33.95
24	1623-129	Screw, Self-Tapping Price: $0.29
25	1623-052	Clip, U-Nut Price: $1.08
26	1707-805	Shield, Brake Disc - Center White Price: $14.49
27	1607-118	Shield, Brake Disc - Front Price: $38.95
28	8408-613	Screw, Cap Price: $1.66
29	1707-804	Shield, Brake Disc - Rear White Price: $86.95
30	0607-351	Protector, Brake Disc Price: $13.28
31	0630-292	Protector, Taillight Harness Price: $16.92
32	0630-308	Protector, Harness - Taillight Extension Price: $18.13
33	1707-899	Roll, Tunnel - White Price: $16.95
34	1623-130	Rivet Price: $1.80
35	1707-906	Gusset, Running Board - Right - White Price: $33.95
35	1707-907	Gusset, Running Board - Left - White Price: $33.95
36	1707-908	Gusset, Tunnel Roll - Right - White Price: $33.95
36	1707-909	Gusset, Tunnel Roll - Left - White Price: $31.95
37	0621-990	Decal, Reflector - Red Price: $15.42
38	9611-591	Decal, Tunnel - "Sno Pro" White Price: $13.42
39	0730-228	Bracket, Mounting - Taillight - White Price: $41.95
40	8470-512	Screw, Machine Price: $0.29
41	0609-898	Taillight, LED Price: $70.95
42	6606-394	Snowflap Price: $109.95
45	8061-706	Rivet Price: $1.07
46	8476-620	Screw, Machine Price: $0.48
47	1707-817	Bumper, Rear - White Price: $109.95
48	8427-602	Nut, Hex Price: $0.23
49	6606-615	Bag, Belt Price: $49.95
50	8060-630	Rivet Price: $1.32
51	6606-600	Saddlebag Price: $242.95
