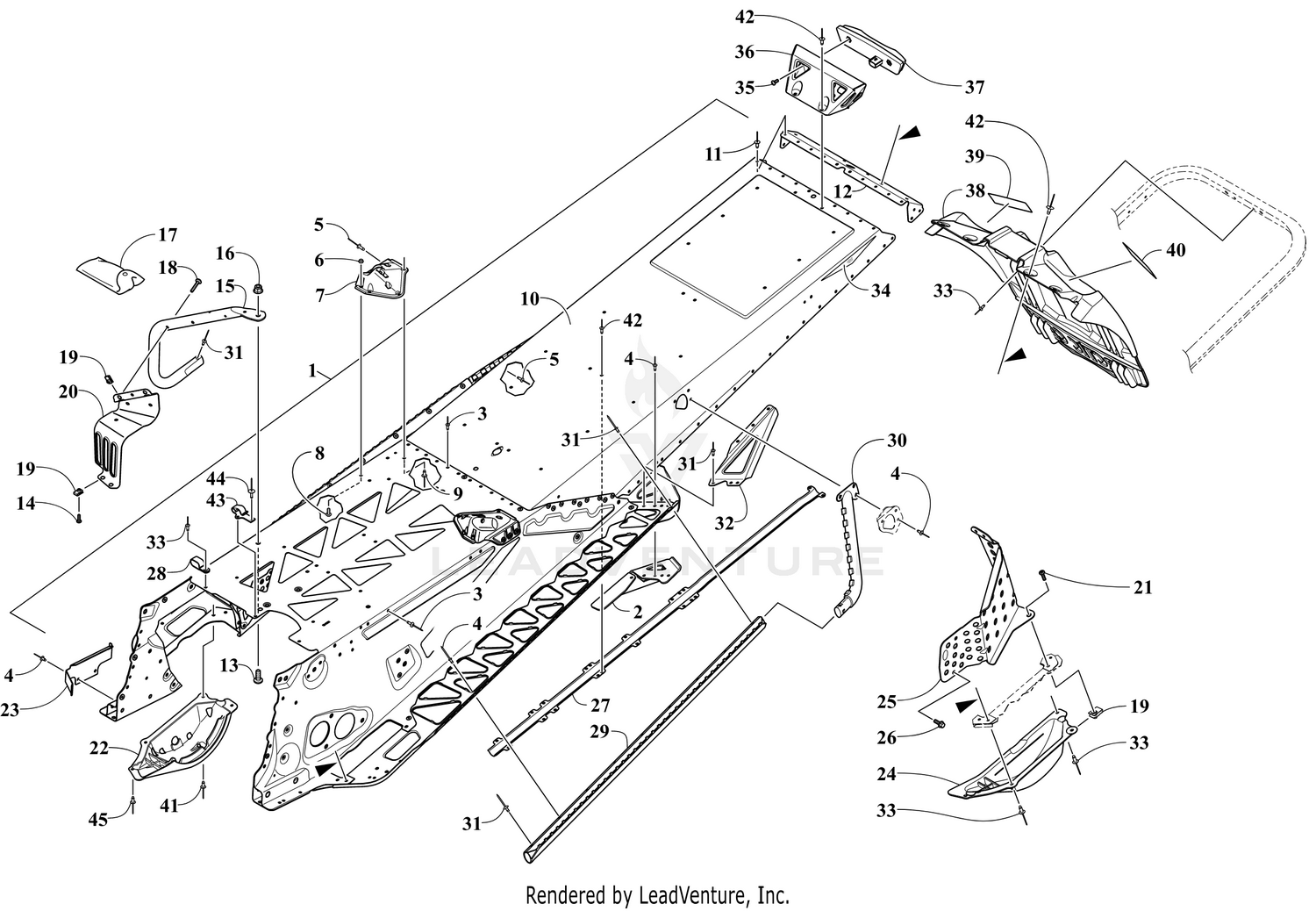

TUNNEL AND SNOWFLAP ASSEMBLY [110115]

Parts (49)

Ref	Part Number	Description
2	2707-286	Bracket, Mounting - Suspension - Right - Black Price: $26.95
2	2707-287	Bracket, Mounting - Suspension - Left - Black Price: $26.95
3	8060-682	Rivet Price: $0.24
4	8060-686	Rivet - Zinc Price: $0.46
5	1623-206	Rivet Price: $2.30
6	8422-502	Nut, Lock Price: $0.48
7	1707-692	Bracket, Mounting - Rear Spar - Right - Black Price: $33.95
7	1707-693	Bracket, Mounting - Rear Spar - Left - Black Price: $41.95
8	8475-512	Screw, Machine Not Available Price:
9	1623-257	Rivet Price: $2.30
10	3707-162	Tunnel, Rear - Black Price: $234.95
11	8060-482	Rivet Price: $0.48
12	1707-725	End Cap, Tunnel - Black Price: $41.95
13	8476-820	Screw, Machine Price: $1.08
14	8470-516	Screw, Machine Price: $0.35
15	2707-870	Support, Footrest - Right - Black Price: $68.95
15	2707-871	Support, Footrest - Left - Black Price: $68.95
16	8427-802	Nut, Lock Price: $0.58
17	0744-104	Kit, Tool Price: $17.79
18	8468-535	Screw, Machine Price: $1.07
19	1623-637	Clip, U-Nut Price: $2.61
20	2707-658	Footrest - Right - Black Price: $35.95
20	2707-659	Footrest - Left - Black Price: $31.95
21	8470-520	Screw, Machine Price: $0.48
22	1607-646	Protector, Chain Case Price: $18.13
23	0608-705	Bracket, Routing - Oil Line Price: $14.49
24	1607-645	Protector, Brake Disc Price: $18.13
25	2707-904	Shield, Brake Disc - Black Price: $65.95
26	8408-613	Screw, Cap Price: $1.66
27	0630-316	Protector, Harness - Taillight Extension Price: $33.95
28	1623-762	Clamp, Routing Price: $8.43
29	1707-697	Roll, Tunnel - Black Price: $60.95
30	1707-700	Gusset, Tunnel Roll - Right - Black Price: $31.95
30	1707-701	Gusset, Tunnel Roll - Left - Black Price: $31.95
31	1623-241	Rivet Price: $2.05
32	2707-288	Gusset, Running Board - Right - Black Price: $34.95
32	2707-289	Gusset, Running Board - Left - Black Price: $34.95
33	8061-706	Rivet Price: $1.07
34	8621-870	Decal, Reflector - Red Price: $6.26
35	8470-510	Screw, Machine Price: $0.71
36	0730-227	Bracket, Mounting - Taillight - Black Price: $41.95
37	0609-898	Taillight, LED Price: $70.95
38	6606-394	Snowflap Price: $109.95
39	5611-852	Decal, Warning - Towing (French) Price: $2.54
40	5611-853	Decal, Warning - Towing (English) Price: $2.81
41	8061-708	Rivet Price: $1.08
42	8060-702	Rivet - Black Price: $0.35
43	0645-709	Clip, Routing Price: $13.28
44	8060-706	Rivet Price: $0.46
