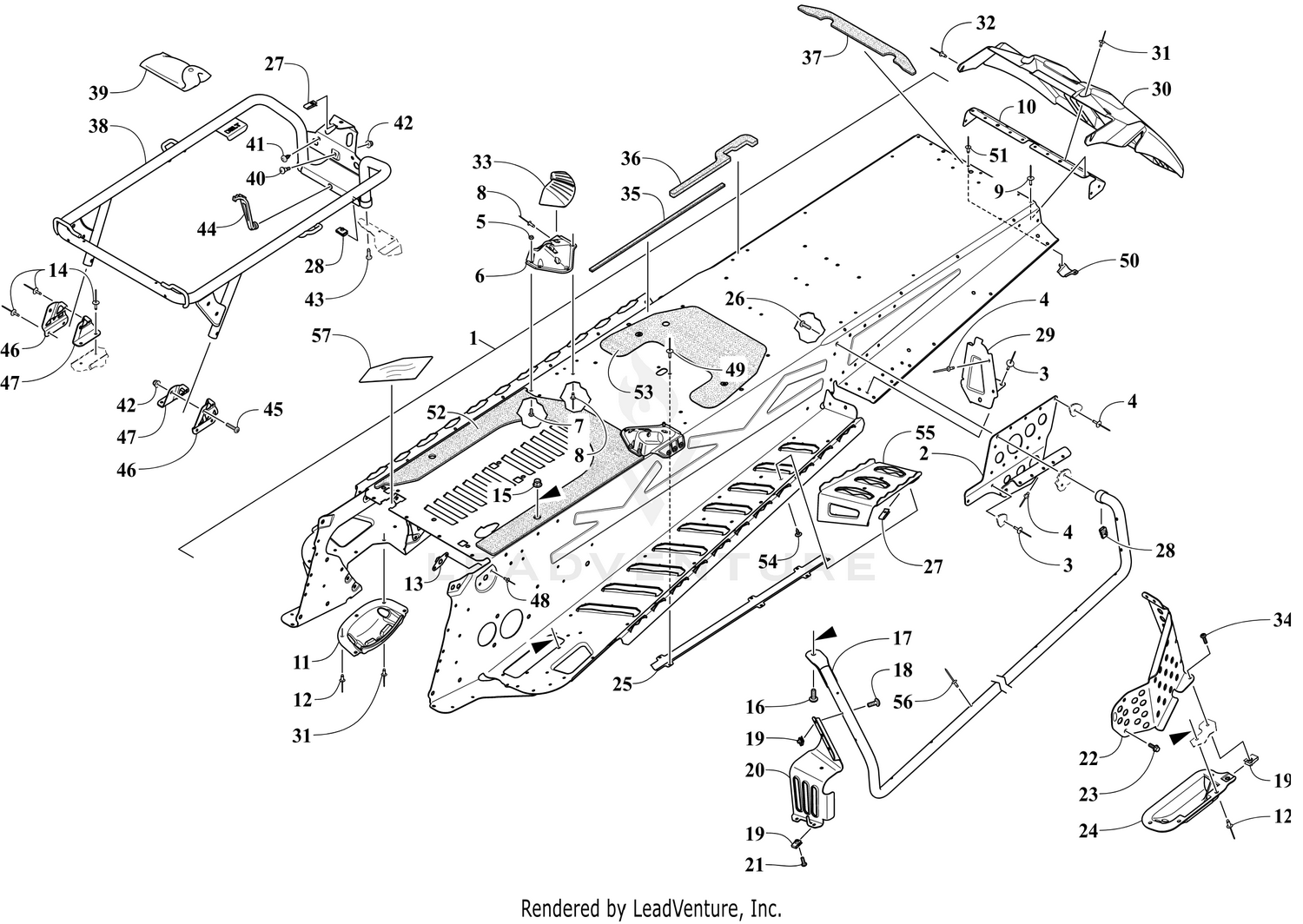

TUNNEL AND REAR RACK ASSEMBLY [111325]

Parts (65)

Ref	Part Number	Description
2	2707-090	Bracket, Mounting - Suspension - Right - Black Price: $52.95
2	2707-091	Bracket, Mounting - Suspension - Left - Black Price: $52.95
3	8060-686	Rivet - Zinc Price: $0.46
4	1623-241	Rivet Price: $2.05
5	8422-502	Nut, Lock Price: $0.48
6	1707-692	Bracket, Mounting - Rear Spar - Right - Black Price: $33.95
6	1707-693	Bracket, Mounting - Rear Spar - Left - Black Price: $41.95
7	8475-512	Screw, Machine Not Available Price:
8	1623-257	Rivet Price: $2.30
9	8060-482	Rivet Price: $0.48
10	2707-633	End Cap, Tunnel - Black Price: $47.95
11	1607-109	Protector, Chain Case Price: $5.90
12	8061-708	Rivet Price: $1.08
13	0608-631	Plate, Retaining Price: $30.95
14	8060-706	Rivet Price: $0.46
15	8427-802	Nut, Lock Price: $0.58
16	8476-820	Screw, Machine Price: $1.08
17	2707-858	Support, Footrest - Right - Black Price: $237.95
17	2707-859	Support, Footrest - Left - Black Price: $237.95
18	8468-535	Screw, Machine Price: $1.07
19	1623-637	Clip, U-Nut Price: $2.61
20	1707-556	Footrest - Right - Black Price: $31.95
20	1707-557	Footrest - Left - Black Price: $31.95
21	8470-516	Screw, Machine Price: $0.35
22	1707-955	Shield, Brake Disc - Black Price: $45.95
23	8408-613	Screw, Cap Price: $1.66
24	0607-351	Protector, Brake Disc Price: $13.28
25	0630-383	Protector, Harness - Taillight Extension Price: $18.13
26	8477-620	Screw, Machine Price: $0.58
27	1623-030	Clip, U-Nut Price: $1.08
28	0423-577	Clip, U-Nut Price: $0.46
29	2707-636	Close Off, Running Board - Right - Black Price: $53.95
29	2707-637	Close Off, Running Board - Left - Black Price: $53.95
30	6606-486	Snowflap Price: $35.95
31	8061-706	Rivet Price: $1.07
32	8061-506	Rivet Price: $1.07
33	6606-664	Support, Gas Tank - Right Price: $21.77
33	6606-665	Support, Gas Tank - Left Price: $21.77
34	8470-520	Screw, Machine Price: $0.48
35	0617-743	Foam, Side Panel Price: $7.23
36	0617-748	Foam, Rack - Right Price: $21.77
36	0617-749	Foam, Rack - Left Price: $21.77
37	0617-744	Foam, Fascia - Rear Price: $13.28
38	5706-635	Rack, Rear - Black Price: $592.95
39	0744-101	Kit, Tool Price: Call Us
40	0423-356	SCREW, SHOULDER-M6-1.0 X 22 RIE BLK Price: $2.39
41	2623-017	Screw, Self-Tapping Price: $1.45
42	8427-602	Nut, Hex Price: $0.23
43	2623-059	Screw, Machine Price: $2.17
44	6606-392	Strap, Hold Down Price: $3.02
45	8468-635	Screw, Machine Price: $3.38
46	5706-450	Bracket, Mounting - Rack - Outer - Right - Black Price: $47.95
46	5706-451	Bracket, Mounting - Rack - Outer - Left - Black Price: $47.95
47	5706-448	Bracket, Mounting - Rack - Inner - Right - Black Price: $47.95
47	5706-449	Bracket, Mounting - Rack - Inner - Left - Black Price: $47.95
48	8060-688	Rivet - Zinc Price: $0.48
49	8060-702	Rivet - Black Price: $0.35
50	0630-292	Protector, Taillight Harness Price: $16.92
51	8060-504	Rivet Price: $0.35
52	0617-781	Seal, Foam Price: $38.95
53	7606-436	Pad, Fuel Tank Price: $25.95
54	2623-166	Screw, Self-Tapping Price: $1.66
55	1707-878	Footrest, Passenger - Right - Black Price: $53.95
55	1707-879	Footrest, Passenger - Left - Black Price: $53.95
56	8060-686	Rivet - Zinc Price: $0.46
