| Ref | Part Number | Description |
|---|
| 2 |
2707-304 |
Bracket, Shock Mount - Upper Right - Black Price: $113.95 |
| 2 |
2707-305 |
Bracket, Shock Mount - Upper Left - Black Price: $113.95 |
| 3 |
0423-538 |
Screw, Self-Tapping Price: $0.71 |
| 4 |
0423-577 |
Clip, U-Nut Price: $0.46 |
| 5 |
2612-707 |
Tab, Spring Price: $3.21 |
| 6 |
1623-683 |
Screw, Self-Tapping Price: $1.32 |
| 7 |
1607-561 |
Gusset, A-Arm Mounting Bracket Price: $1.92 |
| 8 |
8413-617 |
Screw, Cap Price: $1.32 |
| 9 |
1607-233 |
Bracket, Mounting - Upper A-Arm Price: $16.92 |
| 10 |
1623-241 |
Rivet Price: $2.05 |
| 11 |
2623-290 |
Screw, Self-Tapping Price: $0.71 |
| 12 |
1707-568 |
Panel, Close-Off Price: $6.06 |
| 13 |
8471-616 |
Screw, Machine Price: $0.71 |
| 14 |
1605-028 |
Boot, Steering - Right Price: $36.95 |
| 14 |
1605-029 |
Boot, Steering - Left Price: $36.95 |
| 15 |
0623-362 |
Rivet, Reinstallable Price: $0.71 |
| 17 |
0423-391 |
Insert Price: $3.88 |
| 18 |
1605-057 |
Bearing Price: $9.64 |
| 19 |
8427-802 |
Nut, Lock Price: $0.58 |
| 20 |
8427-602 |
Nut, Hex Price: $0.23 |
| 21 |
1607-577 |
Belly Pan - Center Price: $43.95 |
| 22 |
8060-686 |
Rivet - Zinc Price: $0.46 |
| 23 |
8468-620 |
Screw, Machine Price: $0.71 |
| 24 |
1623-052 |
Clip, U-Nut Price: $1.08 |
| 25 |
8468-616 |
Screw, Machine Price: $0.71 |
| 27 |
0607-351 |
Protector, Brake Disc Price: $13.28 |
| 28 |
8470-516 |
Screw, Machine Price: $0.35 |
| 29 |
2623-194 |
Screw, Shoulder Price: $2.30 |
| 30 |
1623-637 |
Clip, U-Nut Price: $2.61 |
| 31 |
2623-164 |
Screw, Self-Tapping Price: $1.53 |
| 32 |
2707-658 |
Footrest - Right - Black Price: $35.95 |
| 32 |
2707-659 |
Footrest - Left - Black Price: $31.95 |
| 33 |
4707-060 |
Shield, Brake Disc - Black Price: $52.95 |
| 34 |
8470-520 |
Screw, Machine Price: $0.48 |
| 35 |
3707-858 |
Tube-Right Price: $68.84 |
| 35 |
3707-859 |
Tube-Left Price: $68.84 |
| 36 |
8476-835 |
Screw, Cap Price: $1.70 |
| 37 |
8468-535 |
Screw, Machine Price: $1.07 |
| 38 |
8427-802 |
Nut, Lock Price: $0.58 |
| 39 |
1707-692 |
Bracket, Mounting - Rear Spar - Right - Black Price: $33.95 |
| 39 |
1707-693 |
Bracket, Mounting - Rear Spar - Left - Black Price: $41.95 |
| 40 |
8422-502 |
Nut, Lock Price: $0.48 |
| 41 |
8475-512 |
Screw, Machine Not Available Price: |
| 42 |
1607-063 |
Panel, Access Price: $13.28 |
| 43 |
8060-702 |
Rivet - Black Price: $0.35 |
| 44 |
0630-339 |
Protector, Taillight Harness Price: $16.92 |
| 45 |
4707-084 |
End Cap, Tunnel Price: $40.95 |
| 46 |
6716-258 |
Snowflap Price: $30.95 |
| 47 |
5611-852 |
Decal, Warning - Towing (French) Price: $2.54 |
| 48 |
5611-853 |
Decal, Warning - Towing (English) Price: $2.81 |
| 49 |
8061-706 |
Rivet Price: $1.07 |
| 50 |
0730-227 |
Bracket, Mounting - Taillight - Black Price: $41.95 |
| 51 |
1607-109 |
Protector, Chain Case Price: $5.90 |
| 52 |
3707-862 |
Bracket, Mounting - Suspension - Right - Black Price: $146.95 |
| 52 |
3707-863 |
Bracket, Mounting - Suspension - Left - Black Price: $146.95 |
| 53 |
6606-877 |
Pad, Tank Price: $3.14 |
| 54 |
2623-304 |
Plug Price: $0.65 |
| 55 |
2623-296 |
Insert Price: $4.11 |
| 56 |
8408-613 |
Screw, Cap Price: $1.66 |
| 57 |
0123-788 |
Tie, Cable - 8 in Price: $0.23 |
| 58 |
0608-705 |
Bracket, Routing - Oil Line Price: $14.49 |
| 59 |
1623-130 |
Rivet Price: $1.80 |
| 60 |
2607-102 |
Gusset, Support - Tunnel - Right Price: $8.43 |
| 60 |
2607-103 |
Gusset, Support - Tunnel - Left Price: $8.43 |
| 61 |
8477-516 |
Screw, Machine Price: $0.71 |
| 62 |
2623-266 |
Washer, Flat Price: $1.66 |
| 63 |
8427-502 |
Nut, Lock Price: $1.07 |
| 64 |
6606-819 |
Reflector - Amber Price: $19.35 |
| 65 |
8060-706 |
Rivet Price: $0.46 |

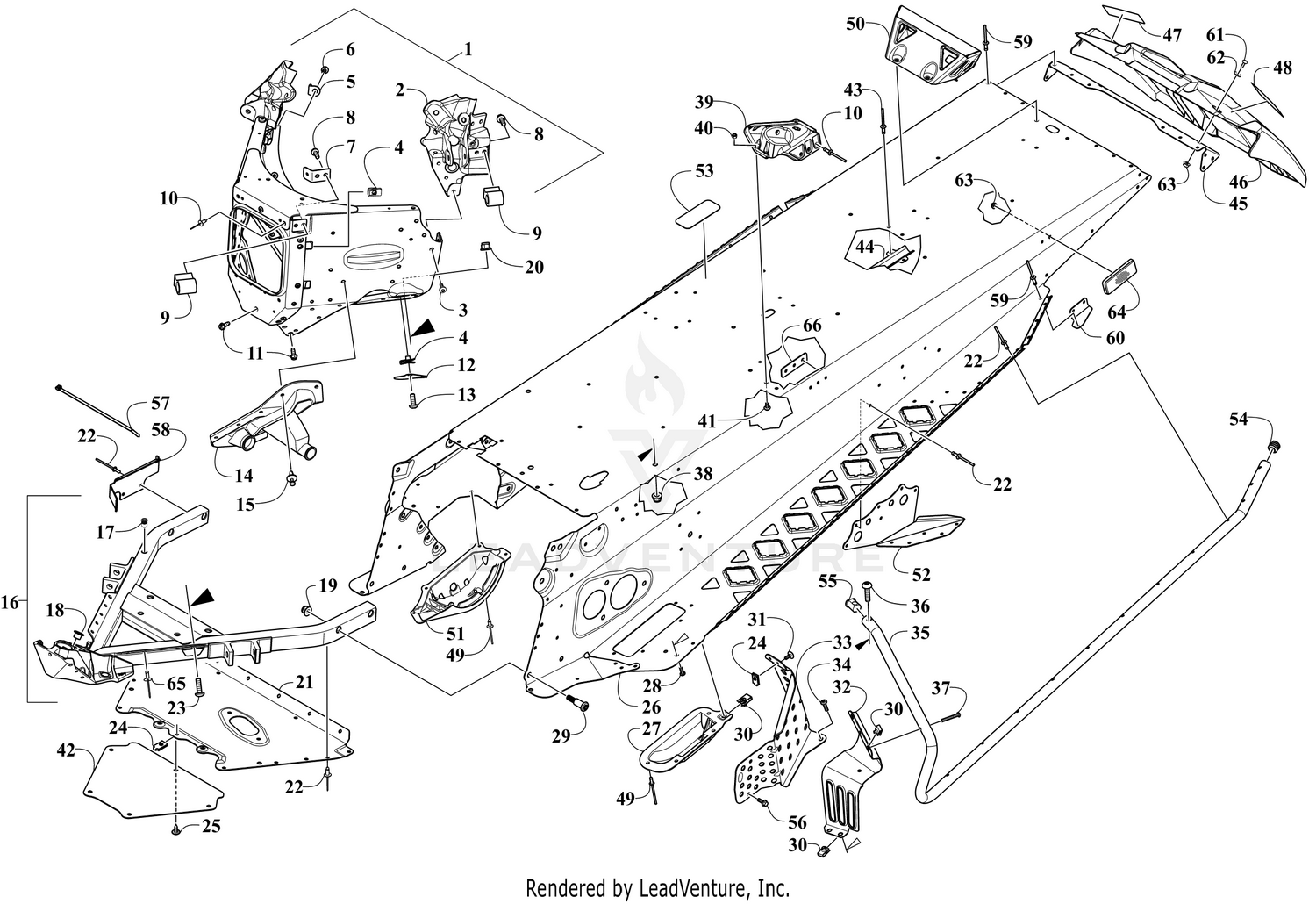

![CHASSIS ASSEMBLY [109253]](https://cdn.datamanager.arinet.com/image/ARCT/b9a172b2-25b3-4560-b93e-a6bf88333570/Max)
