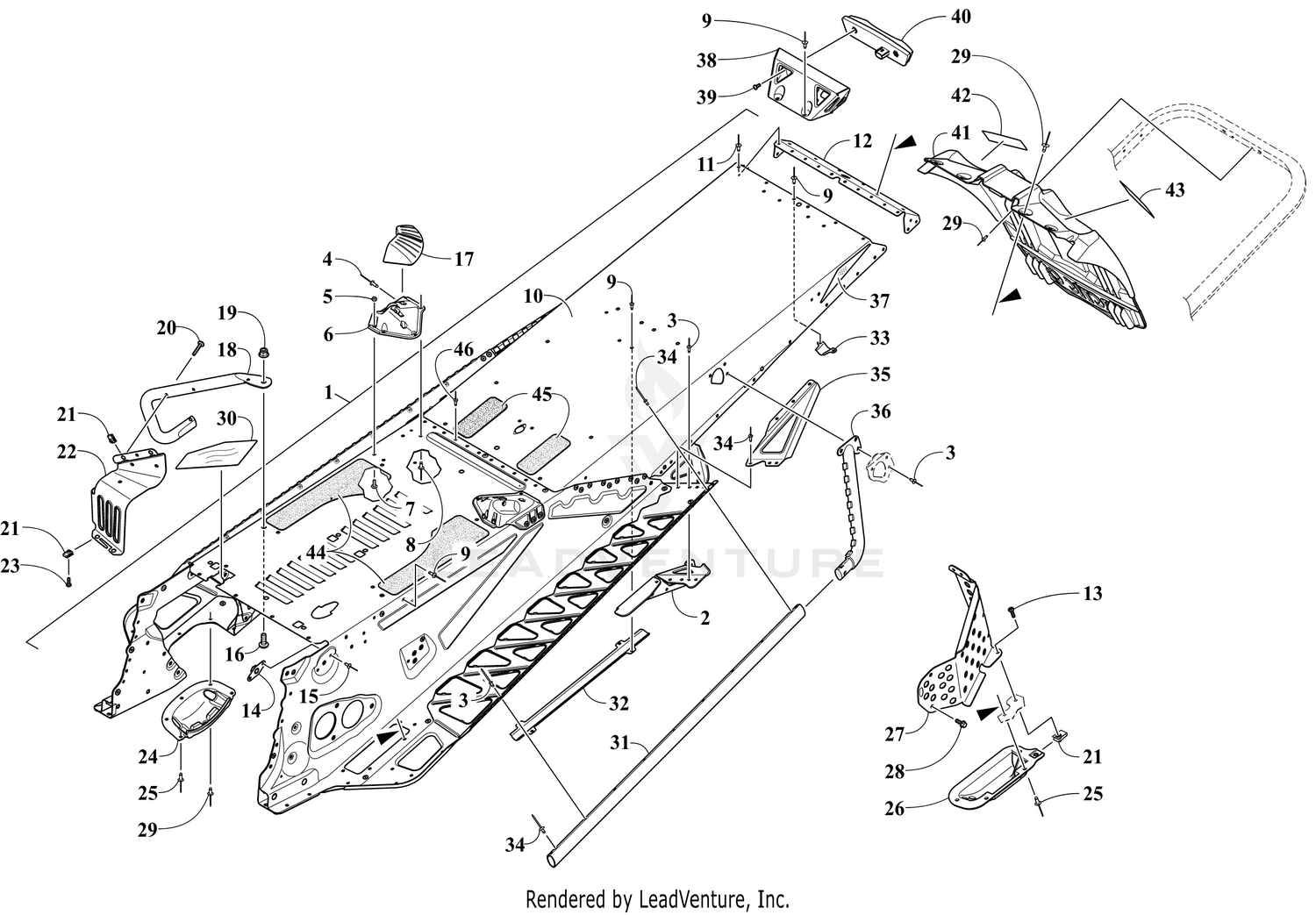

TUNNEL AND SNOWFLAP ASSEMBLY [111302]

Ref	Part Number	Description
2	2707-244	Bracket, Mounting - Suspension - Right - Black Price: $28.95
2	2707-245	Bracket, Mounting - Suspension - Left - Black Price: $28.95
3	8060-686	Rivet - Zinc Price: $0.46
4	1623-206	Rivet Price: $2.30
5	8422-502	Nut, Lock Price: $0.48
6	1707-692	Bracket, Mounting - Rear Spar - Right - Black Price: $33.95
6	1707-693	Bracket, Mounting - Rear Spar - Left - Black Price: $41.95
7	8475-512	Screw, Machine Not Available Price:
8	1623-257	Rivet Price: $2.30
9	8060-702	Rivet - Black Price: $0.35
10	2707-939	Tunnel, Rear - Black Price: $234.95
11	8060-482	Rivet Price: $0.48
12	1707-725	End Cap, Tunnel - Black Price: $41.95
13	8470-520	Screw, Machine Price: $0.48
14	0608-631	Plate, Retaining Price: $30.95
15	8060-688	Rivet - Zinc Price: $0.48
16	8476-820	Screw, Machine Price: $1.08
17	6606-664	Support, Gas Tank - Right Price: $21.77
17	6606-665	Support, Gas Tank - Left Price: $21.77
18	2707-684	Support, Footrest - Right - Black Price: $63.95
18	2707-685	Support, Footrest - Left - Black Price: $63.95
