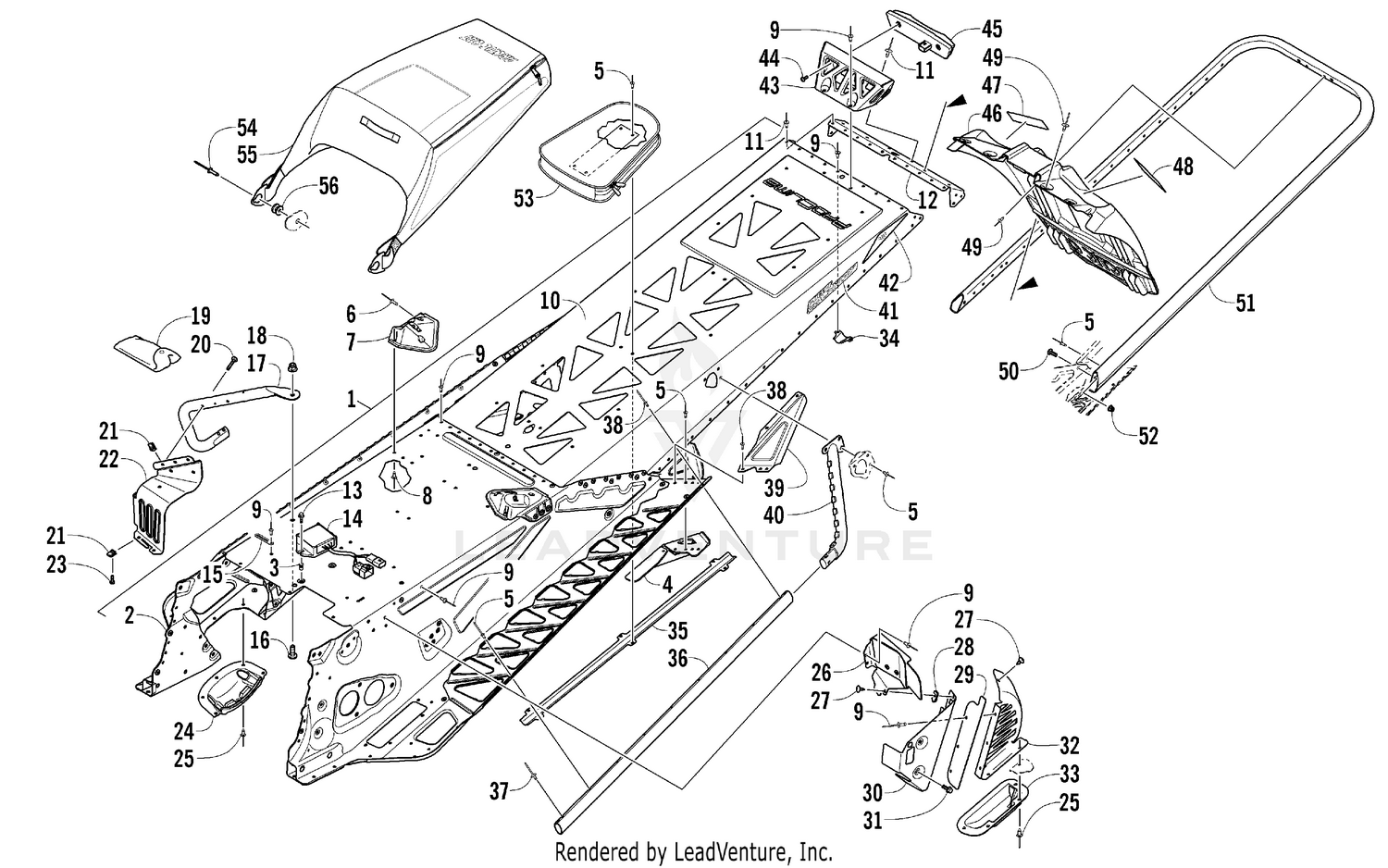

TUNNEL, REAR BUMPER, AND SNOWFLAP ASSEMBLY [96821]

Parts (57)

Ref	Part Number	Description
3	1623-797	Insert Price: $3.32
4	2707-244	Bracket, Mounting - Suspension - Right - Black Price: $28.95
4	2707-245	Bracket, Mounting - Suspension - Left - Black Price: $28.95
5	8060-706	Rivet Price: $0.46
6	1623-206	Rivet Price: $2.30
7	1707-692	Bracket, Mounting - Rear Spar - Right - Black Price: $33.95
7	1707-693	Bracket, Mounting - Rear Spar - Left - Black Price: $41.95
8	1623-257	Rivet Price: $2.30
9	8060-702	Rivet - Black Price: $0.35
10	1707-724	Tunnel, Rear - Black Price: $214.95
11	8060-504	Rivet Price: $0.35
12	1707-725	End Cap, Tunnel - Black Price: $41.95
13	8408-516	Screw, Cap Price: $1.92
14	0630-288	Regulator, Voltage Price: $193.95
15	1623-984	Clamp, Routing Price: $7.08
16	8476-820	Screw, Machine Price: $1.08
17	1707-454	Support, Footrest - Right Price: $71.95
17	1707-455	Support, Footrest - Left Price: $71.95
18	8427-802	Nut, Lock Price: $0.58
19	0744-064	Kit, Tool Price: $78.95
20	8468-536	Screw, Machine Price: $1.92
21	1623-637	Clip, U-Nut Price: $2.61
22	1707-556	Footrest - Right - Black Price: $31.95
22	1707-557	Footrest - Left - Black Price: $31.95
23	8475-512	Screw, Machine Not Available Price:
24	1607-109	Protector, Chain Case Price: $5.90
25	8061-708	Rivet Price: $1.08
26	1702-278	Mount, Clutch Guard Price: $33.95
27	1623-129	Screw, Self-Tapping Price: $0.29
28	1623-052	Clip, U-Nut Price: $1.08
29	1707-639	Shield, Brake Disc - Center - Black Price: $14.49
30	1607-118	Shield, Brake Disc - Front Price: $38.95
31	8408-613	Screw, Cap Price: $1.66
32	1707-563	Shield, Brake Disc - Rear - Black Price: $59.95
33	0607-351	Protector, Brake Disc Price: $13.28
34	0630-292	Protector, Taillight Harness Price: $16.92
35	0630-307	Protector, Taillight Harness Price: $19.35
36	1707-697	Roll, Tunnel - Black Price: $60.95
37	1623-130	Rivet Price: $1.80
38	1623-241	Rivet Price: $2.05
39	1707-698	Gusset, Running Board - Right - Black Price: $30.95
39	1707-699	Gusset, Running Board - Left - Black Price: $30.95
40	1707-700	Gusset, Tunnel Roll - Right - Black Price: $31.95
40	1707-701	Gusset, Tunnel Roll - Left - Black Price: $31.95
41	9611-652	Decal, Tunnel - "High Country" Price: $22.41
42	0621-990	Decal, Reflector - Red Price: $15.42
43	0730-164	Bracket, Mounting - Taillight - Black Price: $23.95
44	8470-512	Screw, Machine Price: $0.29
45	0609-898	Taillight, LED Price: $70.95
46	6606-394	Snowflap Price: $109.95
49	8061-706	Rivet Price: $1.07
50	8476-620	Screw, Machine Price: $0.48
51	1707-500	Bumper, Rear Black Price: $321.95
52	8427-602	Nut, Hex Price: $0.23
53	6606-615	Bag, Belt Price: $49.95
54	8060-630	Rivet Price: $1.32
55	6606-600	Saddlebag Price: $242.95
