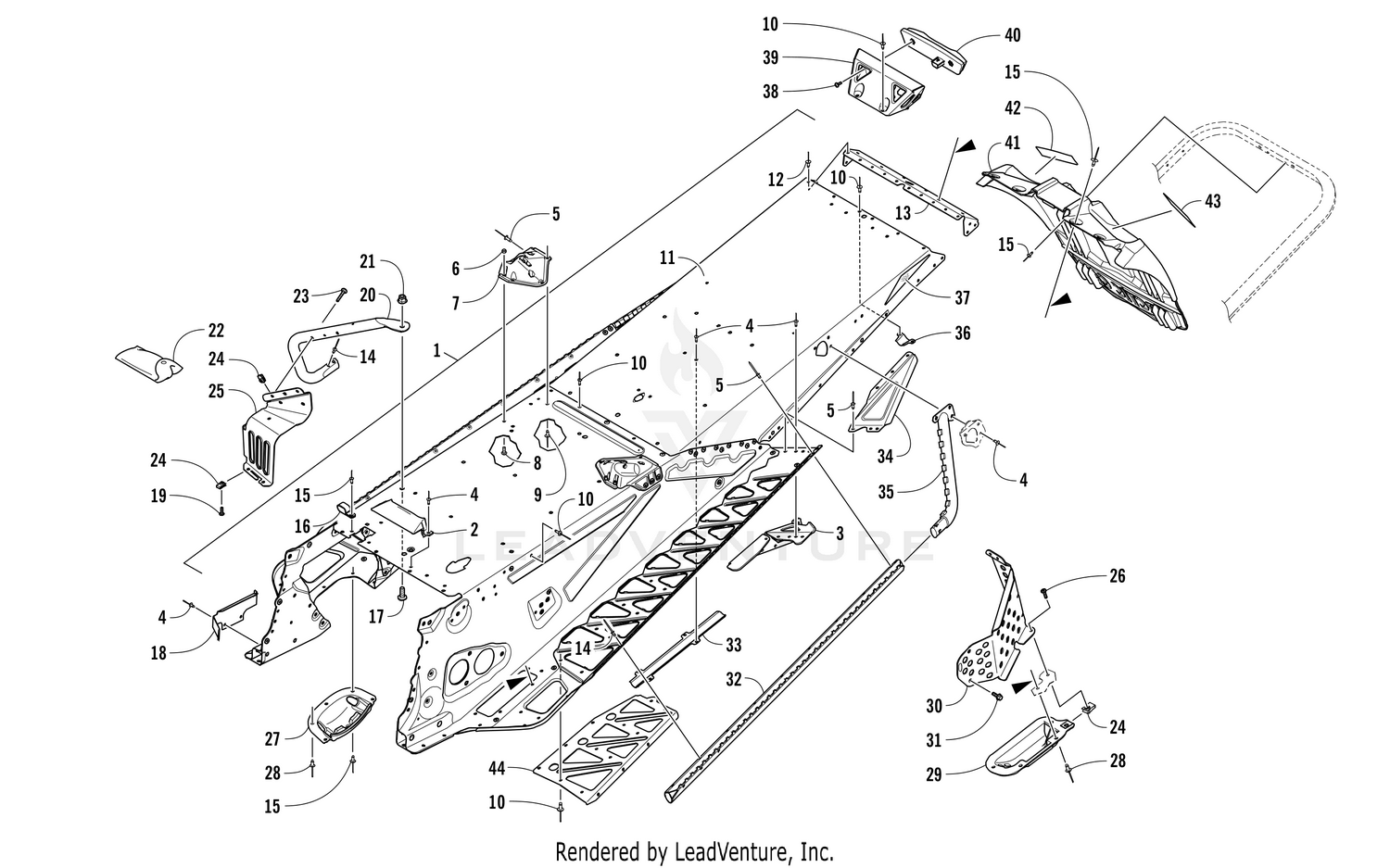

TUNNEL AND SNOWFLAP ASSEMBLY [105851]

Parts (49)

Ref	Part Number	Description
2	0630-353	Protector, Harness Price: $4.11
3	2707-644	Bracket, Mounting - Suspension - Right - Black Price: $31.95
3	2707-645	Bracket, Mounting - Suspension - Left - Black Price: $31.95
4	8060-706	Rivet Price: $0.46
5	1623-241	Rivet Price: $2.05
6	8422-502	Nut, Lock Price: $0.48
7	1707-692	Bracket, Mounting - Rear Spar - Right - Black Price: $33.95
7	1707-693	Bracket, Mounting - Rear Spar - Left - Black Price: $41.95
8	8475-512	Screw, Machine Not Available Price:
9	1623-257	Rivet Price: $2.30
10	8060-702	Rivet - Black Price: $0.35
11	2707-931	Tunnel, Rear - Black Price: $215.95
12	8060-504	Rivet Price: $0.35
13	1707-725	End Cap, Tunnel - Black Price: $41.95
14	1623-130	Rivet Price: $1.80
15	8061-706	Rivet Price: $1.07
16	1623-762	Clamp, Routing Price: $8.43
17	8476-820	Screw, Machine Price: $1.08
18	0608-705	Bracket, Routing - Oil Line Price: $14.49
19	8470-516	Screw, Machine Price: $0.35
20	2707-684	Support, Footrest - Right - Black Price: $63.95
20	2707-685	Support, Footrest - Left - Black Price: $63.95
21	8427-802	Nut, Lock Price: $0.58
22	0744-087	Kit, Tool Price: $90.14
23	8468-535	Screw, Machine Price: $1.07
24	1623-637	Clip, U-Nut Price: $2.61
25	1707-556	Footrest - Right - Black Price: $31.95
25	1707-557	Footrest - Left - Black Price: $31.95
26	8470-520	Screw, Machine Price: $0.48
27	1607-109	Protector, Chain Case Price: $5.90
28	8061-708	Rivet Price: $1.08
29	0607-351	Protector, Brake Disc Price: $13.28
30	2707-044	Shield, Brake Disc - Black Price: $48.95
31	8408-613	Screw, Cap Price: $1.66
32	1707-697	Roll, Tunnel - Black Price: $60.95
33	0630-338	Protector, Taillight Harness Price: $14.49
34	1707-698	Gusset, Running Board - Right - Black Price: $30.95
34	1707-699	Gusset, Running Board - Left - Black Price: $30.95
35	1707-700	Gusset, Tunnel Roll - Right - Black Price: $31.95
35	1707-701	Gusset, Tunnel Roll - Left - Black Price: $31.95
36	0630-292	Protector, Taillight Harness Price: $16.92
37	0621-990	Decal, Reflector - Red Price: $15.42
38	8470-510	Screw, Machine Price: $0.71
39	0730-227	Bracket, Mounting - Taillight - Black Price: $41.95
40	0609-898	Taillight, LED Price: $70.95
41	6606-394	Snowflap Price: $109.95
42	5611-852	Decal, Warning - Towing (French) Price: $2.54
43	5611-853	Decal, Warning - Towing (English) Price: $2.81
44	2707-172	Support, Running Board - Right - Black Price: $126.95
