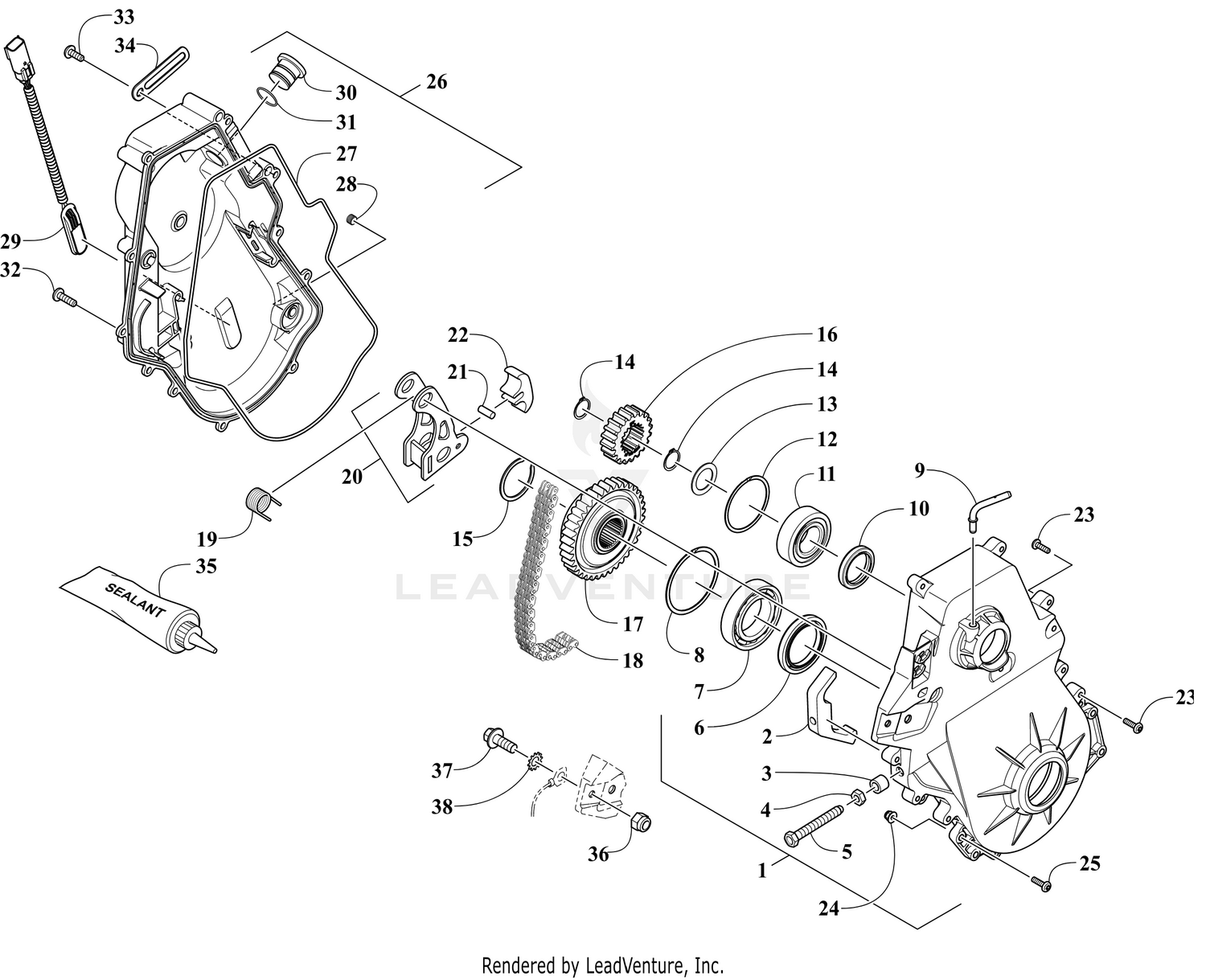

CHAIN CASE ASSEMBLY [108971]

Ref	Part Number	Description
2	2602-465	Plate, Ratchet Price: $82.95
3	2602-707	Spacer Price: $10.85
4	0123-150	Nut Price: $0.48
5	2602-735	Screw, Adjuster Price: $25.95
6	2602-172	Seal Price: $30.95
7	2602-281	Bearing Price: $14.49
8	2602-280	Ring, Retaining Price: $3.88
9	2602-641	Fitting, Elbow Price: $9.64
10	2602-204	Seal Price: $18.13
11	2602-734	Bearing Price: $21.77
12	2602-236	Ring, Retaining Price: $3.38
13	3602-028	Washer, Shim (.060 in.) Price: $1.92
14	1423-175	Ring, Retaining Price: $2.17
15	2602-629	Ring, Retaining Price: $2.91
16	3602-169	Sprocket - 20T (13 Wide) Price: $9.95
17	1702-403	Sprocket - 49T TOS Price: $686.95
18	2602-760	Chain - 90P (13 Wide) Price: $207.95
19	2602-544	Spring Price: $15.71
21	2602-513	Insert, Pad Price: $2.30
22	2602-466	Pad, Wear Price: $53.95
23	1623-814	Screw, Machine Price: $1.20
24	8427-602	Nut, Hex Price: $0.23
25	8476-625	Screw, Machine Price: $1.92
27	3602-079	Seal, Chain Case Price: $18.13
28	0801-002	Plug Price: $4.35
29	0730-172	Kit, Speedometer Sensor Price: $85.95
30	3602-305	Plug, Fill Price: $7.23
31	0830-185	O-Ring Price: $0.71
32	8468-625	Screw, Machine Price: $0.71
33	8475-512	Screw, Machine Not Available Price:
34	1623-984	Clamp, Routing Price: $7.08
35	1048-063	Sealant - 70 ml Price: $76.95
36	8422-602	Nut Price: $0.48
37	8408-616	Screw, Cap Price: $0.59
