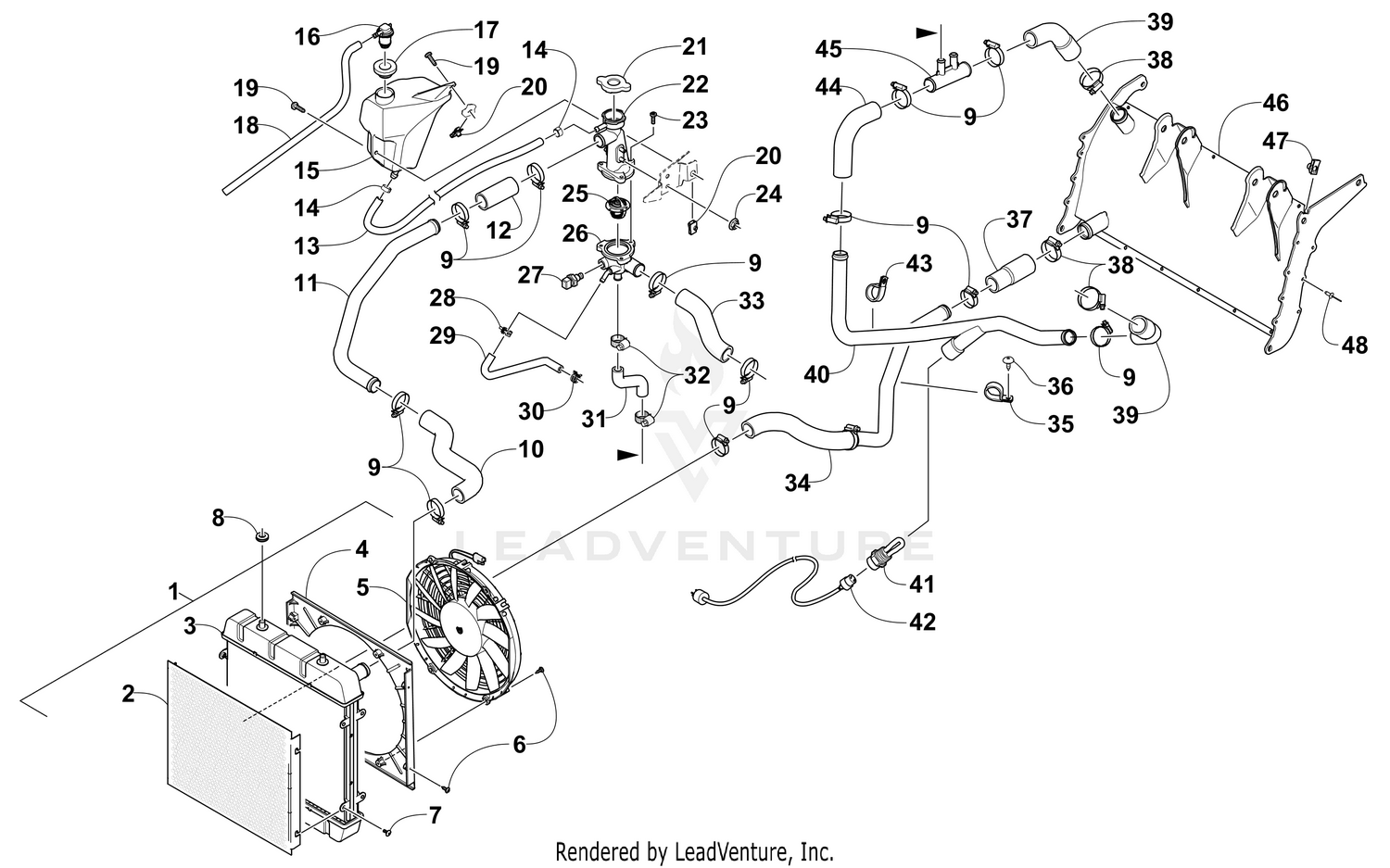

COOLING ASSEMBLY [105779]

Parts (47)

Ref	Part Number	Description
2	0413-007	SCREEN,RADIATOR Price: $98.95
3	0613-148	Radiator Price: $459.95
4	0413-203	Shroud, Fan Price: $129.95
5	0413-123	Fan, Radiator Price: $230.95
6	0623-378	SCREW,SELF TAP-PHTRH #8-32 X .50 AB Z&Y Price: $0.86
7	8475-512	Screw, Machine Not Available Price:
8	0423-030	GROMMET(LV 11378) Price: $4.60
9	2623-088	Clamp, Hose Price: $3.14
10	0610-978	Hose, Coolant Price: $7.95
11	0613-147	Tube, Coolant Price: $24.20
12	0610-840	Hose Price: $13.28
13	0610-970	Hose - 25 ft Price: $19.95
14	0610-563	Clamp, Hose Price: $1.89
15	0613-149	Coolant Tank - Overflow Price: $25.95
16	1670-787	Valve, Check Price: $38.95
17	0613-167	Stopper Price: $1.69
18	6101-001	Hose - 100 ft Price: $538.95
18	6101-009	Hose - 50 ft Price: $169.95
19	8408-617	Screw, Cap Price: $1.80
20	0423-577	Clip, U-Nut Price: $0.46
21	2606-284	Cap Price: $35.95
22	0613-080	Neck, Filler Price: $22.99
23	8470-520	Screw, Machine Price: $0.48
24	0423-357	NUT, STAMPED-1/4" (SD 25001 SOH) Price: $1.08
25	0613-078	Thermostat Price: $70.95
26	0713-160	Housing, Thermostat - Assembly Price: $90.95
27	0824-051	Sensor, Coolant Temp Price: $20.56
28	0610-419	CLAMP, HOSE (14.5), 12.0 MM TO 14.5 MM Price: $2.02
29	0610-950	Hose, Coolant Price: $47.47
30	1623-277	Clamp, Hose Price: $5.09
31	0610-949	Hose Price: $50.95
32	2623-062	Clamp, Hose Price: $3.26
33	0610-945	Hose Price: $17.92
34	0713-125	Tube, Coolant Price: $71.95
35	0423-044	Clamp, Tube-1" Price: $0.79
36	1623-129	Screw, Self-Tapping Price: $0.29
37	0610-948	Hose, Coolant Price: $50.95
38	1623-981	Clamp, Hose Price: $3.38
39	0610-944	Hose, Coolant Price: $45.95
40	0713-145	Tube, Coolant Price: $375.95
41	0609-877	Element, Heater Price: $241.95
42	0709-081	Harness, Heater Element Price: $265.95
43	1623-722	Clamp Price: $2.30
44	0610-866	Hose, Coolant - Coolant Tube/Heat Exchanger Price: $15.71
45	0613-089	Fitting, Double-T Price: $9.64
46	0713-152	Heat Exchanger Price: $621.95
47	1623-640	Clip, U-Nut Price: $3.63
