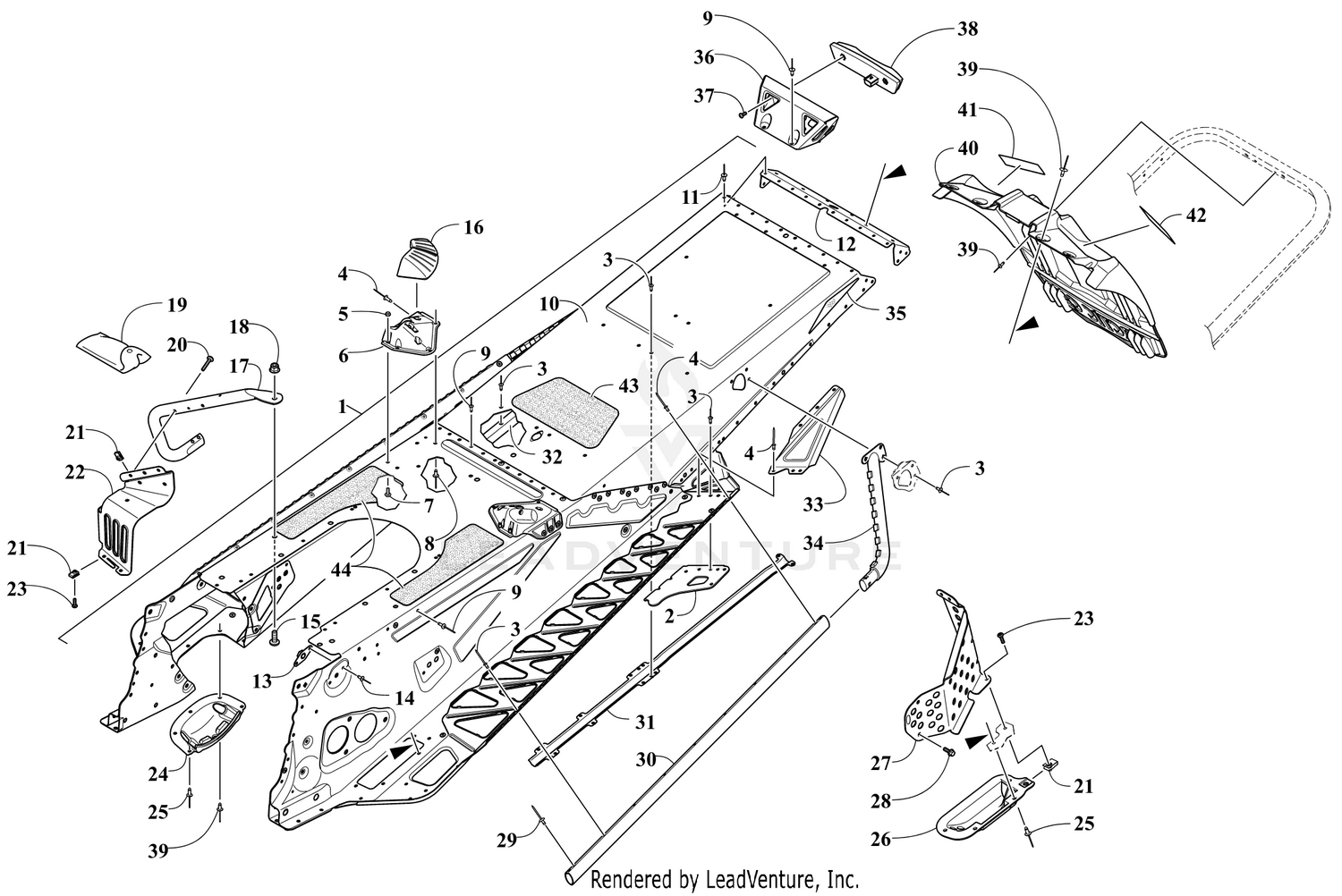

TUNNEL AND SNOWFLAP ASSEMBLY [106308]

Parts (50)

Ref	Part Number	Description
2	1707-916	Bracket, Mounting - Suspension - Right - Black Price: $26.95
2	1707-917	Bracket, Mounting - Suspension - Left - Black Price: $26.95
3	8060-706	Rivet Price: $0.46
4	1623-241	Rivet Price: $2.05
5	8422-502	Nut, Lock Price: $0.48
6	1707-692	Bracket, Mounting - Rear Spar - Right - Black Price: $33.95
6	1707-693	Bracket, Mounting - Rear Spar - Left - Black Price: $41.95
7	8475-512	Screw, Machine Not Available Price:
8	1623-257	Rivet Price: $2.30
9	8060-682	Rivet Price: $0.24
10	2707-395	Tunnel, Rear - Black Price: $234.95
11	8060-482	Rivet Price: $0.48
12	1707-725	End Cap, Tunnel - Black Price: $41.95
13	0608-631	Plate, Retaining Price: $30.95
14	8060-688	Rivet - Zinc Price: $0.48
15	8476-820	Screw, Machine Price: $1.08
16	6606-664	Support, Gas Tank - Right Price: $21.77
16	6606-665	Support, Gas Tank - Left Price: $21.77
17	1707-454	Support, Footrest - Right Price: $71.95
17	1707-455	Support, Footrest - Left Price: $71.95
18	8427-802	Nut, Lock Price: $0.58
19	0744-064	Kit, Tool Price: $78.95
20	8468-535	Screw, Machine Price: $1.07
21	1623-637	Clip, U-Nut Price: $2.61
22	1707-556	Footrest - Right - Black Price: $31.95
22	1707-557	Footrest - Left - Black Price: $31.95
23	8470-516	Screw, Machine Price: $0.35
24	1607-109	Protector, Chain Case Price: $5.90
25	8061-708	Rivet Price: $1.08
26	0607-351	Protector, Brake Disc Price: $13.28
27	2707-044	Shield, Brake Disc - Black Price: $48.95
28	8408-613	Screw, Cap Price: $1.66
29	1623-130	Rivet Price: $1.80
30	1707-697	Roll, Tunnel - Black Price: $60.95
31	0630-315	Protector, Harness - Taillight Extension Price: $33.95
32	1607-706	Protector, Tunnel Price: $66.91
33	1707-698	Gusset, Running Board - Right - Black Price: $30.95
33	1707-699	Gusset, Running Board - Left - Black Price: $30.95
34	1707-700	Gusset, Tunnel Roll - Right - Black Price: $31.95
34	1707-701	Gusset, Tunnel Roll - Left - Black Price: $31.95
35	0621-990	Decal, Reflector - Red Price: $15.42
36	0630-328	Bracket, Mounting - Taillight Price: $30.95
37	8470-510	Screw, Machine Price: $0.71
38	0609-898	Taillight, LED Price: $70.95
39	8061-706	Rivet Price: $1.07
40	6606-394	Snowflap Price: $109.95
41	5611-853	Decal, Warning - Towing (English) Price: $2.81
42	5611-852	Decal, Warning - Towing (French) Price: $2.54
43	6606-816	Pad, Fuel Tank - Center Price: $13.28
44	6606-814	Pad, Fuel Tank - Right Price: $7.64
