518328749
Rear Profile This part replaces 518325645.

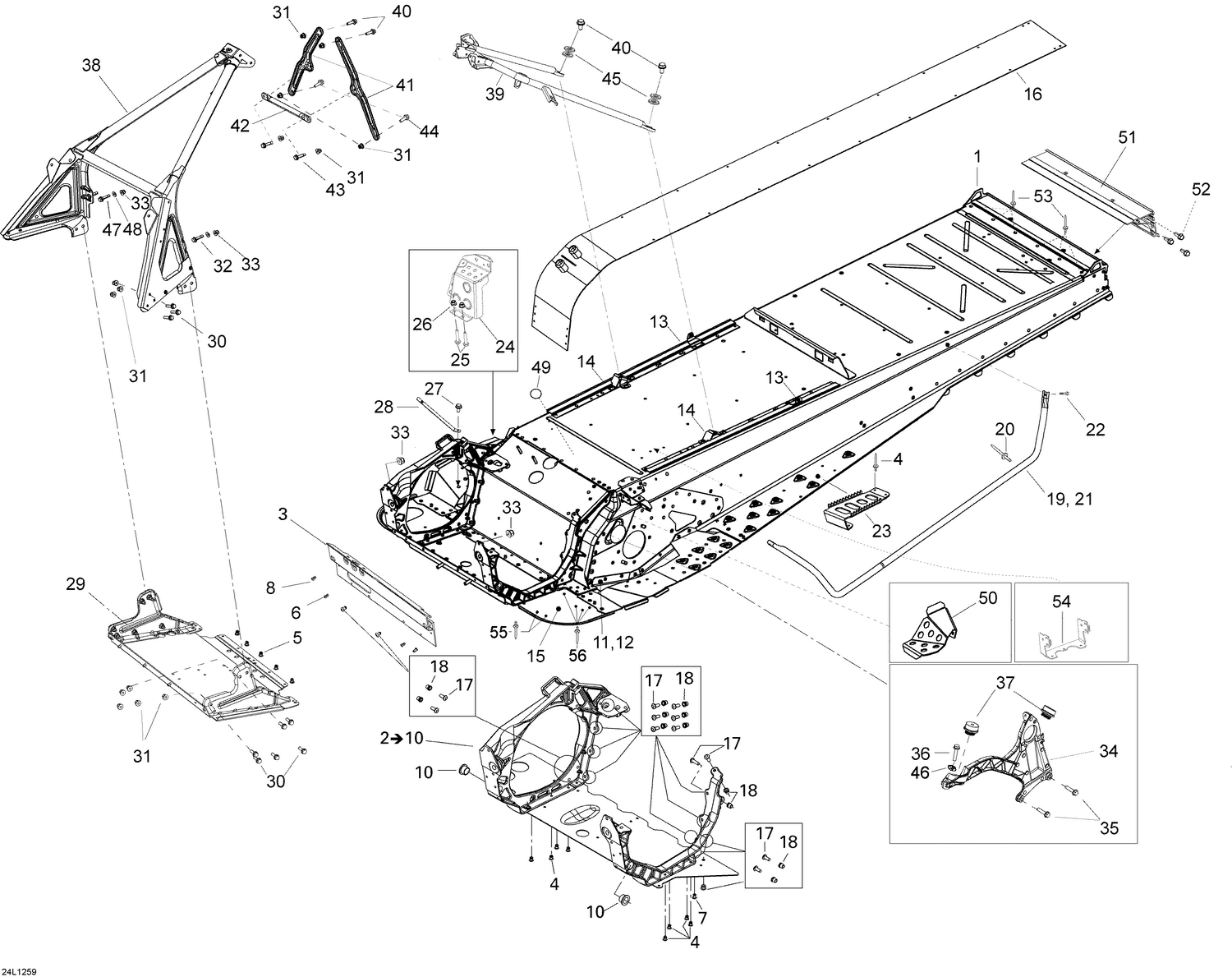

Схема сборки, где используется деталь
Used in (47 assemblies)
| Brand | Assembly | Path | Ref |
|---|---|---|---|
| LNX_EN_US | 09- Frame | Lynx / 2012 / YETI / 69 YETI 600 ACE, 2012 / 09- Frame | 51 |
| LNX_EN_US | 09- Frame | Lynx / 2013 / Ranger / 69 Ranger Alpine 1200 4-TEC, 2013 000LYDE00 / 09- Frame | 52 |
| LNX_EN_US | 09- Frame | Lynx / 2013 / YETI / 69 YETI 600 ACE, 2013 000LYDB00 / 09- Frame | 24 |
| LNX_EN_US | 09- Frame | Lynx / 2013 / YETI / 69 YETI Army 600 E-TEC, 2013 000LYDG00 / 09- Frame | 24 |
| LNX_EN_US | 09- Frame | Lynx / 2014 / Ranger / 69 Ranger Alpine 1200 4-TEC, 2014 000LYEE00 / 09- Frame | 52 |
| LNX_EN_US | 09- Frame | Lynx / 2014 / YETI / 69 YETI 600 ACE, 2014 000LYEB00 / 09- Frame | 23 |
| LNX_EN_US | 09- Frame | Lynx / 2014 / YETI / 69 YETI Army 600 E-TEC, 2014 000LYEG00 / 09- Frame | 24 |
| LNX_EN_US | 09- Frame | Lynx / 2015 / Ranger / 69 Ranger Alpine 1200 4-TEC, 2015 000LYFE00 / 09- Frame | 52 |
| LNX_EN_US | 09- Frame | Lynx / 2015 / YETI / 69 YETI 600 ACE, 2015 000LYFF00 000LYFK00 / 09- Frame | 26 |
| LNX_EN_US | 09- Frame | Lynx / 2015 / YETI / 69 YETI 900 ACE, 2015 000LYFB00 000LYFC00 / 09- Frame | 26 |
| LNX_EN_US | 09- Frame | Lynx / 2015 / YETI / 69 YETI Army 600 E-TEC, 2015 000LYFG00 / 09- Frame | 24 |
| LNX_EN_US | 09- Frame | Lynx / 2015 / YETI / 69 YETI Army 800R E-TEC, 2015 000LYFH00 / 09- Frame | 24 |
| LNX_EN_US | 09- Frame | Lynx / 2016 / Ranger / 69 Ranger (4-Stroke), 2016 000LCGA00 / 09- Frame | 24 |
| LNX_EN_US | 09- Frame | Lynx / 2016 / YETI / 69 YETI (2-Stroke), 2016 000LYGG00 000LYGH00 / 09- Frame | 24 |
| LNX_EN_US | 09- Frame | Lynx / 2016 / YETI / 69 YETI (4-Stroke), 2016 000LYGB00 / 09- Frame | 24 |
| LNX_EN_US | 09- Frame | Lynx / 2017 / Ranger / 69 Ranger ARMY LTD, 2017 000LCHC00 / 09- Frame | 10w |
| LNX_EN_US | 09- Frame | Lynx / 2017 / Ranger / 69 Ranger Alpine, 2017 000LCHA00 / 09- Frame | 24 |
| LNX_EN_US | 09- Frame | Lynx / 2017 / YETI / 69 YETI ARMY, 2017 000LYHG00 / 09- Frame | 24 |
| LNX_EN_US | 09- Frame | Lynx / 2017 / YETI / 69 YETI STD, 2017 000LYHB00 / 09- Frame | 24 |
| LNX_EN_US | 09- Frame 69RANGER - 1200 4-TEC | Lynx / 2018 / 69 Ranger Series / 69 Ranger 1200 4-TEC, 2018 000LCJA00 / 09- Fram | 24 |
| LNX_EN_US | 09- Frame 69RANGER - 800R E-TEC | Lynx / 2018 / 69 Ranger Series / 69 Ranger 800R E-TEC, 2018 000LCJC00 / 09- Fram | 24 |
| LNX_EN_US | 09- Frame 69RANGER - 900 ACE | Lynx / 2018 / 69 Ranger Series / 69 Ranger 900 ACE, 2018 000LCJB00 / 09- Frame 6 | 24 |
| LNX_EN_US | 09- Frame | Lynx / 2018 / YETI Series / YETI 600 HO E-TEC, 2018 000LYJG00 / 09- Frame | 24 |
| LNX_EN_US | 09- Frame - 69 Ranger | Lynx / 2019 / 005 - 69 Ranger Series / 001 - 69 Ranger 800R E-TEC, 2019 000LCKC0 | 10aq |
| LNX_EN_US | 09- Frame - 1200 4-TEC | Lynx / 2019 / 005 - 69 Ranger Series / 003 - 69 Ranger 1200 4-TEC, 2019 000LCKA0 | 10aq |
| LNX_EN_US | 09- Frame - 69 YETI - 600 E-TEC | Lynx / 2019 / 010 - 69 YETI Series / 001 - 69 YETI 600 E-TEC, 2019 000LYKG00 / 0 | 10aq |
| LNX_EN_US | 09- Frame 69 YETI - 600 E-TEC | Lynx / 2019 / 010 - 69 YETI Series / 001 - 69 YETI 600 E-TEC, 2019 000LYKG00 / 0 | 10aq |
| LNX_EN_US | 09- Frame - System | Lynx / 2020 / 004 - 69 Ranger Series / 001 - 69 RANGER 800R E-TEC, 2020 000LCLC0 | 10aq |
| LNX_EN_US | 09- Frame - System | Lynx / 2020 / 004 - 69 Ranger Series / 002 - 69 RANGER 900 ACE, 2020 000LCLB00 0 | 10aq |
| LNX_EN_US | 09- Frame - System | Lynx / 2020 / 004 - 69 Ranger Series / 003 - 69 RANGER 1200 4-TEC, 2020 000LCLA0 | 10aq |
| LNX_EN_US | 09- Frame - System - Army | Lynx / 2020 / 009 - 69 YETI Series / 001 - 69 YETI 600 E-TEC, 2020 000LYLG00 / 0 | 10aq |
| SKI_DOO_EN_US | 09- Frame and Components | Ski-Doo / 2012 / Skandic / Skandic SWT 600 ACE (4-strokes), 2012 000LYCA00 / 09- | 51 |
| SKI_DOO_EN_US | 09- Frame and Components | Ski-Doo / 2012 / Skandic / Skandic SWT 600 H.O. E-TEC, 2012 000LYCD00 / 09- Fram | 53 |
| SKI_DOO_EN_US | 09- Frame | Ski-Doo / 2013 / SKANDIC / Skandic SWT 600 ACE (4-strokes) XU, 2013 000LYDA00 / | 24 |
| SKI_DOO_EN_US | 09- Frame | Ski-Doo / 2013 / SKANDIC / Skandic SWT 600HOETEC XU, 2013 000LYDD00 / 09- Frame | 24 |
| SKI_DOO_EN_US | 09- Frame | Ski-Doo / 2014 / SKANDIC / Skandic SWT 550F XU, 2014 000LYEJ00 / 09- Frame | 23 |
| SKI_DOO_EN_US | 09- Frame | Ski-Doo / 2014 / SKANDIC / Skandic SWT 600 ACE (4-strokes) XU, 2014 000LYEA00 / | 23 |
| SKI_DOO_EN_US | 09- Frame | Ski-Doo / 2014 / SKANDIC / Skandic SWT 600HOETEC XU, 2014 000LYED00 / 09- Frame | 24 |
| SKI_DOO_EN_US | 09- Frame _31M1547 | Ski-Doo / 2015 / SKANDIC / Skandic SWT 550, 2015 000LYFJ00 / 09- Frame _31M1547 | 23 |
| SKI_DOO_EN_US | 09- Frame _31M1549 | Ski-Doo / 2015 / SKANDIC / Skandic SWT 600 E-TEC, 2015 000LYFD00 / 09- Frame _31 | 24 |
| SKI_DOO_EN_US | 09- Frame _31M1552 | Ski-Doo / 2015 / SKANDIC / Skandic SWT 900 ACE, 2015 000LDFA00 / 09- Frame _31M1 | 26 |
| SKI_DOO_EN_US | 09- Frame - Package SWT | Ski-Doo / 2019 / SKI-DOO - SKANDIC Series / 005 - Skandic SWT 550F, 2019 000LYKJ | 10ah |
| SKI_DOO_EN_US | 09- Frame - Package SWT | Ski-Doo / 2019 / SKI-DOO - SKANDIC Series / 006 - Skandic SWT 600HO E-TEC, 2019 | 10aq |
| SKI_DOO_EN_US | 09- Frame - Package SWT | Ski-Doo / 2019 / SKI-DOO - SKANDIC Series / 007 - Skandic SWT 900 ACE, 2019 000L | 10aq |
| SKI_DOO_EN_US | 09- Frame - System - Rear Section | Ski-Doo / 2020 / 002 - SKI-DOO - North America - EXPEDITION Series / 007 - EXPED | 10as |
| SKI_DOO_EN_US | 09- Frame - System - Rear Section | Ski-Doo / 2020 / 007 - SKI-DOO - North America - SKANDIC Series / 005 - SKANDIC | 10as |
| SKI_DOO_EN_US | 09- Frame - System - Rear Section | Ski-Doo / 2020 / 007 - SKI-DOO - North America - SKANDIC Series / 006 - SKANDIC | 10as |
