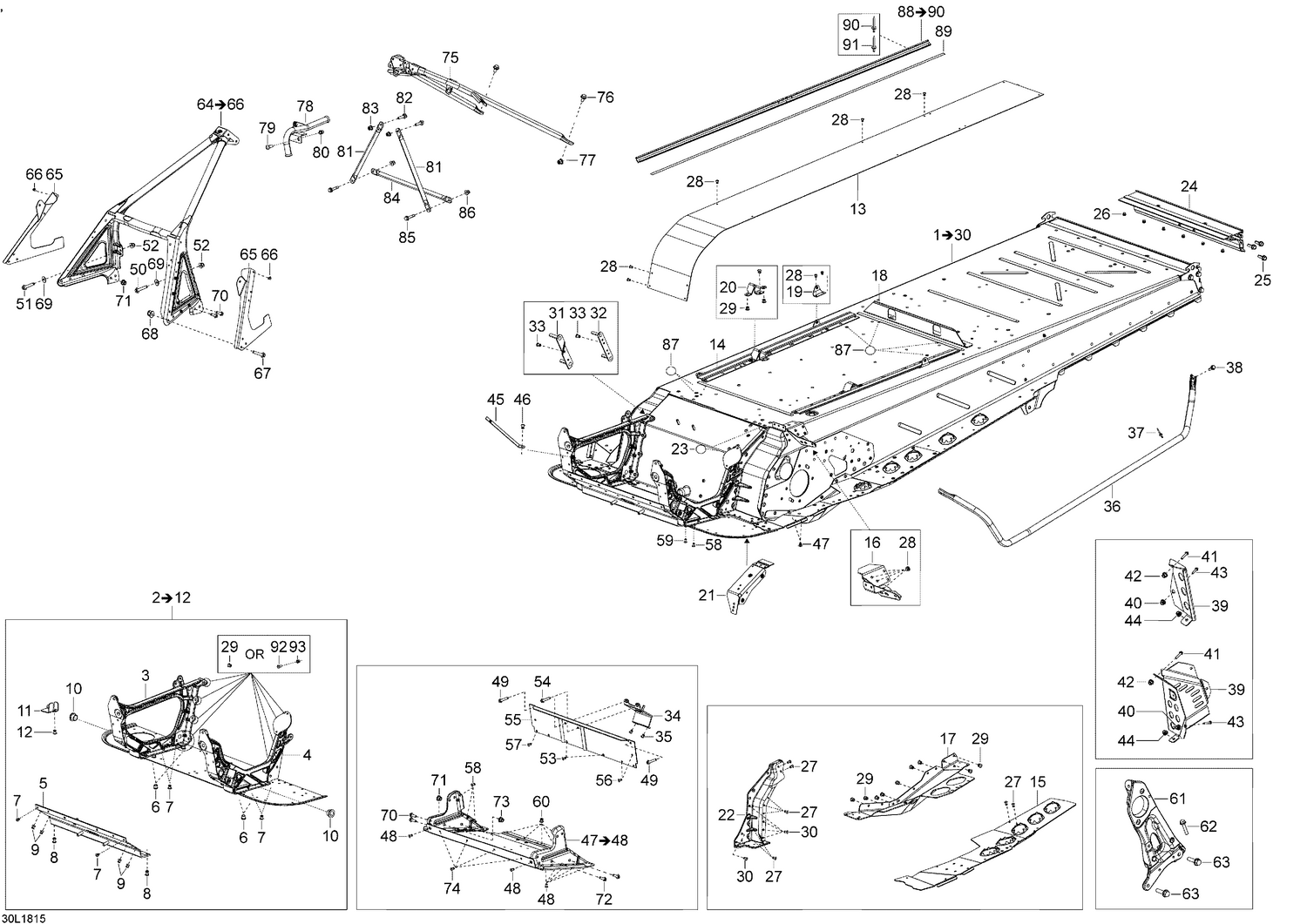

09- Frame
Parts (95)
| Ref | Part Number | Description |
|---|---|---|
| 3 | 518326795 | RH Member |
| 4 | 518326796 | LH Member |
| 5 | 518326198 | Front Member |
| 6 | 605636002 | Clinch Nut M8 |
| 7 | 390909100 | Avex Rivet |
| 8 | 293150120 | Rivet |
| 9 | 293150119 | Rivet |
| 10 | 505072690 | Leg Bushing |
| 11 | 518328194 | Muffler Support |
| 12 | 293150163 | Rivet Hucklok |
| 13 | 509000976 | Radiator |
| 14 | 518326107 | Fastening Rail |
| 15 | 518328918 | LH Footrest |
| 15 | 518328919 | RH Footrest |
| 16 | 518327884 | Fastening Bracket |
| 17 | 518328014 | LH Drive Axle Cover |
| 17 | 518328015 | RH Drive Axle Cover |
| 18 | 518327003 | TUNNEL SUPPORT - Call your local BRP dealership |
| 19 | 518329164 | Seat Box Bracket |
| 20 | 518326109 | SUPPORT TUBE BRACKET LH - Call your local BRP dealership |
| 20 | 518326110 | SUPPORT TUBE BRACKET RH - Call your local BRP dealership |
| 21 | 518328096 | CLINCH NUT PLATE - Call your local BRP dealership |
| 22 | 518325643 | LH Frame Corner |
| 22 | 518325644 | RH Frame Corner |
| 23 | 518325560 | Adhesive Patch |
| 24 | 518328749 | Rear Profile |
| 25 | 207582586 | Hex. Flange Screw M8 X 25, Scotch Grip |
| 26 | 293150174 | Rivet |
| 27 | 390909100 | Avex Rivet |
| 28 | 390909200 | Avex Rivet |
| 29 | 293150119 | Rivet |
| 30 | 293150183 | Rivet |
| 31 | 518326123 | Front Gearbox Counter Plate |
| 32 | 518326124 | Rear Gearbox Counter Plate |
| 33 | 390402200 | Pop Rivet 3/16 |
| 34 | 518325943 | MAG Support |
| 35 | 293150119 | Rivet |
| 36 | 518327595 | LH Footrest Support Tube |
| 36 | 518327596 | RH Footrest Support Tube |
| 37 | 390909100 | Avex Rivet |
| 38 | 207662056 | Hex. Flange Screw M6 x 20 |
| 39 | 518328921 | Black LH Toe Hook |
| 39 | 518328922 | Black RH Toe Hook |
| 40 | 605636003 | Clinch Nut M6 Hexsert |
| 41 | 207662056 | Hex. Flange Screw M6 x 20 |
| 42 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 43 | 250000717 | Torx Head Screw M6 X 16 |
| 44 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 45 | 514054846 | Spring Bracket |
| 46 | 390909200 | Avex Rivet |
| 48 | 390909200 | Avex Rivet |
| 49 | 210262050 | Forming Screw M6 x 20 |
| 50 | 207662544 | Hex. Flange Screw M6 X 25 |
| 51 | 207563034 | Hex. Flange Screw M6 X 30, Scotch Grip |
| 52 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 53 | 293150119 | Rivet |
| 54 | 207661644 | Hex. Flange Screw M6 X 16 |
| 55 | 518325620 | SUPPORT PLATE - Call your local BRP dealership |
| 56 | 390909100 | Avex Rivet |
| 57 | 293150163 | Rivet Hucklok |
| 58 | 293150119 | Rivet |
| 59 | 293150183 | Rivet |
| 60 | 390909200 | Avex Rivet |
| 61 | 518328434 | Pulley Support |
| 62 | 207582586 | Hex. Flange Screw M8 X 25, Scotch Grip |
| 63 | 207583086 | Hex. Flange Screw M8 X 25, Scotch Grip |
| 65 | 502007077 | LH Bumper Fastener |
| 65 | 502007078 | RH Bumper Fastener |
| 66 | 390909200 | Avex Rivet |
| 67 | 207662044 | Hex. Flange Screw M6 X 20 |
| 68 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 69 | 224061201 | Flat Washer |
| 70 | 207662044 | Hex. Flange Screw M6 X 20 |
| 71 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 72 | 207662044 | Hex. Flange Screw M6 X 20 |
| 73 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 74 | 390909200 | Avex Rivet |
| 75 | 518329107 | UPPER SUPPORT TUBE WELDED M6 - Call your local BRP dealership This part replaces 518326103. |
| 76 | 207182044 | Hex. Screw M8 x 20 |
| 77 | 232581414 | Hex. Elastic Stop Nut M8 |
| 78 | 512061157 | Guide Tube |
| 79 | 207662544 | Hex. Flange Screw M6 X 25 |
| 80 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 81 | 518325114 | Support |
| 82 | 207662056 | Hex. Flange Screw M6 x 20 |
| 83 | 233261416 | Elastic Flanged Nut M6 X 1.0 |
| 84 | 518325115 | Upper Column |
| 85 | 207662556 | Hex. Flange Screw M6 X 25 |
| 86 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 87 | 518325560 | Adhesive Patch |
| 88 | 518327505 | Radiator Protector |
| 89 | 518327389 | Protector |
| 90 | 36108 | Rivet |
| 91 | 390909200 | Avex Rivet |
| 92 | 207662044 | Hex. Flange Screw M6 X 20 |
