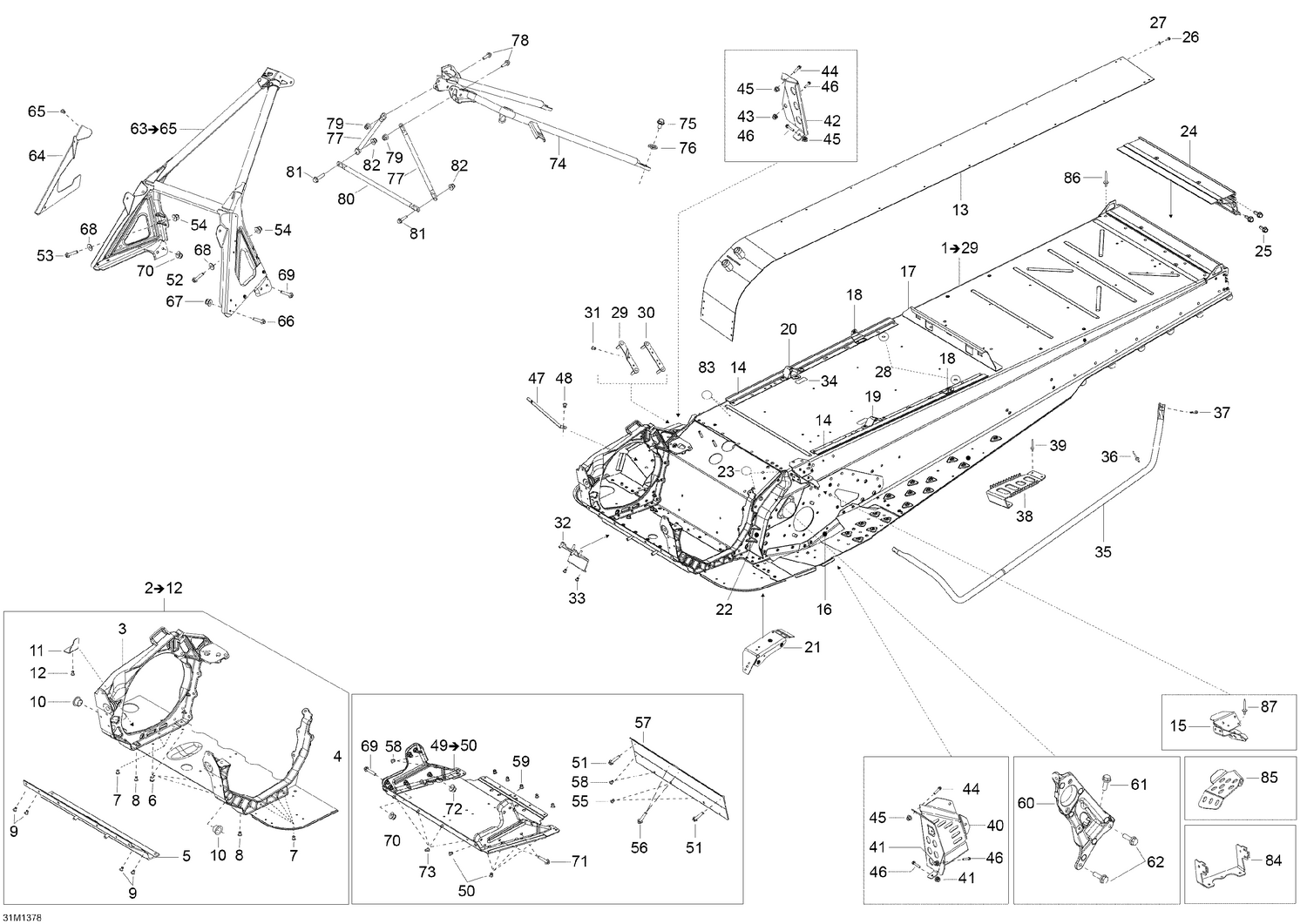

| Ref | Part Number | Description |
|---|
| 3 |
518326795 |
RH Member |
| 4 |
518326796 |
LH Member |
| 5 |
518326198 |
Front Member |
| 6 |
605636002 |
Clinch Nut Hexsert M8 |
| 7 |
390909100 |
Avex Rivet |
| 8 |
293150120 |
Hemlock Rivet 6.5 mm |
| 9 |
293150119 |
Hemlock Rivet, 6.5 mm |
| 10 |
505072690 |
Leg Bushing |
| 11 |
518326642 |
Muffler support plate |
| 12 |
293150163 |
Rivet Hucklok |
| 13 |
509000975 |
Radiator This part replaces 509000626. |
| 14 |
518326107 |
Fastening rail |
| 15 |
Not |
Available As Spare Part - Fastening Bracket |
| 16 |
Not |
Available As Spare Part - Drive Axle Cover LH |
| 17 |
Not |
Available As Spare Part - Battery Support |
| 18 |
518327457 |
SEAT BOX BRACKET - Call your local BRP dealership |
| 19 |
518326109 |
SUPPORT TUBE BRACKET LH - Call your local BRP dealership |
| 20 |
518326110 |
SUPPORT TUBE BRACKET RH - Call your local BRP dealership |
| 21 |
518326430 |
Clinch Nut plate |
| 22 |
Not |
Available As Spare Part - Frame Corner LH |
| 23 |
518325560 |
Adhesive Patch |
| 24 |
518328749 |
Rear Profile This part replaces 518325645. |
| 25 |
207582586 |
Hex. Flange Screw M8 X 25, Scotch Grip |
| 26 |
205061244 |
Socket Screw |
| 27 |
Not |
Available As Spare Part - Gasket A6 x 10 |
| 28 |
518325560 |
Adhesive Patch |
| 29 |
518326123 |
GEARBOX FRONT PLATE - Call your local BRP dealership |
| 30 |
518326124 |
Gearbox Rear Plate |
| 31 |
390402200 |
Pop Rivet 3/16" |
| 32 |
518325943 |
MAG Engine Support |
| 33 |
293150119 |
Hemlock Rivet, 6.5 mm |
| 34 |
518326357 |
RUBBER COVER - Call your local BRP dealership |
| 35 |
518325641 |
FOOTBOARD SUPPORT TUBE, LH - Call your local BRP dealership |
| 35 |
518325642 |
FOOTBOARD SUPPORT TUBE, RH - Call your local BRP dealership |
| 36 |
390909100 |
Avex Rivet |
| 37 |
207662086 |
SCREW-HEX.FLANGE DIN.6921 - Call your local BRP dealership |
| 38 |
520000492 |
Footrest |
| 39 |
390909100 |
Avex Rivet |
| 40 |
518327445 |
TOE HOOK LH - Call your local BRP dealership |
| 41 |
605636003 |
Clinch Nut M6 Hexsert |
| 42 |
518327447 |
TOE HOOK RH - Call your local BRP dealership |
| 43 |
605636003 |
Clinch Nut M6 Hexsert |
| 44 |
207662086 |
SCREW-HEX.FLANGE DIN.6921 - Call your local BRP dealership |
| 45 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 46 |
250000721 |
Torx Truss Screw M6 X 16 This part replaces 250000129. |
| 47 |
514054846 |
Spring Bracket |
| 48 |
390909200 |
Avex Rivet |
| 50 |
390909200 |
Avex Rivet |
| 51 |
210262050 |
Hexagonal Head Screw This part replaces 210262080. |
| 52 |
207662544 |
Hex. Flange Screw M6 X 25 |
| 53 |
207563034 |
Hex. Flange Screw M6 X 30, Scotch Grip This part replaces 207663034. |
| 54 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 55 |
293150119 |
Hemlock Rivet, 6.5 mm |
| 56 |
207661644 |
Hex. Flange Screw M6 X 16 |
| 57 |
518325620 |
SUPPORT PLATE - Call your local BRP dealership |
| 58 |
390909100 |
Avex Rivet |
| 59 |
390909200 |
Avex Rivet |
| 60 |
518326714 |
PULLEY SUPPORT - Call your local BRP dealership |
| 61 |
207582586 |
Hex. Flange Screw M8 X 25, Scotch Grip |
| 62 |
207583086 |
Hex. Flange Screw M8 X 30, Scotch Grip |
| 64 |
502007077 |
LH Bumper Fastener |
| 64 |
502007078 |
RH Bumper Fastener |
| 65 |
390909200 |
Avex Rivet |
| 66 |
207662044 |
Hex. Flange Screw M6 X 20 |
| 67 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 68 |
224061201 |
Flat Washer |
| 69 |
207662044 |
Hex. Flange Screw M6 X 20 |
| 70 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 71 |
207662044 |
Hex. Flange Screw M6 X 20 |
| 72 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 73 |
390909200 |
Avex Rivet |
| 74 |
518329107 |
UPPER SUPPORT TUBE WELDED M6 - Call your local BRP dealership This part replaces 518326103. |
| 75 |
207662086 |
SCREW-HEX.FLANGE DIN.6921 - Call your local BRP dealership |
| 76 |
Not |
Available As Spare Part - Lock Washer |
| 77 |
518325114 |
Upper Lateral Column Support |
| 78 |
207662086 |
SCREW-HEX.FLANGE DIN.6921 - Call your local BRP dealership |
| 79 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 80 |
518325115 |
Center Column Support |
| 81 |
250000522 |
Hex Flange Screw M6 x 25 |
| 82 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 83 |
518325560 |
Adhesive Patch |
| 84 |
515177073 |
FUSEBOX SUPPORT - Call your local BRP dealership |
| 85 |
518327035 |
Brake Hose Cover |
| 86 |
293150174 |
Hemlock Rivet, 6.4 mm |
