Parts Catalog

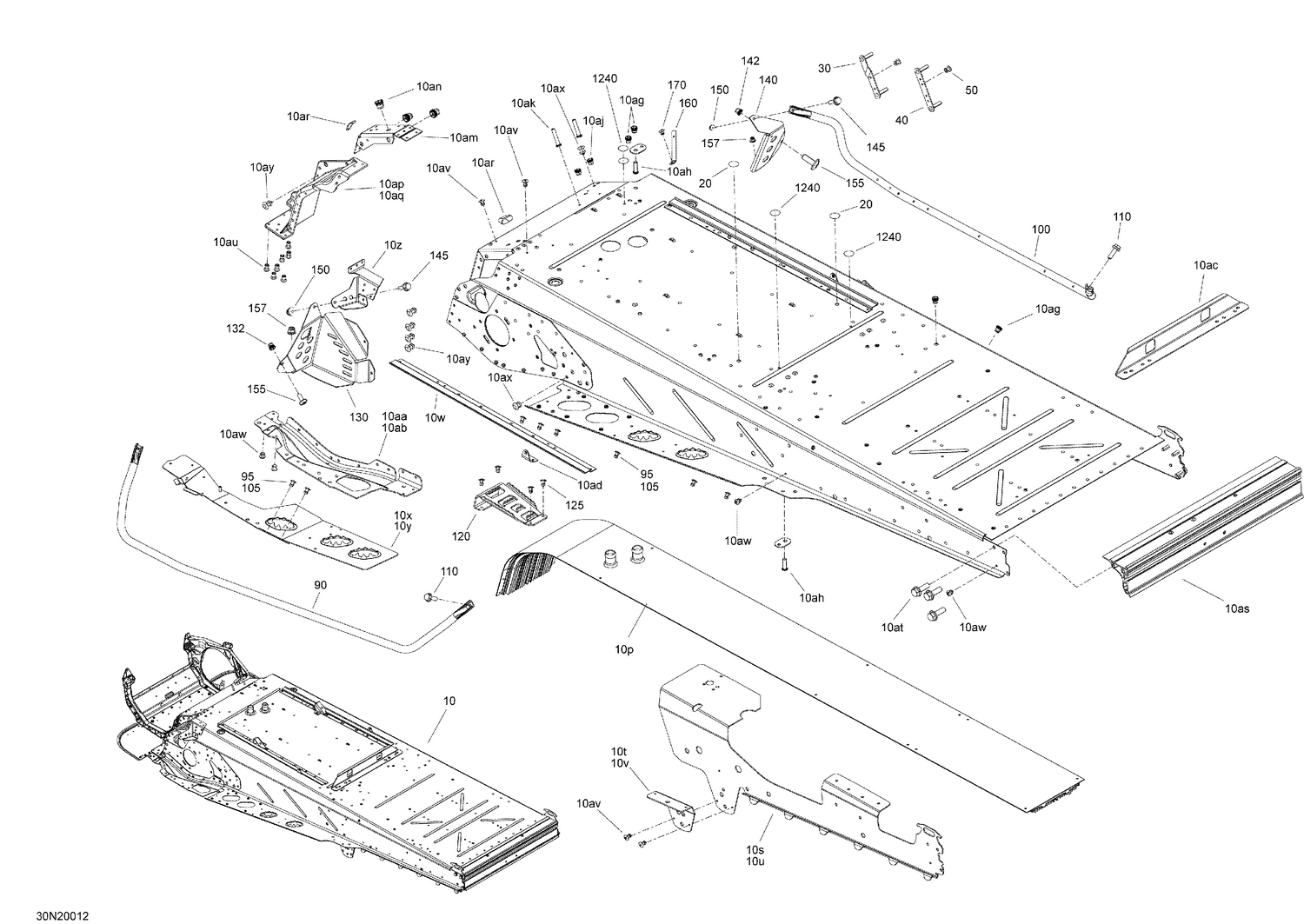

09- Frame - System - Rear Section

Parts (47)

Ref	Part Number	Description
10aa	518328014	LH Drive Axle Cover
10ab	518328015	RH Drive Axle Cover
10ac	518327003	TUNNEL SUPPORT - Call your local BRP dealership
10ad	518329164	Seat Box Bracket
10ah	250300027	Clinch Stud M6 X 20
10aj	605636003	Clinch Nut M6 Hexsert
10ak	250300031	Clinch Stud M6 X 30
10an	250100065	Clinching Nut Hexert M8
10ap	518325643	LH Frame Corner
10aq	518325644	RH Frame Corner
10ar	518325560	Adhesive Patch
10as	518328749	Rear Profile
10at	250001016	Hex Flange Screw M8 X 25 S.Grip
10au	293150163	Rivet Hucklok
10av	390909100	Avex Rivet
10aw	390909200	Avex Rivet
10ax	293150119	Hemlock Rivet, 6.5 mm
10ay	293150183	Rivet
10s	518329702	LH Rear Side Support
10t	518329083	Rear Arm Bracket
10u	518329703	RH Rear Side Support
10v	518329083	Rear Arm Bracket
10w	518326107	Fastening rail
10x	518328852	LH Footrest
10y	518328853	RH Footrest
10z	518327884	Fastening Bracket
20	518325560	Adhesive Patch
30	518326123	GEARBOX FRONT PLATE - Call your local BRP dealership
40	518326124	Gearbox Rear Plate
50	390402200	Pop Rivet 3/16"
90	518327595	LH Footboard Support Tube
95	390909100	Avex Rivet
100	518327596	RH Footboard Support Tube
105	390909100	Avex Rivet
110	207662056	Hex. Flange Screw M6 x 20
120	520001208	Black Rear Footrest
125	293150102	Rivet 3/16"
130	518328921	Black, LH Toe Hook
132	605636003	Clinch Nut M6 Hexsert
140	518328922	Black, RH Toe Hook
142	605636003	Clinch Nut M6 Hexsert
145	207662056	Hex. Flange Screw M6 x 20
150	233261414	Hex. Flange Elastic Nut M6 x 1.0
155	250000717	Torx Head Screw M6 X 16
157	233261414	Hex. Flange Elastic Nut M6 x 1.0
160	514054846	Spring Bracket
170	390909200	Avex Rivet
