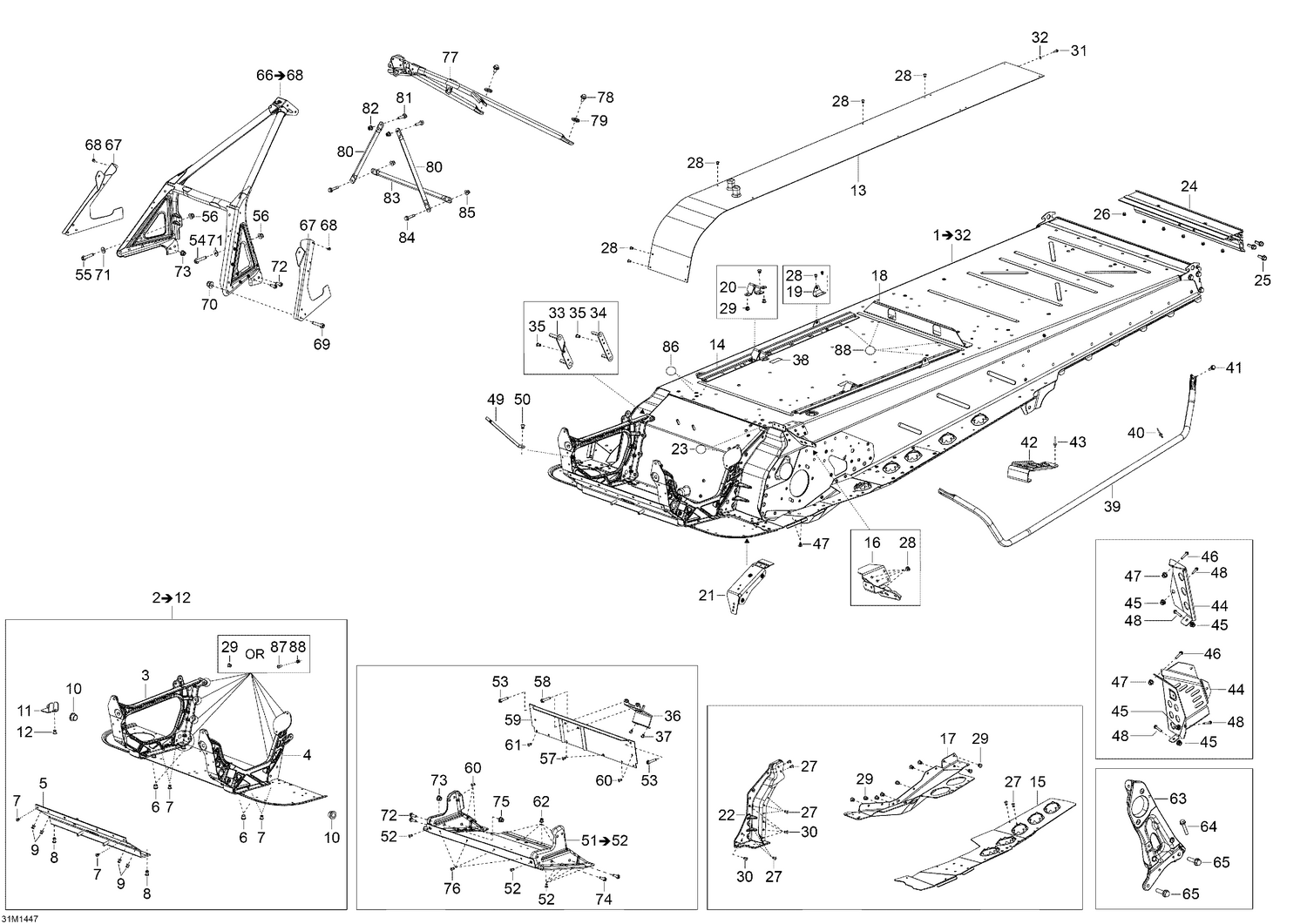

09- Frame

09- Frame

Parts (89)

RefPart NumberDescription
3 518326795 RH Member
4 518326796 LH Member
5 518326198 Front Member
6 605636002 Clinch Nut Hexsert M8
7 390909100 Avex Rivet
8 293150120 Hemlock Rivet 6.5 mm
9 293150119 Hemlock Rivet, 6.5 mm
10 505072690 Leg Bushing
11 518326642 Muffler support plate
12 293150163 Rivet Hucklok
13 509000975 Radiator This part replaces 509000626.
14 518326107 Fastening rail
15 518327481 FOOTREST LH - Call your local BRP dealership
15 518327482 Footrest RH
16 518327884 Fastening Bracket
17 Not Available As Spare Part - Drive Axle Cover LH
18 518327003 TUNNEL SUPPORT - Call your local BRP dealership
19 518327457 SEAT BOX BRACKET - Call your local BRP dealership
20 518326109 SUPPORT TUBE BRACKET LH - Call your local BRP dealership
20 518326110 SUPPORT TUBE BRACKET RH - Call your local BRP dealership
21 518328096 CLINCH NUT PLATE - Call your local BRP dealership
22 518325643 LH Frame Corner
22 518325644 RH Frame Corner
23 518325560 Adhesive Patch
24 518328749 Rear Profile This part replaces 518325645.
25 207582586 Hex. Flange Screw M8 X 25, Scotch Grip
26 293150174 Hemlock Rivet, 6.4 mm
27 390909100 Avex Rivet
28 390909200 Avex Rivet
29 293150119 Hemlock Rivet, 6.5 mm
30 293150183 Rivet
31 205061244 Socket Screw
32 Not Available As Spare Part - Gasket A6 x 10
33 518326123 GEARBOX FRONT PLATE - Call your local BRP dealership
34 518326124 Gearbox Rear Plate
35 390402200 Pop Rivet 3/16"
36 518325943 MAG Engine Support
37 293150119 Hemlock Rivet, 6.5 mm
38 518326357 RUBBER COVER - Call your local BRP dealership
39 518327595 LH Footboard Support Tube
39 518327596 RH Footboard Support Tube
40 390909100 Avex Rivet
41 207662056 Hex. Flange Screw M6 x 20
42 520000492 Footrest
43 390909100 Avex Rivet
44 518327445 TOE HOOK LH - Call your local BRP dealership
44 518327447 TOE HOOK RH - Call your local BRP dealership
45 605636003 Clinch Nut M6 Hexsert
46 207662056 Hex. Flange Screw M6 x 20
47 233261414 Hex. Flange Elastic Nut M6 x 1.0
48 250000721 Torx Truss Screw M6 X 16 This part replaces 250000129.
49 514054846 Spring Bracket
50 390909200 Avex Rivet
52 390909200 Avex Rivet
53 210262050 Hexagonal Head Screw This part replaces 210262080.
54 207662544 Hex. Flange Screw M6 X 25
55 207563034 Hex. Flange Screw M6 X 30, Scotch Grip This part replaces 207663034.
56 233261414 Hex. Flange Elastic Nut M6 x 1.0
57 293150119 Hemlock Rivet, 6.5 mm
58 207661644 Hex. Flange Screw M6 X 16
59 518325620 SUPPORT PLATE - Call your local BRP dealership
60 390909100 Avex Rivet
61 293150163 Rivet Hucklok
62 390909200 Avex Rivet
63 518326714 PULLEY SUPPORT - Call your local BRP dealership
64 207582586 Hex. Flange Screw M8 X 25, Scotch Grip
65 207583086 Hex. Flange Screw M8 X 30, Scotch Grip
67 502007077 LH Bumper Fastener
67 502007078 RH Bumper Fastener
68 390909200 Avex Rivet
69 207662044 Hex. Flange Screw M6 X 20
70 233261414 Hex. Flange Elastic Nut M6 x 1.0
71 224061201 Flat Washer
72 207662044 Hex. Flange Screw M6 X 20
73 233261414 Hex. Flange Elastic Nut M6 x 1.0
74 207662044 Hex. Flange Screw M6 X 20
75 233261414 Hex. Flange Elastic Nut M6 x 1.0
76 390909200 Avex Rivet
77 518329107 UPPER SUPPORT TUBE WELDED M6 - Call your local BRP dealership This part replaces 518326103.
78 207662056 Hex. Flange Screw M6 x 20
79 Not Available As Spare Part - Lock Washer
80 518325114 Upper Lateral Column Support
81 207662056 Hex. Flange Screw M6 x 20
82 233261414 Hex. Flange Elastic Nut M6 x 1.0
83 518325115 Center Column Support
84 250000522 Hex Flange Screw M6 x 25
85 233261414 Hex. Flange Elastic Nut M6 x 1.0
86 518325560 Adhesive Patch
87 207662044 Hex. Flange Screw M6 X 20
