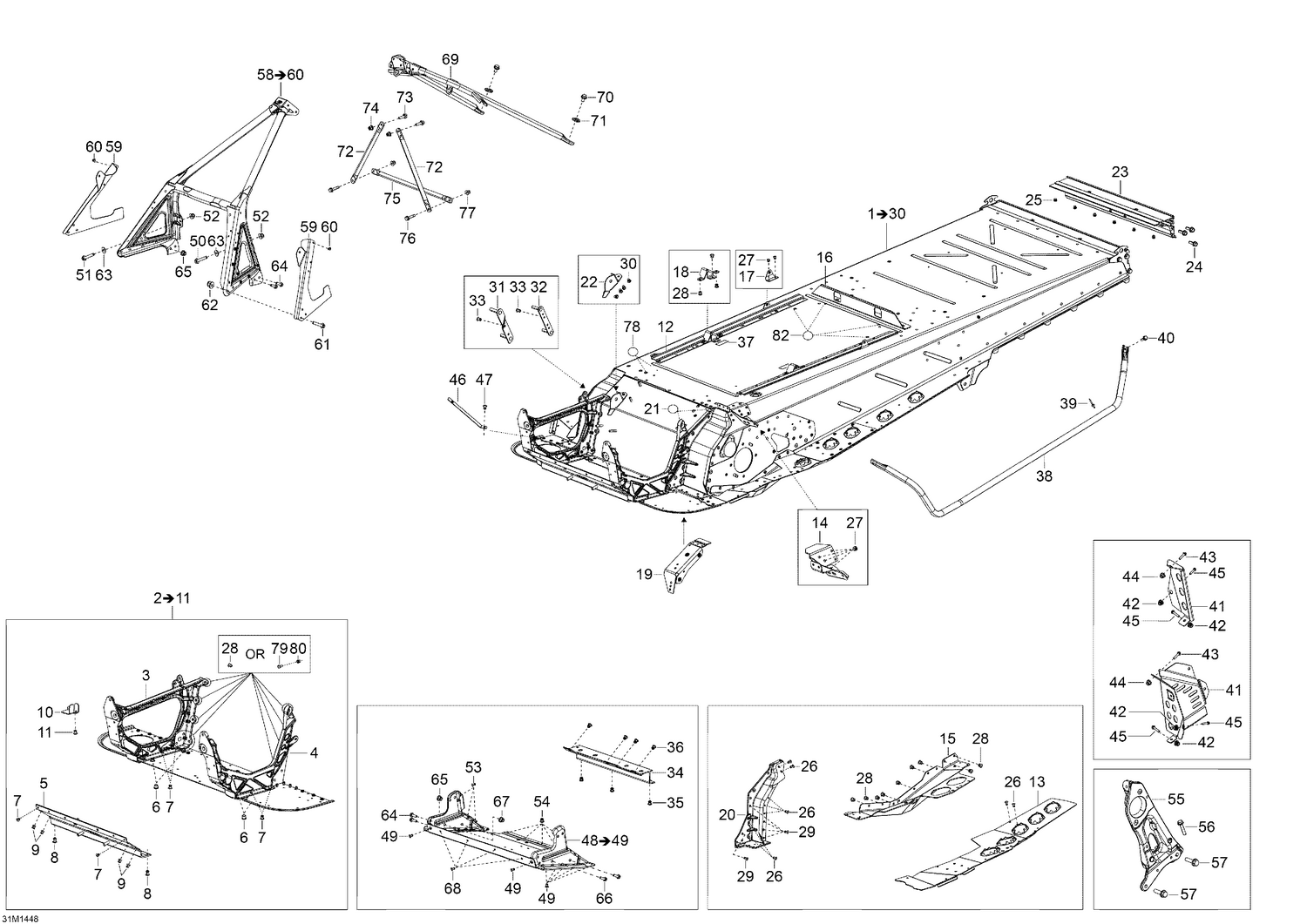

09- Frame
Parts (81)
| Ref | Part Number | Description |
|---|---|---|
| 3 | 518326795 | RH Member |
| 4 | 518325558 | LH Member |
| 5 | 518325818 | Front Member |
| 6 | 605636002 | Clinch Nut Hexsert M8 |
| 7 | 390909100 | Avex Rivet |
| 8 | 293150120 | Hemlock Rivet 6.5 mm |
| 9 | 293150119 | Hemlock Rivet, 6.5 mm |
| 10 | 518327219 | Muffler Support |
| 11 | 293150163 | Rivet Hucklok |
| 12 | 518326107 | Fastening rail |
| 13 | 518327481 | FOOTREST LH - Call your local BRP dealership |
| 13 | 518327482 | Footrest RH |
| 14 | 518327884 | Fastening Bracket |
| 15 | Not | Available As Spare Part - Drive Axle Cover LH |
| 16 | 518327003 | TUNNEL SUPPORT - Call your local BRP dealership |
| 17 | 518327457 | SEAT BOX BRACKET - Call your local BRP dealership |
| 18 | 518326109 | SUPPORT TUBE BRACKET LH - Call your local BRP dealership |
| 18 | 518326110 | SUPPORT TUBE BRACKET RH - Call your local BRP dealership |
| 19 | 518328096 | CLINCH NUT PLATE - Call your local BRP dealership |
| 20 | 518325643 | LH Frame Corner |
| 20 | 518325644 | RH Frame Corner |
| 21 | 518325560 | Adhesive Patch |
| 22 | 518326520 | RH Support |
| 23 | 518328749 | Rear Profile This part replaces 518325645. |
| 24 | 207582586 | Hex. Flange Screw M8 X 25, Scotch Grip |
| 25 | 293150174 | Hemlock Rivet, 6.4 mm |
| 26 | 390909100 | Avex Rivet |
| 27 | 390909200 | Avex Rivet |
| 28 | 293150119 | Hemlock Rivet, 6.5 mm |
| 29 | 293150183 | Rivet |
| 30 | 293150096 | Hemlock Rivet, 6.5 mm |
| 31 | 518326123 | GEARBOX FRONT PLATE - Call your local BRP dealership |
| 32 | 518326124 | Gearbox Rear Plate |
| 33 | 390402200 | Pop Rivet 3/16" |
| 34 | 518326719 | Engine Support |
| 35 | 293150163 | Rivet Hucklok |
| 36 | 390909200 | Avex Rivet |
| 37 | 518326357 | RUBBER COVER - Call your local BRP dealership |
| 38 | 518327595 | LH Footboard Support Tube |
| 38 | 518327596 | RH Footboard Support Tube |
| 39 | 390909100 | Avex Rivet |
| 40 | 207662056 | Hex. Flange Screw M6 x 20 |
| 41 | 518327445 | TOE HOOK LH - Call your local BRP dealership |
| 41 | 518327447 | TOE HOOK RH - Call your local BRP dealership |
| 42 | 605636003 | Clinch Nut M6 Hexsert |
| 43 | 207662056 | Hex. Flange Screw M6 x 20 |
| 44 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 45 | 250000721 | Torx Truss Screw M6 X 16 This part replaces 250000129. |
| 46 | 514054846 | Spring Bracket |
| 47 | 390909200 | Avex Rivet |
| 49 | 390909200 | Avex Rivet |
| 50 | 207662544 | Hex. Flange Screw M6 X 25 |
| 51 | 207662544 | Hex. Flange Screw M6 X 25 |
| 52 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 53 | 390909100 | Avex Rivet |
| 54 | 390909200 | Avex Rivet |
| 55 | 518326714 | PULLEY SUPPORT - Call your local BRP dealership |
| 56 | 207582586 | Hex. Flange Screw M8 X 25, Scotch Grip |
| 57 | 207583086 | Hex. Flange Screw M8 X 30, Scotch Grip |
| 59 | 502007077 | LH Bumper Fastener |
| 59 | 502007078 | RH Bumper Fastener |
| 60 | 390909200 | Avex Rivet |
| 61 | 207662044 | Hex. Flange Screw M6 X 20 |
| 62 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 63 | 224061201 | Flat Washer |
| 64 | 207662044 | Hex. Flange Screw M6 X 20 |
| 65 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 66 | 207662044 | Hex. Flange Screw M6 X 20 |
| 67 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 68 | 390909200 | Avex Rivet |
| 69 | 518329107 | UPPER SUPPORT TUBE WELDED M6 - Call your local BRP dealership This part replaces 518326103. |
| 70 | 207662056 | Hex. Flange Screw M6 x 20 |
| 71 | Not | Available As Spare Part - Lock Washer |
| 72 | 518325114 | Upper Lateral Column Support |
| 73 | 207662056 | Hex. Flange Screw M6 x 20 |
| 74 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 75 | 518325115 | Center Column Support |
| 76 | 250000522 | Hex Flange Screw M6 x 25 |
| 77 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 78 | 518325560 | Adhesive Patch |
| 79 | 207662044 | Hex. Flange Screw M6 X 20 |
