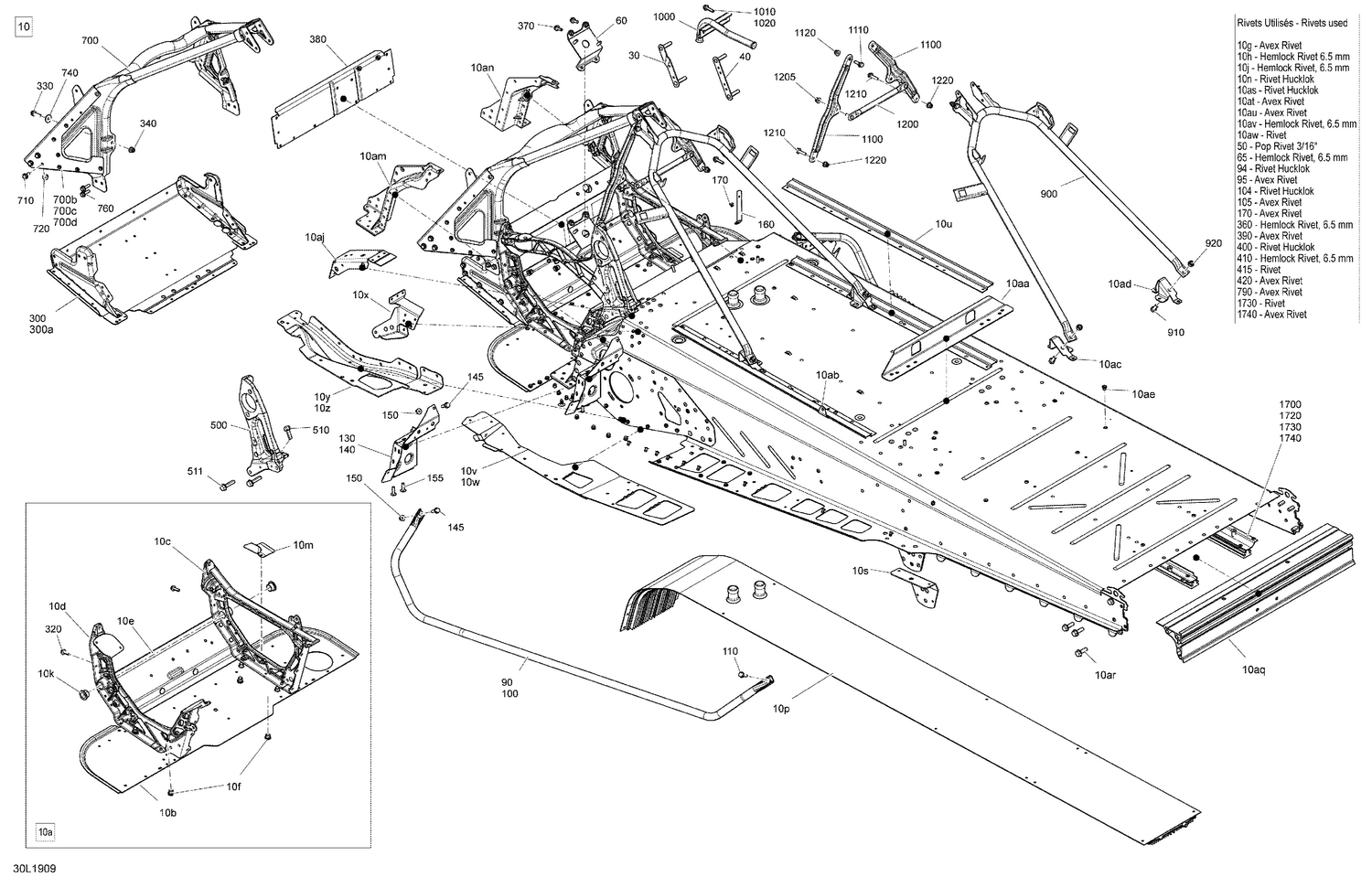

| Ref | Part Number | Description |
|---|
| 10aa |
518327003 |
TUNNEL SUPPORT - Call your local BRP dealership |
| 10ab |
518329164 |
Seat Box Bracket |
| 10ac |
518329109 |
LH Support Tube Bracket |
| 10ad |
518329110 |
RH Support Tube Bracket |
| 10ae |
605636003 |
Clinch Nut M6 Hexsert |
| 10aj |
518328096 |
CLINCH NUT PLATE - Call your local BRP dealership |
| 10am |
518325643 |
Frame corner L.H. 600mm. |
| 10an |
518325644 |
Frame corner R.H. 600mm. |
| 10aq |
518328749 |
Rear Profile |
| 10ar |
207582586 |
Hex. Flange Screw M8 X 25, Scotch Grip |
| 10as |
293150163 |
Rivet Hucklok |
| 10at |
390909100 |
Avex Rivet |
| 10au |
390909200 |
Avex Rivet |
| 10av |
293150119 |
Hemlock Rivet, 6.5 mm |
| 10aw |
293150183 |
Rivet hemlock 19.7 mm. |
| 10c |
518326795 |
R.H. Member |
| 10d |
518326796 |
L.H. Member |
| 10e |
518326198 |
Front Member |
| 10f |
605636002 |
Clinch Nut Hexsert M8 |
| 10g |
390909100 |
Avex Rivet |
| 10h |
293150120 |
Hemlock Rivet 6.5 mm |
| 10j |
293150119 |
Hemlock Rivet, 6.5 mm |
| 10k |
505072690 |
Leg Bushing |
| 10m |
518328194 |
Muffler Support |
| 10n |
293150163 |
Rivet Hucklok |
| 10p |
509000976 |
Tunnel Radiator |
| 10s |
518329083 |
Rear Arm Bracket |
| 10u |
518326107 |
Fastening Rail |
| 10v |
518328918 |
LH Footrest |
| 10w |
518328919 |
RH Footrest |
| 10x |
518327884 |
Fastening Bracket |
| 10y |
518328014 |
LH Drive Axle Cover |
| 10z |
518328015 |
RH Drive Axle Cover |
| 30 |
518326123 |
GEARBOX FRONT PLATE - Call your local BRP dealership |
| 40 |
518326124 |
Gearbox Counter Plate, Rear |
| 50 |
390402200 |
Pop Rivet 3/16 |
| 60 |
518325943 |
MAG Engine Support |
| 65 |
293150119 |
Hemlock Rivet, 6.5 mm |
| 90 |
518327595 |
Footrest support tube L.H. |
| 94 |
293150163 |
Rivet Hucklok |
| 95 |
390909100 |
Avex Rivet |
| 100 |
518327596 |
Footrest support tube R.H. |
| 104 |
293150163 |
Rivet Hucklok |
| 105 |
390909100 |
Avex Rivet |
| 110 |
207662056 |
Socket Head Screw M6x20 8.8 |
| 130 |
518328921 |
Black, LH Toe Hook |
| 140 |
518328922 |
Black, RH Toe Hook |
| 145 |
207662056 |
Socket Head Screw M6x20 8.8 |
| 150 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 155 |
250000717 |
Torx Head Screw M6 X 16 |
| 160 |
514054846 |
Spring Bracket |
| 170 |
390909200 |
Avex Rivet |
| 300a |
390909200 |
Avex Rivet |
| 320 |
210262050 |
Washer Head Hexagonal Screw |
| 330 |
207662544 |
Hex. Flange Screw M6 X 25 |
| 340 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 360 |
293150119 |
Hemlock Rivet, 6.5 mm |
| 370 |
207661644 |
Hex. Flange Screw M6 X 16 |
| 380 |
518325620 |
SUPPORT PLATE - Call your local BRP dealership |
| 390 |
390909100 |
Avex Rivet |
| 400 |
293150163 |
Rivet Hucklok |
| 410 |
293150119 |
Hemlock Rivet, 6.5 mm |
| 415 |
293150183 |
Rivet hemlock 19.7 mm. |
| 420 |
390909200 |
Avex Rivet |
| 500 |
518328434 |
Pulley support machined |
| 510 |
207582586 |
Hex. Flange Screw M8 X 25, Scotch Grip |
| 511 |
207583086 |
Hex. Flange Screw M8 X 25, Scotch Grip |
| 700b |
502007077 |
Bumper Fastener LH |
| 700c |
502007078 |
Bumper Fastener RH |
| 700d |
390909200 |
Avex Rivet |
| 710 |
207662044 |
Hex. Flange Screw M6 X 20 |
| 720 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 740 |
224061201 |
Flat Washer |
| 760 |
207662044 |
Hex. Flange Screw M6 X 20 |
| 790 |
390909200 |
Avex Rivet |
| 900 |
518329105 |
Upper Support Tube |
| 910 |
207182044 |
Hex. Screw M6 X 20, Scotch Grip |
| 920 |
232581414 |
Hex. Elastic Stop Nut M8 |
| 1000 |
512061157 |
Guide Tube |
| 1010 |
207662544 |
Hex. Flange Screw M6 X 25 |
| 1020 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 1100 |
518325114 |
Upper Lateral Column Support |
| 1110 |
207662056 |
Socket Head Screw M6x20 8.8 |
| 1120 |
233261416 |
Elastic Flanged Nut M6 X 1.0 |
| 1200 |
518325115 |
Center Column Support |
| 1210 |
207662556 |
Hex. Flange Screw M6 X 25 |
| 1220 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 1700 |
518327505 |
Radiator protector |
| 1720 |
860200737 |
Radiator Protector Kit |
| 1730 |
36108 |
Rivet steel 4.8x8 ZN bright |
