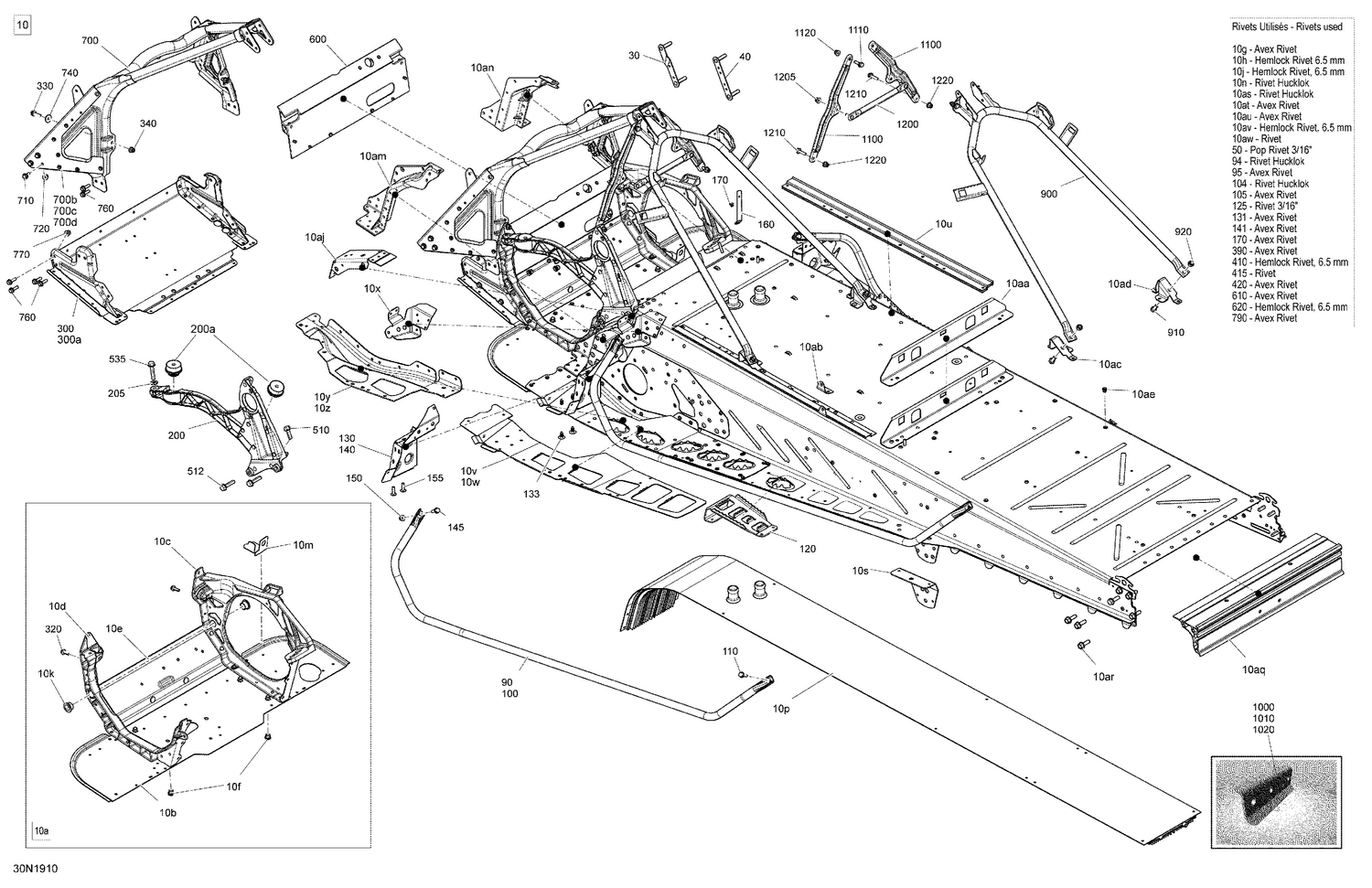

09- Frame - Package SWT
Parts (89)
| Ref | Part Number | Description |
|---|---|---|
| 10aa | 518327003 | TUNNEL SUPPORT - Call your local BRP dealership |
| 10ab | 518329164 | Seat Box Bracket |
| 10ac | 518329109 | LH Support Tube Bracket |
| 10ad | 518329110 | RH Support Tube Bracket |
| 10ae | 605636003 | Clinch Nut M6 Hexsert |
| 10aj | 518328096 | CLINCH NUT PLATE - Call your local BRP dealership |
| 10am | 518325643 | LH Frame Corner |
| 10an | 518325644 | RH Frame Corner |
| 10aq | 518328749 | Rear Profile |
| 10ar | 207582586 | Hex. Flange Screw M8 X 25, Scotch Grip |
| 10as | 293150163 | Rivet Hucklok |
| 10at | 390909100 | Avex Rivet |
| 10au | 390909200 | Avex Rivet |
| 10av | 293150119 | Hemlock Rivet, 6.5 mm |
| 10aw | 293150183 | Rivet |
| 10b | 518329826 | Bottom Plate |
| 10c | 518326328 | RH Side Member |
| 10d | 518326330 | LH Side Member |
| 10e | 518326198 | Front Member |
| 10f | 605636002 | Clinch Nut Hexsert M8 |
| 10g | 390909100 | Avex Rivet |
| 10h | 293150120 | Hemlock Rivet 6.5 mm |
| 10j | 293150119 | Hemlock Rivet, 6.5 mm |
| 10k | 505072690 | Leg Bushing |
| 10m | 518327983 | SUPPORT_EXHAUST - Call your local BRP dealership |
| 10n | 293150163 | Rivet Hucklok |
| 10p | 509000976 | Tunnel Radiator |
| 10s | 518329083 | Rear Arm Bracket |
| 10u | 518326107 | Fastening rail |
| 10v | 518328852 | LH Footrest |
| 10w | 518328853 | RH Footrest |
| 10x | 518327884 | Fastening Bracket |
| 10y | 518328014 | LH Drive Axle Cover |
| 10z | 518328015 | RH Drive Axle Cover |
| 30 | 518326123 | GEARBOX FRONT PLATE - Call your local BRP dealership |
| 40 | 518326124 | Gearbox Rear Plate |
| 50 | 390402200 | Pop Rivet 3/16" |
| 90 | 518327595 | LH Footboard Support Tube |
| 94 | 293150163 | Rivet Hucklok |
| 95 | 390909100 | Avex Rivet |
| 100 | 518327596 | RH Footboard Support Tube |
| 104 | 293150163 | Rivet Hucklok |
| 105 | 390909100 | Avex Rivet |
| 110 | 207662056 | Hex. Flange Screw M6 x 20 |
| 120 | 520001208 | Black Rear Footrest |
| 125 | 293150102 | Rivet 3/16" |
| 130 | 518328921 | Black, LH Toe Hook |
| 140 | 518328922 | Black, RH Toe Hook |
| 145 | 207662056 | Hex. Flange Screw M6 x 20 |
| 150 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 155 | 250000717 | Torx Head Screw M6 X 16 |
| 160 | 514054846 | Spring Bracket |
| 170 | 390909200 | Avex Rivet |
| 200a | 512061516 | Vibration Damper This part replaces 512060295. |
| 205 | 234281474 | Conical Spring Washer M8 |
| 300a | 390909200 | Avex Rivet |
| 320 | 210262050 | Hexagonal Head Screw |
| 330 | 207662544 | Hex. Flange Screw M6 X 25 |
| 340 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 390 | 390909100 | Avex Rivet |
| 410 | 293150119 | Hemlock Rivet, 6.5 mm |
| 415 | 293150183 | Rivet |
| 420 | 390909200 | Avex Rivet |
| 510 | 207582586 | Hex. Flange Screw M8 X 25, Scotch Grip |
| 535 | 207584044 | Hex. Flange Screw M8 X 40, Scotch Grip |
| 600 | 518326140 | Engine Support |
| 610 | 390909100 | Avex Rivet |
| 620 | 293150119 | Hemlock Rivet, 6.5 mm |
| 700b | 502007077 | LH Bumper Fastener |
| 700c | 502007078 | RH Bumper Fastener |
| 700d | 390909200 | Avex Rivet |
| 710 | 207662044 | Hex. Flange Screw M6 X 20 |
| 720 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 740 | 224061201 | Flat Washer |
| 760 | 207662044 | Hex. Flange Screw M6 X 20 |
| 770 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 790 | 390909200 | Avex Rivet |
| 900 | 518329105 | Upper Support Tube |
| 910 | 207182044 | Hex. Screw M8 X 20 |
| 920 | 232581414 | Hex. Elastic Stop Nut M8 |
| 1000 | 518330343 | Extension Plate |
| 1010 | 207662544 | Hex. Flange Screw M6 X 25 |
| 1020 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 1100 | 518326848 | Upper Column Support |
| 1110 | 207662056 | Hex. Flange Screw M6 x 20 |
| 1120 | 233261416 | Elastic Flange Nut M6 X 1.0 |
| 1200 | 518326355 | Center Column Support |
| 1205 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 1210 | 207662556 | Hex. Flange Screw M6 X 25 |
