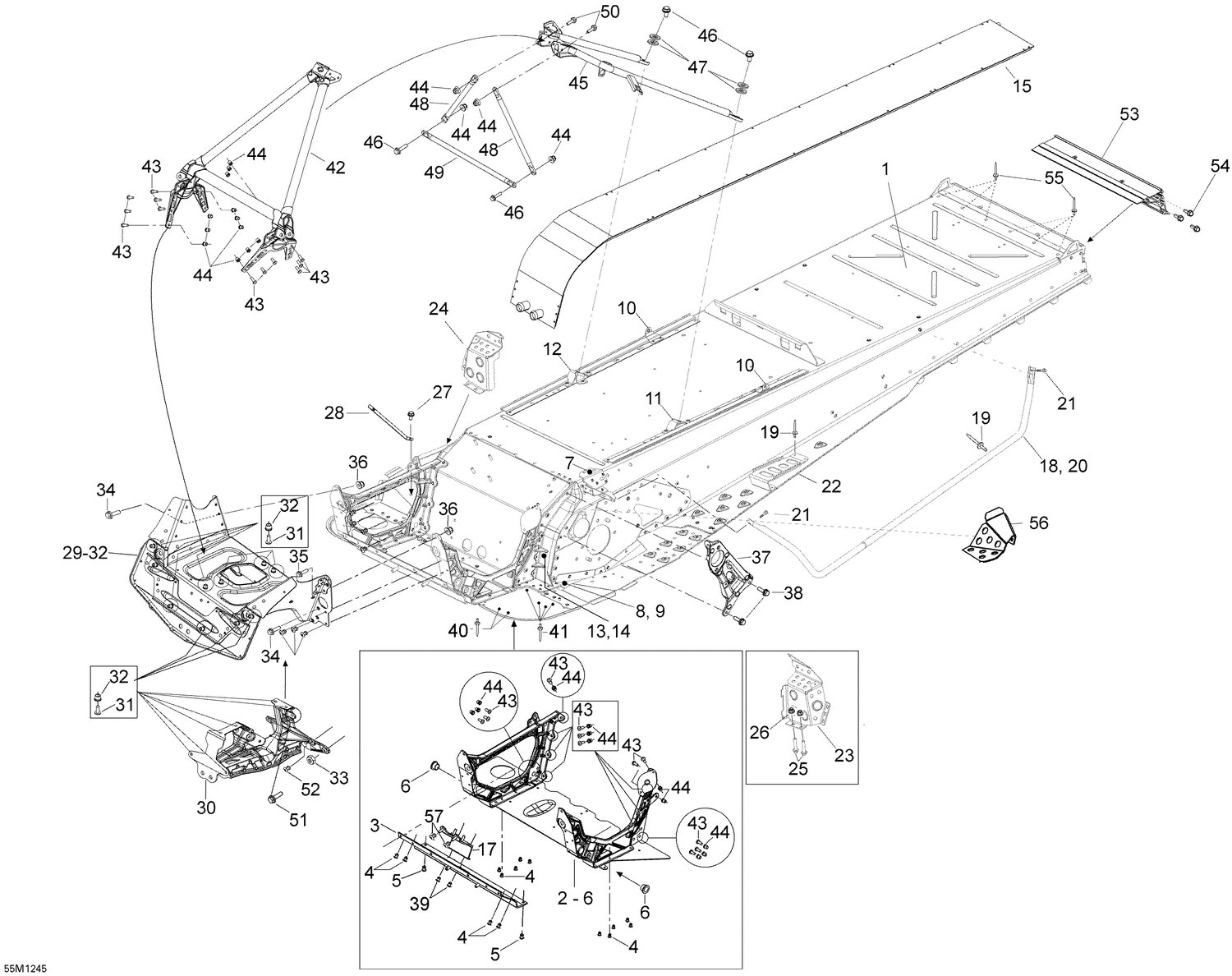

| Ref | Part Number | Description |
|---|
| 3 |
518326198 |
Front Member |
| 4 |
293150119 |
Hemlock Rivet, 6.5 mm |
| 5 |
293150120 |
Hemlock Rivet 6.5 mm |
| 6 |
505072690 |
Leg Bushing |
| 7 |
605355235 |
FASTENING BRACKET - Call your local BRP dealership |
| 8 |
518326659 |
DRIVE AXLE COVER R.H. - Call your local BRP dealership |
| 9 |
518326658 |
Drive Axle Cover L.H. |
| 10 |
518325987 |
Seat Box Bracket |
| 11 |
518326109 |
SUPPORT TUBE BRACKET LH - Call your local BRP dealership |
| 12 |
518326110 |
SUPPORT TUBE BRACKET RH - Call your local BRP dealership |
| 13 |
518325524 |
LH Frame Corner |
| 14 |
518325526 |
FRAME CORNER RH - Call your local BRP dealership |
| 15 |
509000975 |
Radiator This part replaces 509000626. |
| 17 |
518325943 |
MAG Engine Support |
| 18 |
518325641 |
FOOTBOARD SUPPORT TUBE, LH - Call your local BRP dealership |
| 19 |
293150163 |
Rivet Hucklok |
| 20 |
518325642 |
FOOTBOARD SUPPORT TUBE, RH - Call your local BRP dealership |
| 21 |
207662086 |
SCREW-HEX.FLANGE DIN.6921 - Call your local BRP dealership |
| 22 |
520000492 |
Footrest |
| 23 |
518326726 |
Toe Hook LH |
| 24 |
518326727 |
Toe Hook RH |
| 25 |
207662086 |
SCREW-HEX.FLANGE DIN.6921 - Call your local BRP dealership |
| 26 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 27 |
250000722 |
Torx Screw M6 X 20 This part replaces 250000128. |
| 28 |
514054846 |
Spring Bracket |
| 30 |
518327487 |
Front Suspension Support This part replaces 518325925. |
| 31 |
207662044 |
Hex. Flange Screw M6 X 20 |
| 32 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 33 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 34 |
210262050 |
Hexagonal Head Screw This part replaces 210262080. |
| 35 |
250000450 |
SCREW-HEX.FLANGE DIN.6921 - Call your local BRP dealership |
| 36 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 37 |
518326714 |
PULLEY SUPPORT - Call your local BRP dealership |
| 38 |
207582586 |
Hex. Flange Screw M8 X 25, Scotch Grip |
| 39 |
293150164 |
RIVET_HUCKLOK 6,4 MM HKLP-R8-6 - Call your local BRP dealership |
| 40 |
293150104 |
Pop Rivet 3/16" |
| 41 |
390909200 |
Avex Rivet |
| 42 |
518326970 |
Front Member This part replaces 518326555. |
| 43 |
207662044 |
Hex. Flange Screw M6 X 20 |
| 44 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 45 |
518329107 |
UPPER SUPPORT TUBE WELDED M6 - Call your local BRP dealership This part replaces 518326103. |
| 46 |
207662086 |
SCREW-HEX.FLANGE DIN.6921 - Call your local BRP dealership |
| 47 |
Not |
Available As Spare Part - Lock washer D6 |
| 48 |
518325114 |
Upper Lateral Column Support |
| 49 |
518325115 |
Center Column Support |
| 50 |
250000450 |
SCREW-HEX.FLANGE DIN.6921 - Call your local BRP dealership |
| 51 |
207561244 |
Hex. Flange Screw M6 X 12, Scotch Grip |
| 52 |
293150266 |
Ornit Rivet 6,5 X 14.5 This part replaces 293150147. |
| 53 |
518328749 |
Rear Profile This part replaces 518325645. |
| 54 |
250000376 |
Hex Forming Screw DIN.7500D |
| 55 |
293150174 |
Hemlock Rivet, 6.4 mm |
| 56 |
518325626 |
Brake Hose Cover |
