269002153
HOLDER DOOR ASS'Y - Call your local BRP dealership This part replaces 204614760.

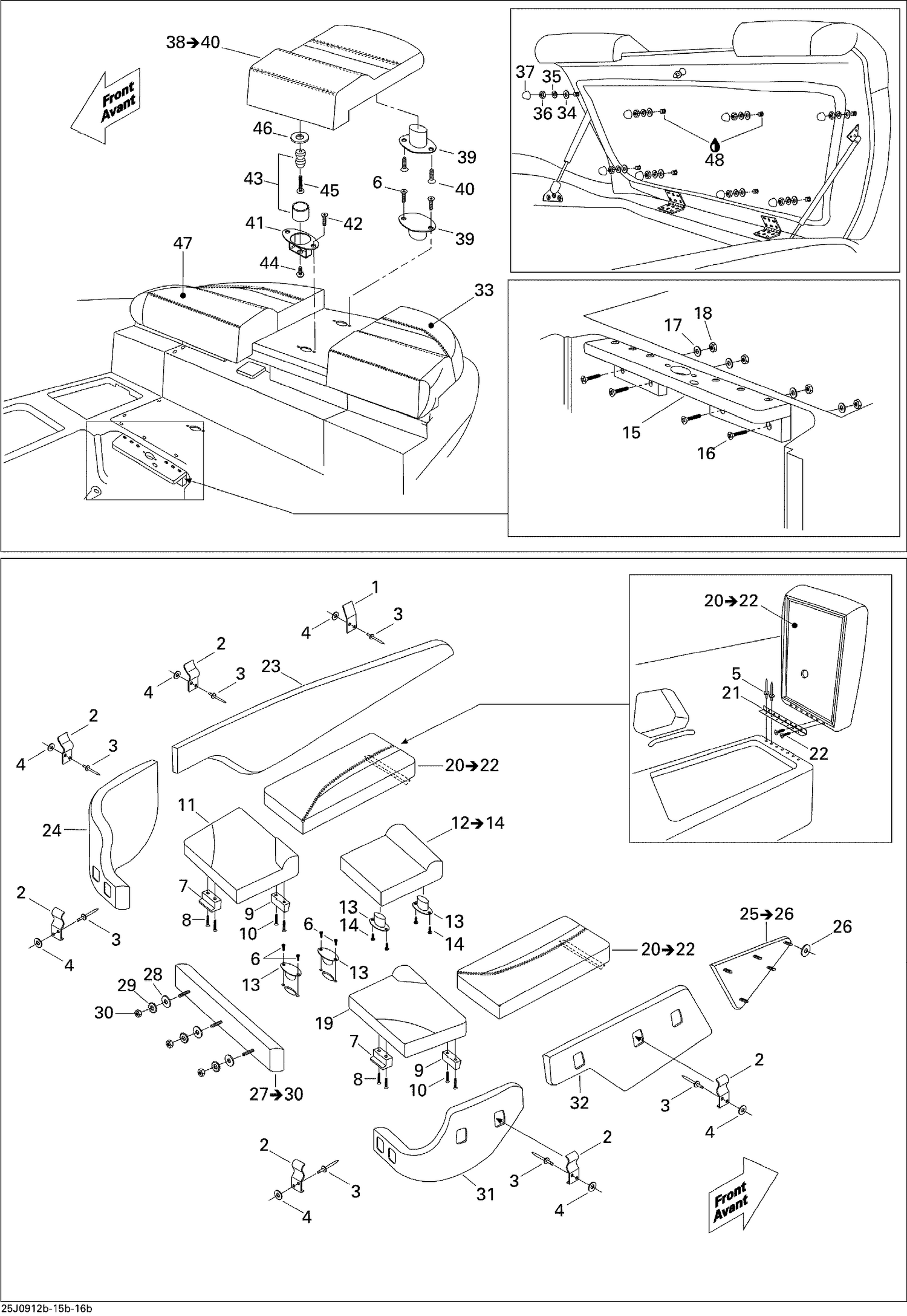

Схема сборки, где используется деталь
Used in (54 assemblies)
| Brand | Assembly | Path | Ref |
|---|---|---|---|
| SEA_DOO_EN_US | 09- Seat, Rear View | Sea-Doo / Sea-Doo Boats / 2009 / Challenger / 230 Challenger SE, 2 x 215 SCIC, 2 | 43 |
| SEA_DOO_EN_US | 09- Seat, Rear View | Sea-Doo / Sea-Doo Boats / 2009 / Challenger / 230 Challenger SE, 2 x 255 HO, 200 | 43 |
| SEA_DOO_EN_US | 09- Seat, Rear View | Sea-Doo / Sea-Doo Boats / 2009 / Challenger / 230 Challenger SP, 2 x 155 NA, 200 | 53 |
| SEA_DOO_EN_US | 09- Seat, Rear View | Sea-Doo / Sea-Doo Boats / 2009 / Challenger / 230 Challenger SP, 2 x 215 SCIC, 2 | 53 |
| SEA_DOO_EN_US | 09- Seat, Rear View | Sea-Doo / Sea-Doo Boats / 2009 / Challenger / 230 Challenger, 2 x 155 NA, 2009 0 | 43 |
| SEA_DOO_EN_US | 09- Seat, Rear View | Sea-Doo / Sea-Doo Boats / 2009 / WAKE / 230 Wake, 2 x 215 SCIC, 2009 000789W00 0 | 53 |
| SEA_DOO_EN_US | 09- Seat, Rear View | Sea-Doo / Sea-Doo Boats / 2009 / WAKE / 230 Wake, 2 x 255 HO, 2009 000799W00 000 | 53 |
| SEA_DOO_EN_US | 09- Seat 1 | Sea-Doo / Sea-Doo Boats / 2010 / Challenger / 210 Challenger 310, 2x155 1503NA E | 44 |
| SEA_DOO_EN_US | 09- Seat 1 | Sea-Doo / Sea-Doo Boats / 2010 / Challenger / 210 Challenger SE 310, 2x155 1503N | 44 |
| SEA_DOO_EN_US | 09- Seat 1 | Sea-Doo / Sea-Doo Boats / 2010 / Challenger / 210 Challenger SE 430, 2x215 1503S | 44 |
| SEA_DOO_EN_US | 09- Seat, Rear View | Sea-Doo / Sea-Doo Boats / 2010 / Challenger / 230 Challenger 310, 2x155 1503NA, | 46 |
| SEA_DOO_EN_US | 09- Seat, Rear View | Sea-Doo / Sea-Doo Boats / 2010 / Challenger / 230 Challenger SE 430, 2x215 1503S | 46 |
| SEA_DOO_EN_US | 09- Seat, Rear View | Sea-Doo / Sea-Doo Boats / 2010 / Challenger / 230 Challenger SE 510, 2x255 1503H | 46 |
| SEA_DOO_EN_US | 09- Seat, Rear View | Sea-Doo / Sea-Doo Boats / 2010 / Challenger / 230 Challenger SP 310, 2x155 1503N | 53 |
| SEA_DOO_EN_US | 09- Seat, Rear View | Sea-Doo / Sea-Doo Boats / 2010 / Challenger / 230 Challenger SP 430, 2x215 1503S | 53 |
| SEA_DOO_EN_US | 09- Seat 1 | Sea-Doo / Sea-Doo Boats / 2010 / WAKE / 210 Wake 310, 2x155 1503NA ETC, 2010 000 | 44 |
| SEA_DOO_EN_US | 09- Seat 1 | Sea-Doo / Sea-Doo Boats / 2010 / WAKE / 210 Wake with Tower, 2x215 1503SCIC ETC, | 44 |
| SEA_DOO_EN_US | 09- Seat, Rear View | Sea-Doo / Sea-Doo Boats / 2010 / WAKE / 230 Wake SE 430, 2x215 1503SCIC, 2010 00 | 53 |
| SEA_DOO_EN_US | 09- Seat, Rear View | Sea-Doo / Sea-Doo Boats / 2010 / WAKE / 230 Wake SE 510, 2x255 1503HO, 2010 0007 | 53 |
| SEA_DOO_EN_US | 09- Seat | Sea-Doo / Sea-Doo Boats / 2011 / Challenger / 210 Challenger 310, 2011 00058BE00 | 45 |
| SEA_DOO_EN_US | 09- Seat | Sea-Doo / Sea-Doo Boats / 2011 / Challenger / 210 Challenger SE 310, 2011 00058B | 45 |
| SEA_DOO_EN_US | 09- Seat | Sea-Doo / Sea-Doo Boats / 2011 / Challenger / 210 Challenger SE 430, 2011 00059B | 45 |
| SEA_DOO_EN_US | 09- Seat 3 | Sea-Doo / Sea-Doo Boats / 2011 / Challenger / 230 Challenger 310, 2011 00077BA00 | 87 |
| SEA_DOO_EN_US | 09- Seat 3 | Sea-Doo / Sea-Doo Boats / 2011 / Challenger / 230 Challenger SE 310, 2011 00077B | 87 |
| SEA_DOO_EN_US | 09- Seat 3 | Sea-Doo / Sea-Doo Boats / 2011 / Challenger / 230 Challenger SE 430, 2011 00078B | 87 |
| SEA_DOO_EN_US | 09- Seat 3 | Sea-Doo / Sea-Doo Boats / 2011 / Challenger / 230 Challenger SE 510, 2011 00079B | 87 |
| SEA_DOO_EN_US | 09- Seat | Sea-Doo / Sea-Doo Boats / 2011 / SP / 210 SP 310, 2011 00058BN00 / 09- Seat | 45 |
| SEA_DOO_EN_US | 09- Seat 3 | Sea-Doo / Sea-Doo Boats / 2011 / SP / 230 SP 430, 2011 00078BN00 / 09- Seat 3 | 87 |
| SEA_DOO_EN_US | 09- Seat | Sea-Doo / Sea-Doo Boats / 2011 / WAKE / 210 Wake 310, 2011 00058BW00 / 09- Seat | 45 |
| SEA_DOO_EN_US | 09- Seat | Sea-Doo / Sea-Doo Boats / 2011 / WAKE / 210 Wake 430, 2011 00059BW00 / 09- Seat | 45 |
| SEA_DOO_EN_US | 09- Seat 3 | Sea-Doo / Sea-Doo Boats / 2011 / WAKE / 230 Wake 430, 2011 00078BW00 / 09- Seat | 87 |
| SEA_DOO_EN_US | 09- Seat 1 | Sea-Doo / Sea-Doo Boats / 2011 / WAKE / 230 Wake 510, 2011 00079BW00 00079BY00 / | 87 |
| SEA_DOO_EN_US | 09- Seat 3 | Sea-Doo / Sea-Doo Boats / 2011 / WAKE / 230 Wake 510, 2011 00079BW00 00079BY00 / | 87 |
| SEA_DOO_EN_US | 09- Seat | Sea-Doo / Sea-Doo Boats / 2012 / Challenger / 210 Challenger & Challenger S 260, | 45 |
| SEA_DOO_EN_US | 09- Seat | Sea-Doo / Sea-Doo Boats / 2012 / Challenger / 210 Challenger S & Challenger SE 3 | 45 |
| SEA_DOO_EN_US | 09- Seat | Sea-Doo / Sea-Doo Boats / 2012 / Challenger / 210 Challenger SE 430, 2012 00059C | 45 |
| SEA_DOO_EN_US | 09- Seat 2 | Sea-Doo / Sea-Doo Boats / 2012 / Challenger / 230 Challenger & Challenger SE 310 | 775 |
| SEA_DOO_EN_US | 09- Seat 2 | Sea-Doo / Sea-Doo Boats / 2012 / Challenger / 230 Challenger & Challenger SE 310 | 1070 |
| SEA_DOO_EN_US | 09- Seat 2 | Sea-Doo / Sea-Doo Boats / 2012 / Challenger / 230 Challenger SE 430, 2012 00078C | 775 |
| SEA_DOO_EN_US | 09- Seat 2 | Sea-Doo / Sea-Doo Boats / 2012 / Challenger / 230 Challenger SE 430, 2012 00078C | 1070 |
| SEA_DOO_EN_US | 09- Seat 2 | Sea-Doo / Sea-Doo Boats / 2012 / Challenger / 230 Challenger SE 520, 2012 00079C | 775 |
| SEA_DOO_EN_US | 09- Seat 2 | Sea-Doo / Sea-Doo Boats / 2012 / Challenger / 230 Challenger SE 520, 2012 00079C | 1070 |
| SEA_DOO_EN_US | 09- Seat | Sea-Doo / Sea-Doo Boats / 2012 / SP / 210 SP 310, 2012 00058CM00 00058CN00 / 09- | 45 |
| SEA_DOO_EN_US | 09- Seat | Sea-Doo / Sea-Doo Boats / 2012 / SP / 210 SP 430, 2012 00059CR00 00059CS00 / 09- | 45 |
| SEA_DOO_EN_US | 09- Seat 2 | Sea-Doo / Sea-Doo Boats / 2012 / SP / 230 SP 430, 2012 00078CN00 00078CS00 00078 | 775 |
| SEA_DOO_EN_US | 09- Seat 2 | Sea-Doo / Sea-Doo Boats / 2012 / SP / 230 SP 430, 2012 00078CN00 00078CS00 00078 | 1070 |
| SEA_DOO_EN_US | 09- Seat 2 | Sea-Doo / Sea-Doo Boats / 2012 / SP / 230 SP 520, 2012 00079CS00 00079CT00 / 09- | 775 |
| SEA_DOO_EN_US | 09- Seat 2 | Sea-Doo / Sea-Doo Boats / 2012 / SP / 230 SP 520, 2012 00079CS00 00079CT00 / 09- | 1070 |
| SEA_DOO_EN_US | 09- Seat | Sea-Doo / Sea-Doo Boats / 2012 / WAKE / 210 Wake 310, 2012 00058CK00 00058CW00 0 | 45 |
| SEA_DOO_EN_US | 09- Seat | Sea-Doo / Sea-Doo Boats / 2012 / WAKE / 210 Wake 430, 2012 00059CW00 00059CX00 / | 45 |
| SEA_DOO_EN_US | 09- Seat 2 | Sea-Doo / Sea-Doo Boats / 2012 / WAKE / 230 Wake 430, 2012 00078CW00 00078CX00 / | 775 |
| SEA_DOO_EN_US | 09- Seat 2 | Sea-Doo / Sea-Doo Boats / 2012 / WAKE / 230 Wake 430, 2012 00078CW00 00078CX00 / | 1070 |
| SEA_DOO_EN_US | 09- Seat 2 | Sea-Doo / Sea-Doo Boats / 2012 / WAKE / 230 Wake 520, 2012 00079CW00 00079CX00 0 | 775 |
| SEA_DOO_EN_US | 09- Seat 2 | Sea-Doo / Sea-Doo Boats / 2012 / WAKE / 230 Wake 520, 2012 00079CW00 00079CX00 0 | 1070 |
