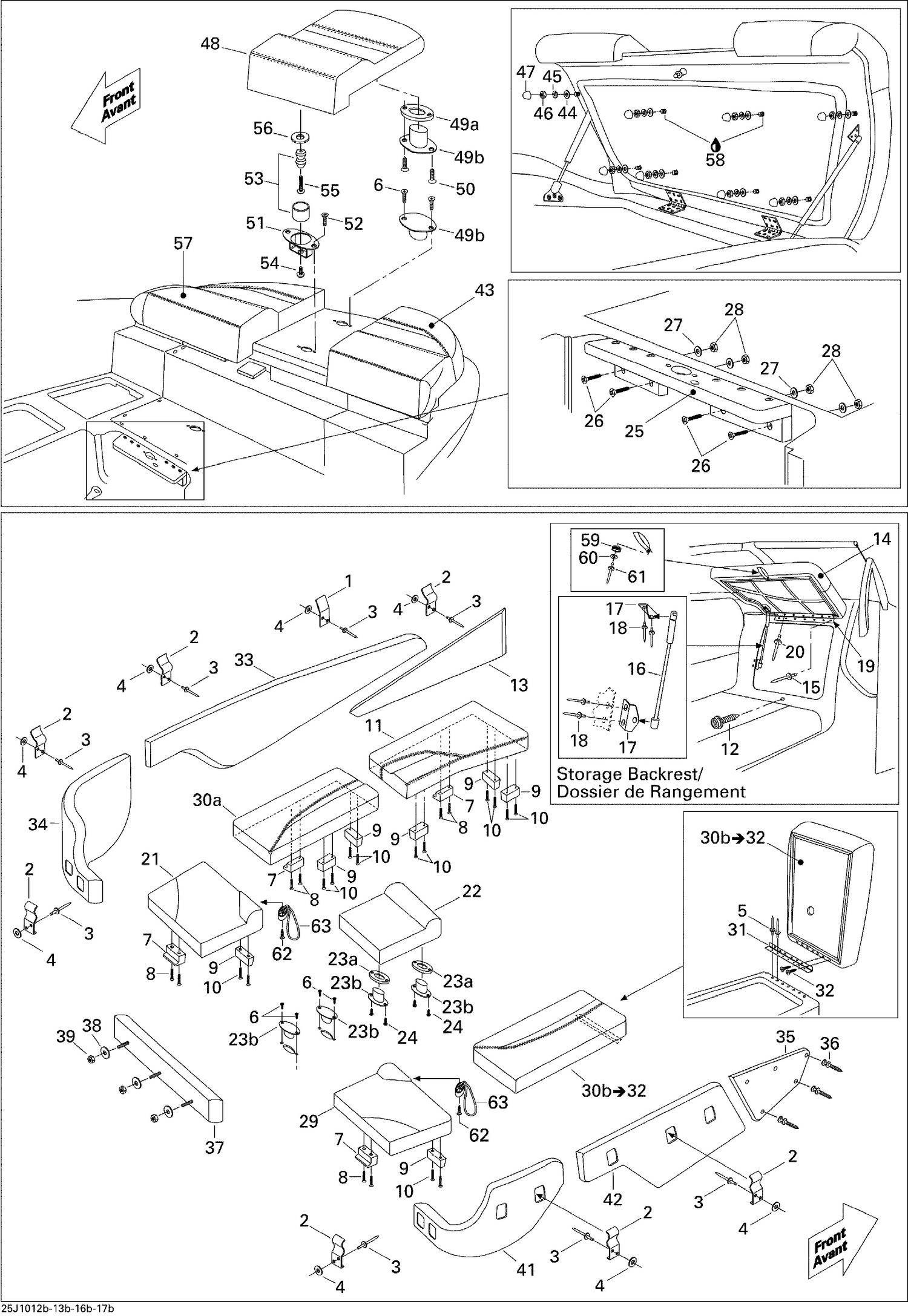

| Ref | Part Number | Description |
|---|
| 1 |
204611531 |
RETAINING CLIP - Call your local BRP dealership |
| 2 |
204613998 |
SEAT SUPPORT - Call your local BRP dealership |
| 3 |
293150043 |
Pop Rivet 3/16" |
| 4 |
234061600 |
Stainless Flat Washer M6 |
| 5 |
293150008 |
Pop Rivet 3/16" This part replaces 293150011. |
| 6 |
204100054 |
SCREW 8 X 3/4? - Call your local BRP dealership |
| 7 |
204611940 |
SEAT LATCH - Call your local BRP dealership |
| 8 |
204100039 |
SCREW 1/4?-20 X 2? - Call your local BRP dealership |
| 9 |
204611805 |
LATCH - Call your local BRP dealership |
| 10 |
204100219 |
SCREW-PAN HD.#10-32 X 1-1/4 SS - Call your local BRP dealership |
| 11 |
204614949 |
SPOTTER'S SEAT CUSHION ASS'Y - Call your local BRP dealership |
| 12 |
202000159 |
SCREW-STUD TAPP. 3/8 SS - Call your local BRP dealership |
| 13 |
269001966 |
BACKREST ASSY/GUNNEL-SPOTTER - Call your local BRP dealership This part replaces 204614952. |
| 14 |
269001967 |
BACKREST ASSY/STORAGE-SPOTTER - Call your local BRP dealership This part replaces 204615033. |
| 15 |
293150043 |
Pop Rivet 3/16" |
| 16 |
204072218 |
GAS SHOCK - Call your local BRP dealership |
| 17 |
204073074 |
Shock Bracket |
| 18 |
293150008 |
Pop Rivet 3/16" This part replaces 293150011. |
| 19 |
204613980 |
Hinge |
| 20 |
293150008 |
Pop Rivet 3/16" This part replaces 293150011. |
| 21 |
204614956 |
Rear Cushion, Port Side |
| 22 |
204614958 |
REAR CENTER CUSHION - Call your local BRP dealership |
| 23a |
204130219 |
SPACER MAGNET 1/8'' - Call your local BRP dealership |
| 23b |
204614513 |
MAGNETIC CATCH ASS'Y - Call your local BRP dealership |
| 24 |
204100054 |
SCREW 8 X 3/4? - Call your local BRP dealership |
| 25 |
204614709 |
SEAT SUPPORT ASS'Y - Call your local BRP dealership |
| 26 |
208564060 |
PHILLIPS SCREW M6 X 40 - Call your local BRP dealership |
| 27 |
234062600 |
Flat Washer M6, Stainless |
| 28 |
232561600 |
Hex. Elastic Stop Nut M6 |
| 29 |
204614960 |
REAR CUSHION, STARBOARD - Call your local BRP dealership |
| 30a |
204614962 |
Rear Side Cushion, Port Side |
| 31 |
204613980 |
Hinge |
| 32 |
204100054 |
SCREW 8 X 3/4? - Call your local BRP dealership |
| 33 |
269001973 |
REAR SIDE BACKREST, PORT SIDE - Call your local BRP dealership This part replaces 204614966. |
| 34 |
269001974 |
REAR SIDE BACKREST, PORT SIDE - Call your local BRP dealership This part replaces 204614968. |
| 35 |
204614970 |
REAR SIDE FLAT BACKREST, STARBOARD - Call your local BRP dealership |
| 36 |
204130264 |
Dart 1", White |
| 37 |
269001976 |
REAR CENTER BACKREST - Call your local BRP dealership This part replaces 204614972. |
| 38 |
234082600 |
Flat Washer 8 mm, Stainless |
| 39 |
211100026 |
HEX. NUT 1/4 - Call your local BRP dealership |
| 41 |
269001977 |
REAR SIDE BACKREST, STARBOARD SIDE - Call your local BRP dealership This part replaces 204614974. |
| 42 |
269001978 |
REAR SIDE BACKREST, STARBOARD SIDE - Call your local BRP dealership This part replaces 204614976. |
| 43 |
204615001 |
Sundeck Cushion, Port Side |
| 44 |
234082600 |
Flat Washer 8 mm, Stainless |
| 45 |
211200025 |
Lock Washer 1/4” |
| 46 |
211100026 |
HEX. NUT 1/4 - Call your local BRP dealership |
| 47 |
204130008 |
Plastic Cap, White |
| 48 |
204615003 |
SUNDECK CUSHION, CENTRAL - Call your local BRP dealership |
| 49a |
204130219 |
SPACER MAGNET 1/8'' - Call your local BRP dealership |
| 49b |
204614513 |
MAGNETIC CATCH ASS'Y - Call your local BRP dealership |
| 50 |
204100054 |
SCREW 8 X 3/4? - Call your local BRP dealership |
| 51 |
204614762 |
HOLDER - Call your local BRP dealership |
| 52 |
204100054 |
SCREW 8 X 3/4? - Call your local BRP dealership |
| 53 |
269002153 |
HOLDER DOOR ASS'Y - Call your local BRP dealership This part replaces 204614760. |
| 54 |
204100122 |
SCREW-PAN HD. 10-24 UNC X .50 SS - Call your local BRP dealership |
| 55 |
204100236 |
SCREW-HEX.HD.MACHINE #10 X 1 - Call your local BRP dealership |
| 56 |
211200033 |
FLAT WASHER - Call your local BRP dealership |
| 57 |
204615005 |
Sundeck Cushion, Starboard |
| 58 |
293800060 |
Loctite 243, 10 ml |
| 59 |
204000083 |
SNAP BASE - Call your local BRP dealership |
| 60 |
234051600 |
Flat Washer M5, Stainless |
| 61 |
293150016 |
Rivet 1/8" |
| 62 |
204100126 |
PHILLIPS FORMING SCREW M8 X 3/4? - Call your local BRP dealership |
