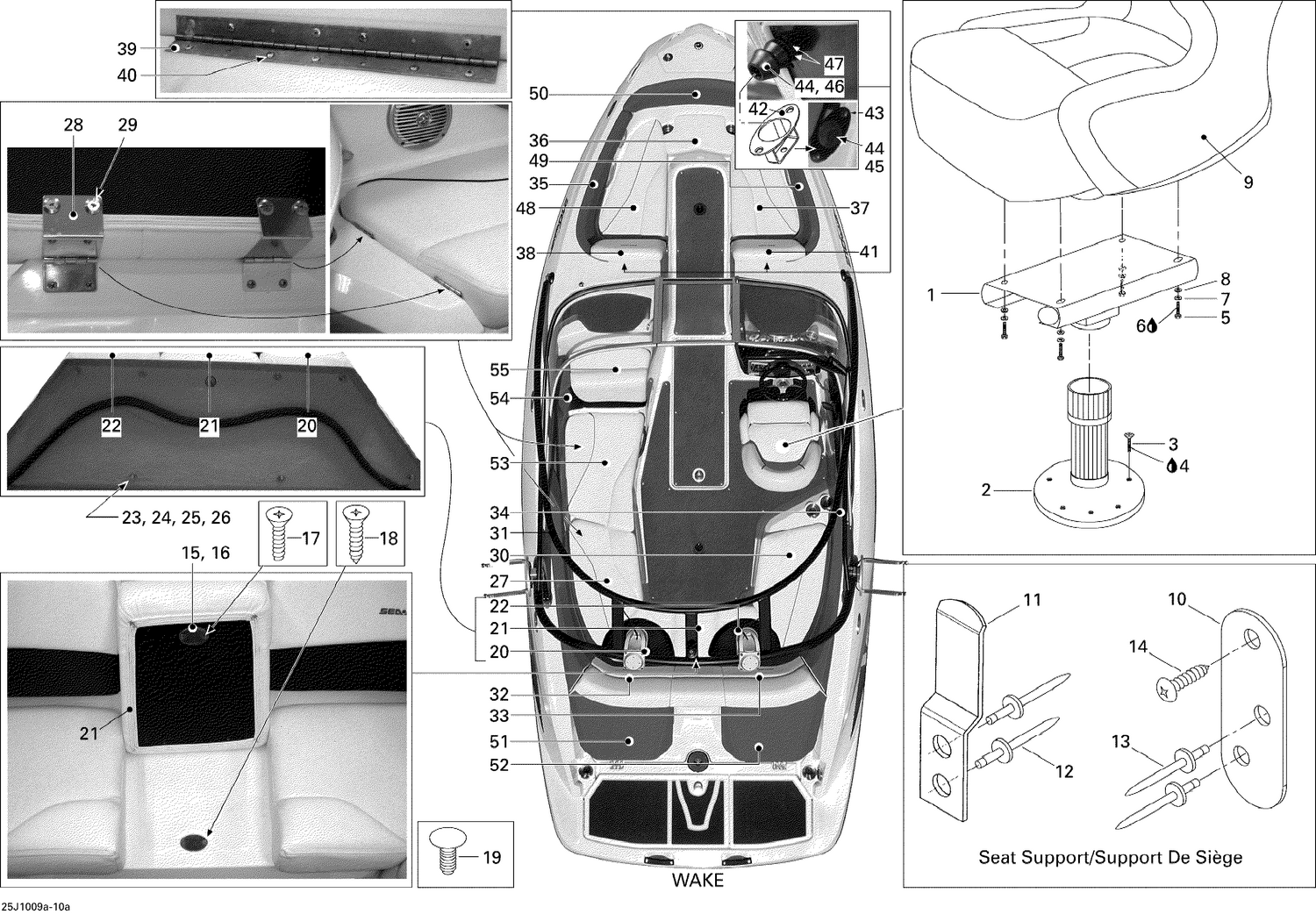

| Ref | Part Number | Description |
|---|
| 1 |
204613742 |
SLIDE AND SWIVEL SEAT BASE - Call your local BRP dealership |
| 2 |
269001903 |
SEAT PEDESTAL - Call your local BRP dealership |
| 3 |
204100201 |
PHILLIPS SCREW 1/4-20 X 1-1/4 - Call your local BRP dealership |
| 4 |
293800060 |
Loctite 243, 10 ml |
| 5 |
204100134 |
TAPPING SCREW 1/4-20 X 3/4 - Call your local BRP dealership |
| 6 |
293800060 |
Loctite 243, 10 ml |
| 7 |
211200025 |
Lock Washer 1/4” |
| 8 |
234082600 |
Flat Washer 8 mm, Stainless |
| 9 |
269001767 |
Bucket Seat |
| 10 |
269001696 |
SEAT SUPPORT - Call your local BRP dealership |
| 11 |
269001695 |
SEAT SUPPORT - Call your local BRP dealership |
| 12 |
293150043 |
Pop Rivet 3/16" |
| 13 |
293150029 |
RIVET_POP 5/32 - Call your local BRP dealership |
| 14 |
204100030 |
Phillips Screw #8 X 1/2” |
| 15 |
204130219 |
SPACER MAGNET 1/8'' - Call your local BRP dealership |
| 16 |
204614513 |
MAGNETIC CATCH ASS'Y - Call your local BRP dealership |
| 17 |
204100054 |
SCREW 8 X 3/4? - Call your local BRP dealership |
| 18 |
208442060 |
PHILLIPS SCREW M4 X 20 - Call your local BRP dealership |
| 19 |
XXX |
Not Available As Spare Parts |
| 20 |
269002142 |
REAR CUSHION ASS'Y, PORT SIDE - Call your local BRP dealership This part replaces 269001790. |
| 21 |
269001792 |
Rear Center Cushion Ass'y |
| 22 |
269001794 |
Rear Cushion Ass'y, Starboard |
| 23 |
211100026 |
HEX. NUT 1/4 - Call your local BRP dealership |
| 24 |
234180602 |
Lock Spring Washer 8 mm, Stainless |
| 25 |
234082600 |
Flat Washer 8 mm, Stainless |
| 26 |
204130008 |
Plastic Cap, White |
| 27 |
269001772 |
Lateral Cushion Ass'y, Port |
| 28 |
269001590 |
HINGE, 90 - Call your local BRP dealership |
| 29 |
204100095 |
SLOTTED BOLT 1/4?-20 X 1? - Call your local BRP dealership |
| 30 |
269002146 |
WRAP AROUND CUSHION ASS'Y, STARBOARD - Call your local BRP dealership This part replaces 269001796. |
| 31 |
269002044 |
REAR LATERAL BACKREST ASS'Y, ALAB PORT - Call your local BRP dealership This part replaces 269001798. |
| 32 |
269002722 |
BACKREST ASSY/REAR-PORT - Call your local BRP dealership This part replaces 269001800. |
| 33 |
269002723 |
BACKREST ASSY/REAR-STBD - Call your local BRP dealership This part replaces 269001803. |
| 34 |
269002046 |
REAR LATERAL BACKREST ASS'Y, ALAB, STARB - Call your local BRP dealership This part replaces 269001805. |
| 35 |
269001807 |
Front Lateral Backrest Ass'y, Port |
| 36 |
269002565 |
FRONT CENTER CUSHION ASS'Y, BOW - Call your local BRP dealership This part replaces 269001809. |
| 37 |
269001811 |
Front Lateral Cushion Ass'y, Starboard |
| 38 |
269002259 |
BACKREST ACCESS DOOR, PORT - Call your local BRP dealership This part replaces 269001813. |
| 39 |
204613980 |
Hinge |
| 40 |
293150008 |
Pop Rivet 3/16" This part replaces 293150011. |
| 41 |
269002260 |
BACKREST ACCESS DOOR, STARBOARD - Call your local BRP dealership This part replaces 269001815. |
| 42 |
204614762 |
HOLDER - Call your local BRP dealership |
| 43 |
204100054 |
SCREW 8 X 3/4? - Call your local BRP dealership |
| 44 |
269002153 |
HOLDER DOOR ASS'Y - Call your local BRP dealership This part replaces 204614760. |
| 45 |
204100122 |
SCREW-PAN HD. 10-24 UNC X .50 SS - Call your local BRP dealership |
| 46 |
204100236 |
SCREW-HEX.HD.MACHINE #10 X 1 - Call your local BRP dealership |
| 47 |
211200033 |
FLAT WASHER - Call your local BRP dealership |
| 48 |
269002062 |
FRONT LATERAL CUSHION, PORT SIDE - Call your local BRP dealership This part replaces 269001817. |
| 49 |
269002064 |
FRONT LATERAL BACKREST ASS'Y, ALAB., STA - Call your local BRP dealership This part replaces 269001819. |
| 50 |
269002066 |
FRONT CENTER BACKREST, ALABASTER - Call your local BRP dealership This part replaces 269001821. |
| 51 |
269002264 |
SUNDECK CUSHION, PORT - Call your local BRP dealership This part replaces 269001824. |
| 52 |
269002266 |
SUNDECK CUSHION, STARBOARD - Call your local BRP dealership This part replaces 269001826. |
| 53 |
269002158 |
CUSHION ASS'Y, SPOTTER - Call your local BRP dealership This part replaces 269001775. |
| 54 |
269001785 |
BACKREST SPOTTER, PORT - Call your local BRP dealership |
