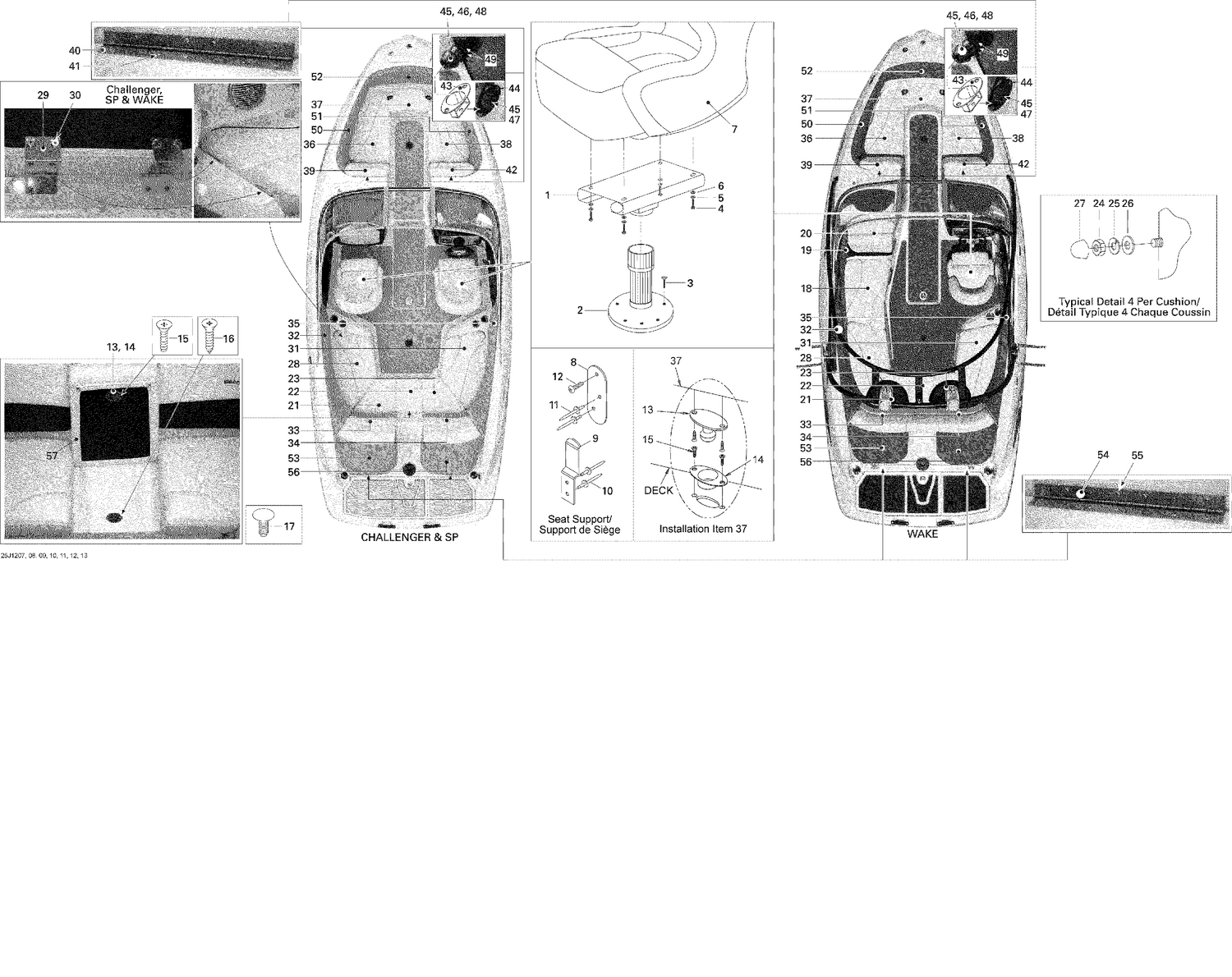

| Ref | Part Number | Description |
|---|
| 1 |
204613742 |
SLIDE AND SWIVEL SEAT BASE - Call your local BRP dealership |
| 2 |
269001903 |
SEAT PEDESTAL - Call your local BRP dealership |
| 3 |
204100201 |
PHILLIPS SCREW 1/4-20 X 1-1/4 - Call your local BRP dealership |
| 4 |
211000054 |
HEX. SCREW 1/4-20 X 1?, SCOTCH GRIP - Call your local BRP dealership |
| 5 |
211200025 |
Lock Washer 1/4” |
| 6 |
234082600 |
Flat Washer 8 mm, Stainless |
| 7 |
269002407 |
Busket Seat |
| 8 |
269001696 |
SEAT SUPPORT - Call your local BRP dealership |
| 9 |
269001695 |
SEAT SUPPORT - Call your local BRP dealership |
| 10 |
293150043 |
Pop Rivet 3/16" |
| 11 |
293150029 |
RIVET_POP 5/32 - Call your local BRP dealership |
| 12 |
204100030 |
Phillips Screw #8 X 1/2” |
| 15 |
204100054 |
SCREW 8 X 3/4? - Call your local BRP dealership |
| 16 |
208442060 |
PHILLIPS SCREW M4 X 20 - Call your local BRP dealership |
| 17 |
XXX |
Not Available As Spare Parts |
| 18 |
XXX |
Not Available As Spare Parts |
| 19 |
XXX |
Not Available As Spare Parts |
| 20 |
XXX |
Not Available As Spare Parts |
| 21 |
269002558 |
REAR CUSHION ASS'Y, PORT SIDE - Call your local BRP dealership |
| 22 |
269002559 |
REAR CUSHION ASS'Y, CENTER - Call your local BRP dealership |
| 23 |
269002560 |
REAR CUSHION ASS'Y, STARBOARD SIDE - Call your local BRP dealership |
| 24 |
211100026 |
HEX. NUT 1/4 - Call your local BRP dealership |
| 25 |
234180602 |
Lock Spring Washer 8 mm, Stainless |
| 26 |
234082600 |
Flat Washer 8 mm, Stainless |
| 27 |
204130008 |
Plastic Cap, White |
| 28 |
269002561 |
WRAP ARROUND CUSHION ASS'Y, PORT SIDE - Call your local BRP dealership |
| 29 |
269001590 |
HINGE, 90 - Call your local BRP dealership |
| 30 |
204100095 |
SLOTTED BOLT 1/4?-20 X 1? - Call your local BRP dealership |
| 31 |
269002041 |
LATERAL CUSHION ASS'Y, ALABASTER, STARBO - Call your local BRP dealership This part replaces 269002562. |
| 32 |
269002044 |
REAR LATERAL BACKREST ASS'Y, ALAB PORT - Call your local BRP dealership |
| 33 |
269002722 |
BACKREST ASSY/REAR-PORT - Call your local BRP dealership This part replaces 269002253. |
| 34 |
269002723 |
BACKREST ASSY/REAR-STBD - Call your local BRP dealership This part replaces 269002254. |
| 35 |
269002046 |
REAR LATERAL BACKREST ASS'Y, ALAB, STARB - Call your local BRP dealership |
| 36 |
269002563 |
FRONT CUSHION ASS'Y, BOW PORT SIDE - Call your local BRP dealership |
| 38 |
269002564 |
FRONT CUSHION ASS'Y, STARBOARD - Call your local BRP dealership |
| 39 |
269002413 |
BACKREST ACCESS DOOR, PORT - Call your local BRP dealership |
| 40 |
204613980 |
Hinge |
| 41 |
293150008 |
Pop Rivet 3/16" This part replaces 293150011. |
| 42 |
269002415 |
BACKREST ACCESS DOOR, STARBORD - Call your local BRP dealership |
| 43 |
204614762 |
HOLDER - Call your local BRP dealership |
| 44 |
204100054 |
SCREW 8 X 3/4? - Call your local BRP dealership |
| 45 |
269002153 |
HOLDER DOOR ASS'Y - Call your local BRP dealership |
| 46 |
204100220 |
Pan Head Screw 10-32 X 1/2" |
| 47 |
212100005 |
Hex. Nut |
| 48 |
204100236 |
SCREW-HEX.HD.MACHINE #10 X 1 - Call your local BRP dealership |
| 49 |
211200033 |
FLAT WASHER - Call your local BRP dealership |
| 50 |
269002062 |
FRONT LATERAL CUSHION, PORT SIDE - Call your local BRP dealership |
| 51 |
269002064 |
FRONT LATERAL BACKREST ASS'Y, ALAB., STA - Call your local BRP dealership |
| 52 |
269002442 |
FRONT CENTER BACKREST - Call your local BRP dealership |
| 54 |
204613980 |
Hinge |
| 55 |
204100054 |
SCREW 8 X 3/4? - Call your local BRP dealership |
