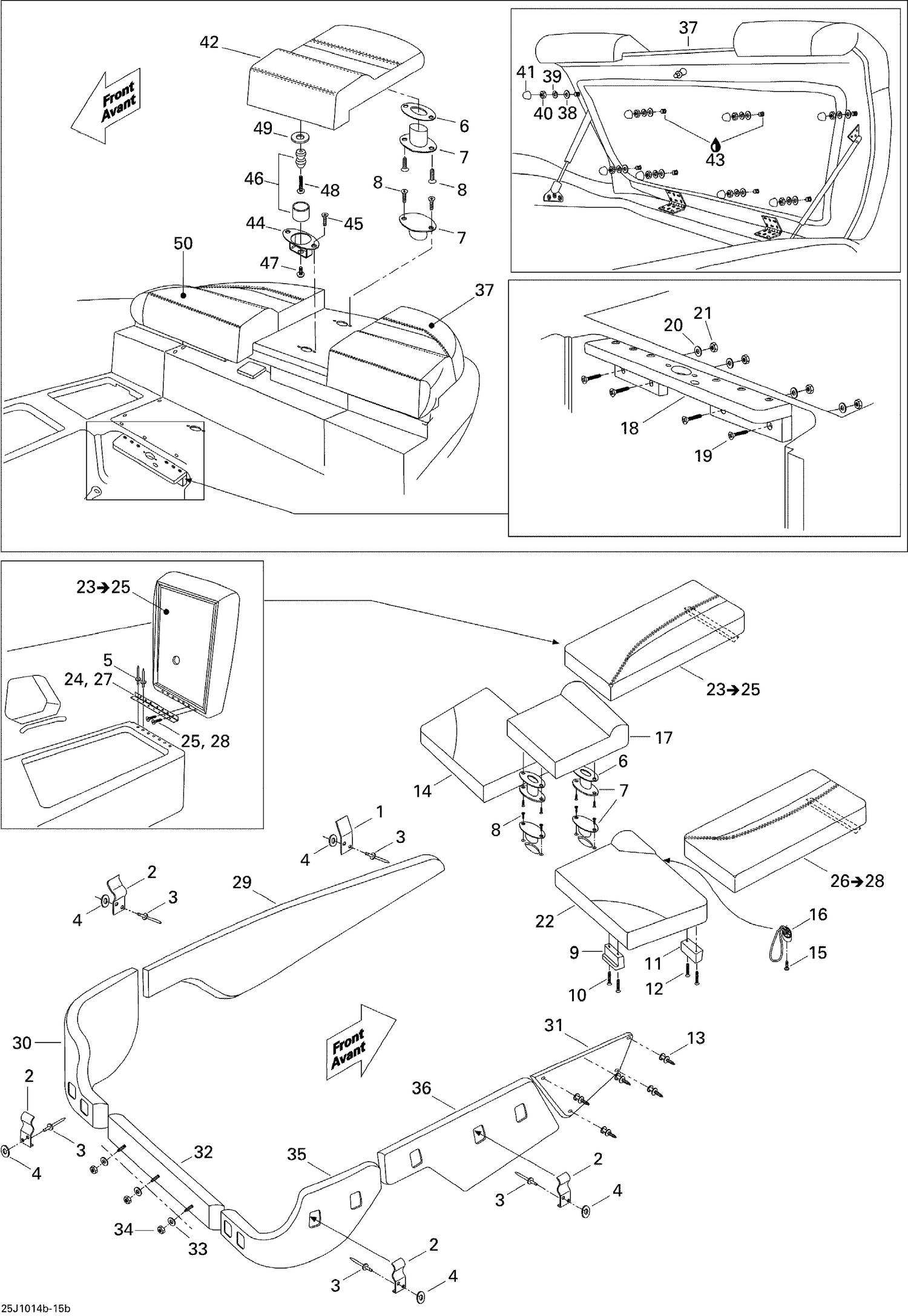

| Ref | Part Number | Description |
|---|
| 1 |
204611531 |
RETAINING CLIP - Call your local BRP dealership |
| 2 |
204613998 |
SEAT SUPPORT - Call your local BRP dealership |
| 3 |
293150043 |
Pop Rivet 3/16" |
| 4 |
234061600 |
Stainless Flat Washer M6 |
| 5 |
293150008 |
Pop Rivet 3/16" This part replaces 293150011. |
| 6 |
204130219 |
SPACER MAGNET 1/8'' - Call your local BRP dealership |
| 7 |
204614513 |
MAGNETIC CATCH ASS'Y - Call your local BRP dealership |
| 8 |
204100054 |
SCREW 8 X 3/4? - Call your local BRP dealership |
| 9 |
204611940 |
SEAT LATCH - Call your local BRP dealership |
| 10 |
204100039 |
SCREW 1/4?-20 X 2? - Call your local BRP dealership |
| 11 |
204611805 |
LATCH - Call your local BRP dealership |
| 12 |
204100219 |
SCREW-PAN HD.#10-32 X 1-1/4 SS - Call your local BRP dealership |
| 13 |
204130264 |
Dart 1", White |
| 14 |
204614896 |
Rear Cushion Ass'y, Port |
| 15 |
204100058 |
Phillips Tapping Screw |
| 16 |
204615049 |
Retention Cord With Clip |
| 17 |
269001940 |
CUSHION ASSY/REAR-CENTER - Call your local BRP dealership This part replaces 204614898. |
| 18 |
204614709 |
SEAT SUPPORT ASS'Y - Call your local BRP dealership |
| 19 |
208564060 |
PHILLIPS SCREW M6 X 40 - Call your local BRP dealership |
| 20 |
234062600 |
Flat Washer M6, Stainless |
| 21 |
232561600 |
Hex. Elastic Stop Nut M6 |
| 22 |
269001941 |
CUSHION ASSY/REAR-STBD - Call your local BRP dealership This part replaces 204614900. |
| 24 |
204613980 |
Hinge |
| 25 |
204100054 |
SCREW 8 X 3/4? - Call your local BRP dealership |
| 27 |
204613980 |
Hinge |
| 28 |
204100054 |
SCREW 8 X 3/4? - Call your local BRP dealership |
| 29 |
269001944 |
REAR SIDE BACKREST, PORT SIDE - Call your local BRP dealership This part replaces 204614906. |
| 30 |
269001945 |
REAR SIDE BACKREST, PORT SIDE - Call your local BRP dealership This part replaces 204614908. |
| 31 |
204614910 |
FRONT FLAT BACKREST, STARBOARD - Call your local BRP dealership |
| 32 |
269001947 |
REAR CENTER BACKREST - Call your local BRP dealership This part replaces 204614912. |
| 33 |
234082600 |
Flat Washer 8 mm, Stainless |
| 34 |
211100026 |
HEX. NUT 1/4 - Call your local BRP dealership |
| 35 |
269001948 |
REAR SIDE BACKREST, STARBOARD SIDE - Call your local BRP dealership This part replaces 204614914. |
| 36 |
269001949 |
REAR SIDE BACKREST, STARBOARD SIDE - Call your local BRP dealership This part replaces 204614916. |
| 37 |
204615030 |
Sundeck Cushion, Port |
| 38 |
234082600 |
Flat Washer 8 mm, Stainless |
| 39 |
211200025 |
Lock Washer 1/4” |
| 40 |
211100026 |
HEX. NUT 1/4 - Call your local BRP dealership |
| 41 |
204130008 |
Plastic Cap, White |
| 42 |
269002595 |
SUNDECK CUSHION ASS'Y, CENTER - Call your local BRP dealership This part replaces 204614942. |
| 43 |
293800060 |
Loctite 243, 10 ml |
| 44 |
204614762 |
HOLDER - Call your local BRP dealership |
| 45 |
204100054 |
SCREW 8 X 3/4? - Call your local BRP dealership |
| 46 |
269002153 |
HOLDER DOOR ASS'Y - Call your local BRP dealership This part replaces 204614760. |
| 47 |
204100122 |
SCREW-PAN HD. 10-24 UNC X .50 SS - Call your local BRP dealership |
| 48 |
204100236 |
SCREW-HEX.HD.MACHINE #10 X 1 - Call your local BRP dealership |
| 49 |
211200033 |
FLAT WASHER - Call your local BRP dealership |
