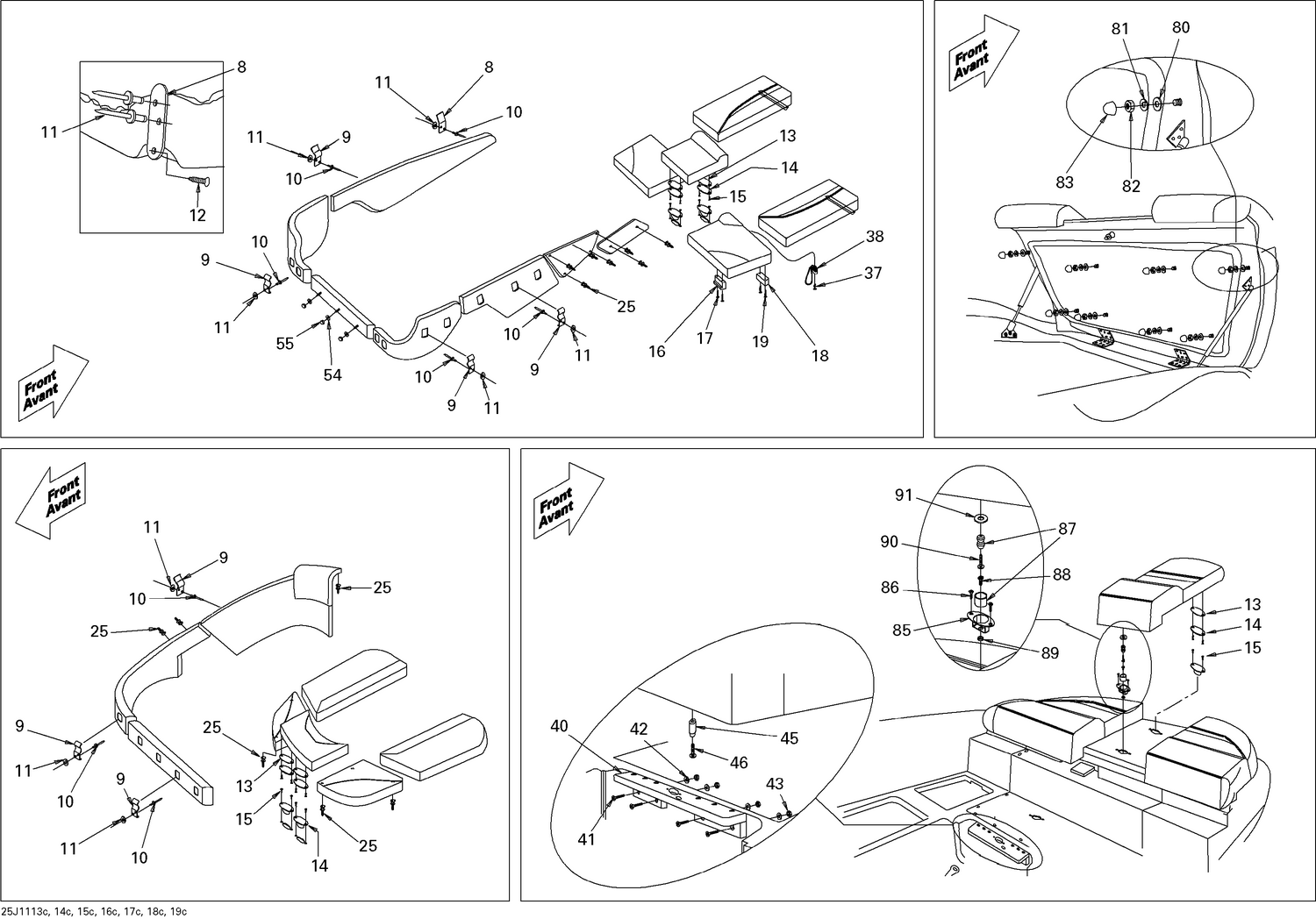

| Ref | Part Number | Description |
|---|
| 8 |
204611531 |
RETAINING CLIP - Call your local BRP dealership |
| 9 |
204613998 |
SEAT SUPPORT - Call your local BRP dealership |
| 10 |
293150043 |
Pop Rivet 3/16" |
| 11 |
234061600 |
Stainless Flat Washer M6 |
| 12 |
Not |
Available As Spare Part - Screw |
| 13 |
204130219 |
SPACER MAGNET 1/8'' - Call your local BRP dealership |
| 14 |
204614513 |
MAGNETIC CATCH ASS'Y - Call your local BRP dealership |
| 15 |
204100054 |
SCREW 8 X 3/4? - Call your local BRP dealership |
| 16 |
204611940 |
SEAT LATCH - Call your local BRP dealership |
| 17 |
204100039 |
SCREW 1/4?-20 X 2? - Call your local BRP dealership |
| 18 |
204611805 |
LATCH - Call your local BRP dealership |
| 19 |
204100219 |
SCREW-PAN HD.#10-32 X 1-1/4 SS - Call your local BRP dealership |
| 25 |
204130264 |
Dart 1", White |
| 37 |
204100058 |
Phillips Tapping Screw |
| 38 |
204615049 |
Retention Cord With Clip |
| 40 |
204614709 |
SEAT SUPPORT ASS'Y - Call your local BRP dealership |
| 41 |
208564060 |
PHILLIPS SCREW M6 X 40 - Call your local BRP dealership |
| 42 |
234062600 |
Flat Washer M6, Stainless |
| 43 |
232561600 |
Hex. Elastic Stop Nut M6 |
| 45 |
204130166 |
LOCATOR STUD - Call your local BRP dealership |
| 46 |
205053560 |
SOCKET SCREW M5 X 35 - Call your local BRP dealership |
| 54 |
234082600 |
Flat Washer 8 mm, Stainless |
| 55 |
211100026 |
HEX. NUT 1/4 - Call your local BRP dealership |
| 80 |
234082600 |
Flat Washer 8 mm, Stainless |
| 81 |
211200025 |
Lock Washer 1/4” |
| 82 |
211100026 |
HEX. NUT 1/4 - Call your local BRP dealership |
| 83 |
204130008 |
Plastic Cap, White |
| 85 |
204614762 |
HOLDER - Call your local BRP dealership |
| 86 |
204100054 |
SCREW 8 X 3/4? - Call your local BRP dealership |
| 87 |
269002153 |
HOLDER DOOR ASS'Y - Call your local BRP dealership |
| 88 |
204100220 |
Pan Head Screw 10-32 X 1/2" |
| 89 |
212100005 |
Hex. Nut |
| 90 |
204100236 |
SCREW-HEX.HD.MACHINE #10 X 1 - Call your local BRP dealership |
