8060-710
Rivet Price: $0.35

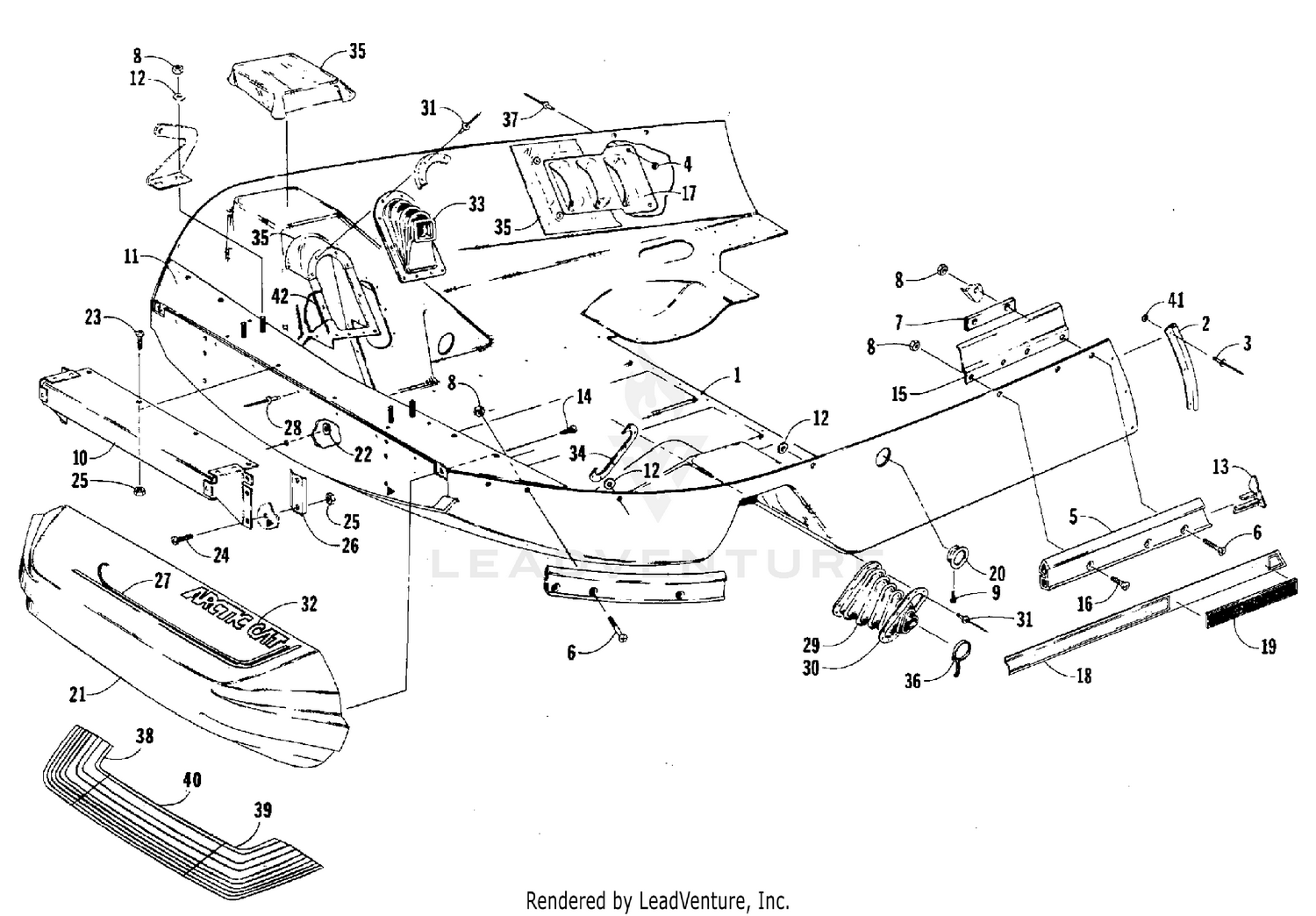

Схема сборки, где используется деталь
Used in (28 assemblies)
| Brand | Assembly | Path | Ref |
|---|---|---|---|
| ARC | BELLY PAN AND NOSE CONE ASSEMBLIES [55237] | Arctic Cat / SNOWMOBILE / 1988 / 1988 EL TIGRE 6000 (530 L/C) [0650-037-1988-13- | 31 |
| ARC | TUNNEL AND COOLING ASSEMBLIES [58018] | Arctic Cat / SNOWMOBILE / 1991 / 1991 COUGAR [0650-131-1991-16-07] / TUNNEL AND | 37 |
| ARC | BELLY PAN AND NOSE CONE ASSEMBLIES [58192] | Arctic Cat / SNOWMOBILE / 1991 / 1991 EL TIGRE EXT [0650-142-1991-16-13] / BELLY | 31 |
| ARC | FRONT FRAME, BELLY PAN AND FOOTREST ASSEMBLY [60966] | Arctic Cat / SNOWMOBILE / 1993 / 1993 EXT 580 Z [0650-255-1993-18-24] / FRONT FR | 25 |
| ARC | FRONT FRAME, BELLY PAN AND FOOTREST ASSEMBLY [60789] | Arctic Cat / SNOWMOBILE / 1993 / 1993 JAG Z [0650-245-1993-18-18] / FRONT FRAME, | 25 |
| ARC | BELLY PAN ASSEMBLY [63438] | Arctic Cat / SNOWMOBILE / 1996 / 1996 BEARCAT 340 [96BCA-1996-21-01] / BELLY PAN | 7 |
| ARC | BELLY PAN ASSEMBLY [63438] | Arctic Cat / SNOWMOBILE / 1996 / 1996 BEARCAT 340 [96BCA-1996-21-01] / BELLY PAN | 13 |
| ARC | HOOD AND WINDSHIELD ASSEMBLY [63435] | Arctic Cat / SNOWMOBILE / 1996 / 1996 BEARCAT 340 [96BCA-1996-21-01] / HOOD AND | 23 |
| ARC | BELLY PAN ASSEMBLY [63473] | Arctic Cat / SNOWMOBILE / 1996 / 1996 BEARCAT 440 [96BCB-1996-21-02] / BELLY PAN | 7 |
| ARC | BELLY PAN ASSEMBLY [63473] | Arctic Cat / SNOWMOBILE / 1996 / 1996 BEARCAT 440 [96BCB-1996-21-02] / BELLY PAN | 13 |
| ARC | BELLY PAN ASSEMBLY [63511] | Arctic Cat / SNOWMOBILE / 1996 / 1996 BEARCAT 550 [96BCC-1996-21-03] / BELLY PAN | 13 |
| ARC | HOOD AND WINDSHIELD ASSEMBLY [63518] | Arctic Cat / SNOWMOBILE / 1996 / 1996 BEARCAT 550 [96BCC-1996-21-03] / HOOD AND | 23 |
| ARC | BELLY PAN ASSEMBLY [63672] | Arctic Cat / SNOWMOBILE / 1996 / 1996 COUGAR 2-UP [96COC-1996-21-07] / BELLY PAN | 13 |
| ARC | BELLY PAN ASSEMBLY [63877] | Arctic Cat / SNOWMOBILE / 1996 / 1996 EXT POWDER SPECIAL [96ETI-1996-21-12] / BE | 13 |
| ARC | REAR SUSPENSION FRONT ARM ASSEMBLY [63946] | Arctic Cat / SNOWMOBILE / 1996 / 1996 JAG DELUXE [96JAB-1996-21-14] / REAR SUSPE | 8 |
| ARC | FRONT FRAME, BELLY PAN AND FOOTREST ASSEMBLY [63991] | Arctic Cat / SNOWMOBILE / 1996 / 1996 JAG LIQUID [96JAC-1996-21-15] / FRONT FRAM | 25 |
| ARC | REAR SUSPENSION FRONT ARM ASSEMBLY [63982] | Arctic Cat / SNOWMOBILE / 1996 / 1996 JAG LIQUID [96JAC-1996-21-15] / REAR SUSPE | 8 |
| ARC | REAR SUSPENSION FRONT ARM ASSEMBLY [66876] | Arctic Cat / SNOWMOBILE / 1998 / 1998 PANTERA 800 [98PTB-1998-23-24] / REAR SUSP | 21 |
| ARC | BELLY PAN ASSEMBLY [66681] | Arctic Cat / SNOWMOBILE / 1998 / 1998 POWDER EXTREME [98PEA-1998-23-19] / BELLY | 27 |
| ARC | REAR SUSPENSION FRONT ARM ASSEMBLY [66643] | Arctic Cat / SNOWMOBILE / 1998 / 1998 POWDER EXTREME [98PEA-1998-23-19] / REAR S | 21 |
| ARC | REAR SUSPENSION FRONT ARM ASSEMBLY [67267] | Arctic Cat / SNOWMOBILE / 1998 / 1998 ZR 600 EFI LE XC [98ZRC-1998-23-32] / REAR | 11 |
| ARC | TUNNEL, REAR BUMPER, AND SNOWFLAP ASSEMBLY [101264] | Arctic Cat / SNOWMOBILE / 2015 / 2015 XF 7000 SNO PRO LTD 137 GREEN [S2015XFULEU | 38 |
| ARC | TUNNEL, REAR BUMPER, AND SNOWFLAP ASSEMBLY [102158] | Arctic Cat / SNOWMOBILE / 2015 / 2015 XF 9000 SNO PRO LTD 137 GREEN [S2015XFNLEU | 39 |
| ARC | TUNNEL, REAR BUMPER, AND SNOWFLAP ASSEMBLY [101075] | Arctic Cat / SNOWMOBILE / 2015 / 2015 XF 9000 SNO PRO LTD 137 ORANGE [S2015XFNLE | 39 |
| ARC | TUNNEL, REAR BUMPER, AND SNOWFLAP ASSEMBLY [103179] | Arctic Cat / SNOWMOBILE / 2016 / 2016 ZR 8000 LTD ES 129 BLACK [S2016ZRHLEUSB] / | 48 |
| ARC | TUNNEL, REAR BUMPER, AND SNOWFLAP ASSEMBLY [103455] | Arctic Cat / SNOWMOBILE / 2016 / 2016 ZR 8000 LTD ES 137 BLACK [S2016ZXHLEUSB] / | 48 |
| ARC | TUNNEL, REAR BUMPER, AND SNOWFLAP ASSEMBLY [105285] | Arctic Cat / SNOWMOBILE / 2017 / 2017 ZR 6000 EL TIGRE ES 137 BLACK [S2017ZXDEEU | 45 |
| ARC | TUNNEL, REAR BUMPER, AND SNOWFLAP ASSEMBLY [105095] | Arctic Cat / SNOWMOBILE / 2017 / 2017 ZR 9000 LTD 129 BLACK [S2017ZRXLEUSB] / TU | 49 |
