Parts Catalog

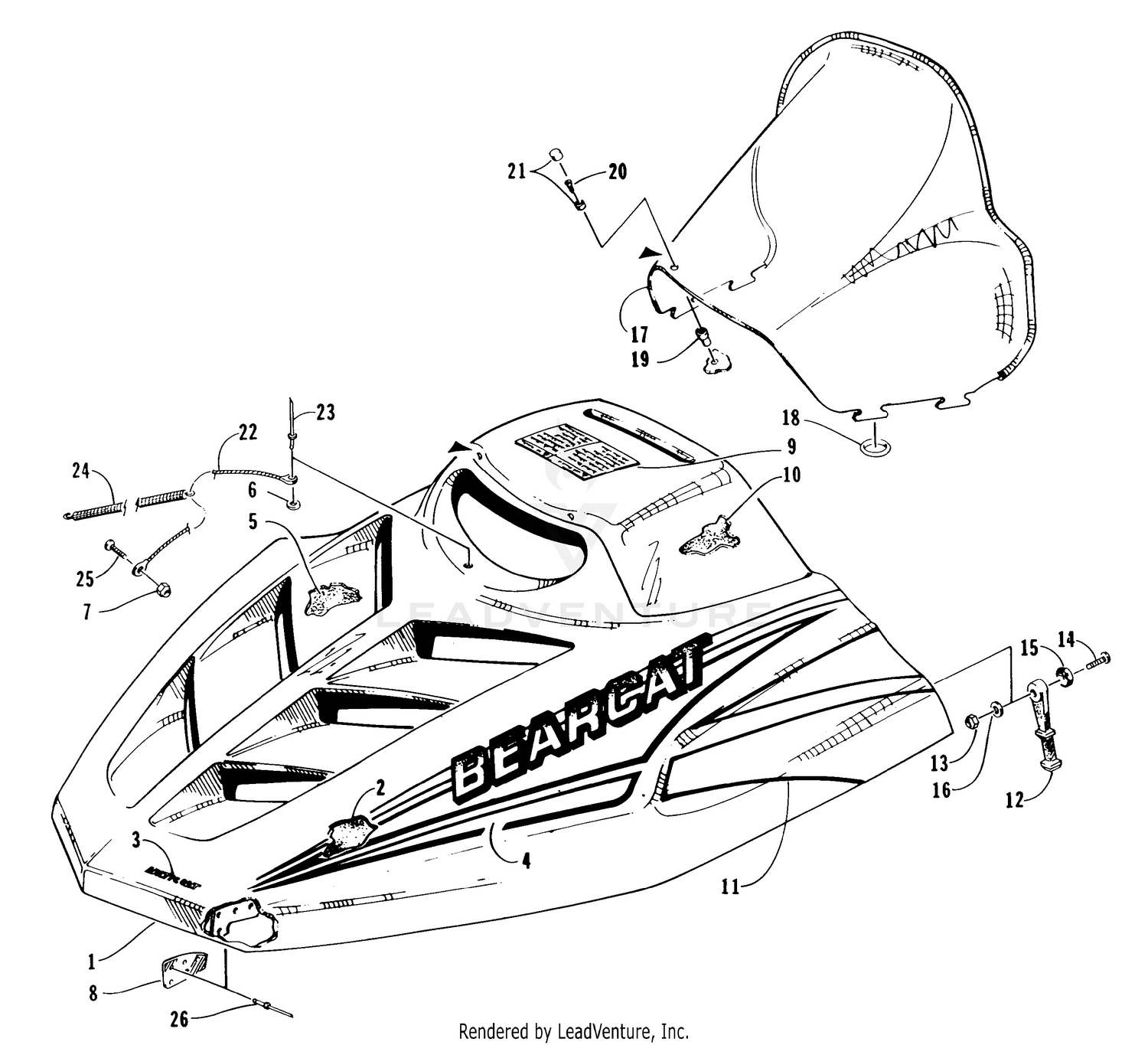

HOOD AND WINDSHIELD ASSEMBLY [63518]

Parts (31)

Ref	Part Number	Description
1	0718-463	Hood w/Decals Price: $1,107.95
1	0718-487	Hood w/o Decals Price: $1,135.95
2	0717-058	Foam - Right Price: $29.95
2	0717-059	Foam - Left Price: $23.95
3	2611-138	Decal, Hood - Arctic Cat" Price: $6.95
4	2611-362	Decal, Hood - Right Price: $22.95
4	2611-363	Decal, Hood - Left Price: $22.95
5	0717-060	Foam, Hood - Center - Right Price: $3.79
5	0717-061	Foam, Hood - Center - Left Price: $3.99
6	0123-802	Washer Price: $0.23
7	0123-430	Nut, Lock Price: $2.91
8	0616-438	Bracket, Hood-Hinge Price: $4.19
9	1611-575	Decal, Warning Price: $21.79
10	0717-062	Foam, Hood Upper - Right Price: $9.95
10	0717-063	Foam, Hood Upper - Left Price: $12.30
11	2611-442	Decal, Hood - Lower Right Price: $26.95
11	2611-443	Decal, Hood - Lower Left Price: $26.95
12	0115-306	Strap, Latch Price: $5.81
13	8040-366	Nut, Lock Price: $0.35
14	8009-614	Screw, Machine Price: $0.09
15	0623-261	Washer, Cup Price: $21.95
16	8050-217	Washer, Flat Price: $0.24
17	0616-907	Windshield Price: $129.95
18	0616-032	O-Ring Price: $1.92
19	0123-010	Nut, Expansion Price: $7.23
20	0623-121	Screw, Machine Price: $5.21
21	0124-054	Cap, Snap - Washer Price: $1.32
22	0616-614	Cable, Hood Price: $15.67
23	8060-710	Rivet Price: $0.35
24	0123-510	Spring, Extension Price: $33.95
25	0623-413	Screw, Machine Price: $0.19
