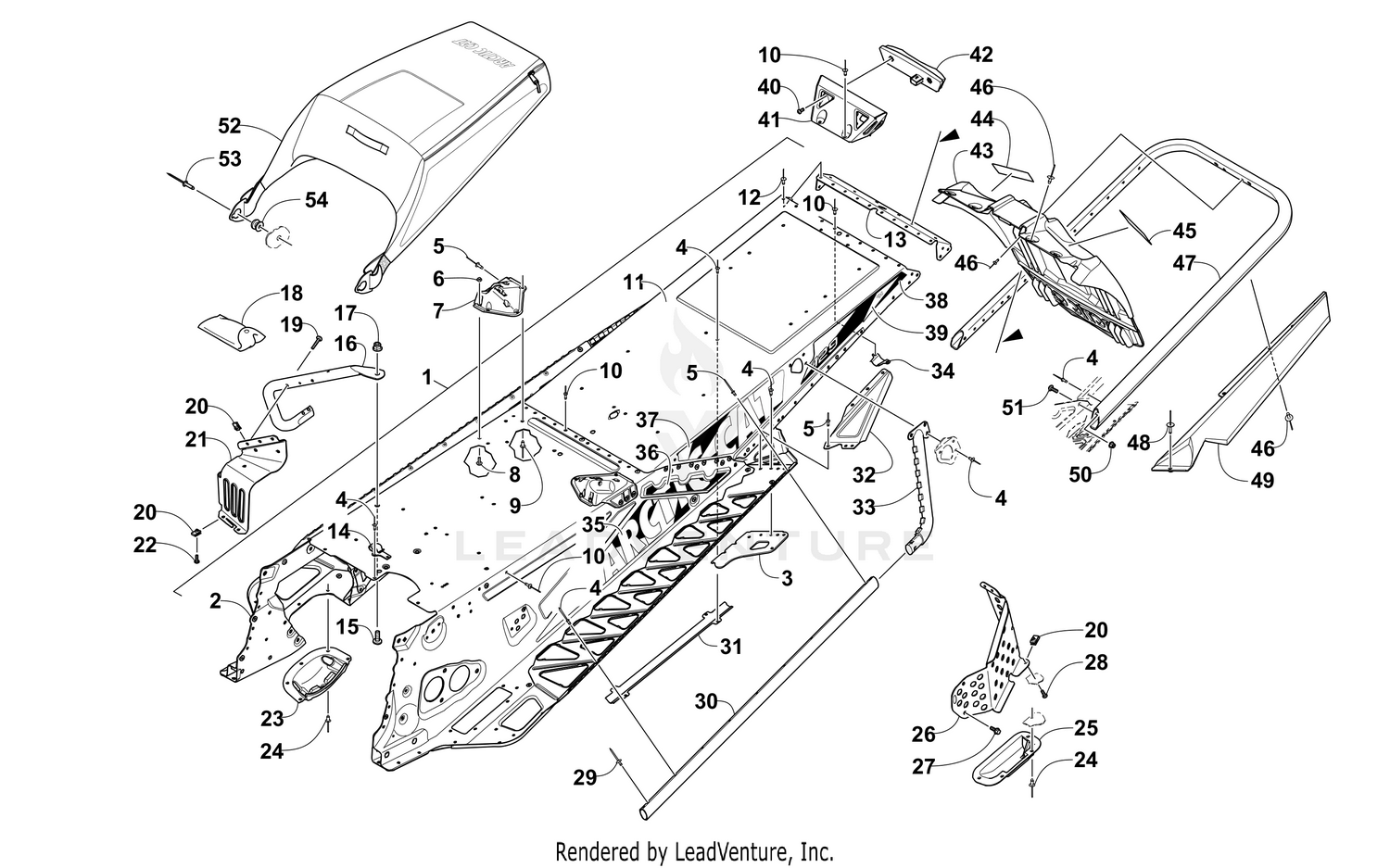

TUNNEL, REAR BUMPER, AND SNOWFLAP ASSEMBLY [103179]

Parts (64)

Ref	Part Number	Description
0	1707-825	Complete Chassis Assembly - Black Price: $3,059.95
3	1707-916	Bracket, Mounting - Suspension - Right - Black Price: $26.95
3	1707-917	Bracket, Mounting - Suspension - Left - Black Price: $26.95
4	8060-706	Rivet Price: $0.46
5	1623-241	Rivet Price: $2.05
6	8422-502	Nut, Lock Price: $0.48
7	1707-692	Bracket, Mounting - Rear Spar - Right - Black Price: $33.95
7	1707-693	Bracket, Mounting - Rear Spar - Left - Black Price: $41.95
8	8476-512	Screw, Machine Price: $1.45
9	1623-257	Rivet Price: $2.30
10	8060-702	Rivet - Black Price: $0.35
11	1707-835	Tunnel, Rear - Black Price: $237.95
12	8060-482	Rivet Price: $0.48
13	1707-725	End Cap, Tunnel - Black Price: $41.95
14	0645-709	Clip, Routing Price: $13.28
15	8476-820	Screw, Machine Price: $1.08
16	1707-454	Support, Footrest - Right Price: $71.95
16	1707-455	Support, Footrest - Left Price: $71.95
17	8427-802	Nut, Lock Price: $0.58
18	0744-087	Kit, Tool Price: $90.14
19	8468-535	Screw, Machine Price: $1.07
20	1623-637	Clip, U-Nut Price: $2.61
21	1707-556	Footrest - Right - Black Price: $31.95
21	1707-557	Footrest - Left - Black Price: $31.95
22	8470-516	Screw, Machine Price: $0.35
23	1607-109	Protector, Chain Case Price: $5.90
24	8061-708	Rivet Price: $1.08
25	0607-351	Protector, Brake Disc Price: $13.28
26	2707-044	Shield, Brake Disc - Black Price: $48.95
27	8408-613	Screw, Cap Price: $1.66
28	8470-520	Screw, Machine Price: $0.48
29	1623-130	Rivet Price: $1.80
30	1707-697	Roll, Tunnel - Black Price: $60.95
30	2707-346	Roll, Tunnel - Green Price: $17.95
31	0630-308	Protector, Harness - Taillight Extension Price: $18.13
32	1707-698	Gusset, Running Board - Right - Black Price: $30.95
32	1707-699	Gusset, Running Board - Left - Black Price: $30.95
33	1707-700	Gusset, Tunnel Roll - Right - Black Price: $31.95
33	1707-701	Gusset, Tunnel Roll - Left - Black Price: $31.95
34	0630-292	Protector, Taillight Harness Price: $16.92
35	2621-454	Decal, Tunnel - Front - Right - Black Price: $22.99
35	2621-455	Decal, Tunnel - Front - Left - Black Price: $24.20
36	2621-452	Decal, Tunnel - Center - Right - Black Price: $18.13
36	2621-453	Decal, Tunnel - Center - Left - Black Price: $18.13
37	2621-450	Decal, Tunnel - Rear - Right - Black Price: $18.13
37	2621-451	Decal, Tunnel - Rear - Left - Black Price: $46.95
38	2621-942	Decal, Tunnel - Rear - Right - Black Price: $4.05
38	2621-943	Decal, Tunnel - Rear - Left - Black Price: $4.05
39	0621-990	Decal, Reflector - Red Price: $15.42
40	8470-510	Screw, Machine Price: $0.71
41	0730-227	Bracket, Mounting - Taillight - Black Price: $41.95
42	0609-898	Taillight, LED Price: $70.95
43	6606-394	Snowflap Price: $109.95
44	5611-852	Decal, Warning - Towing (French) Price: $2.54
45	5611-853	Decal, Warning - Towing (English) Price: $2.81
46	8061-706	Rivet Price: $1.07
47	2707-578	Bumper, Rear - 129" - Black Price: $109.95
48	8060-710	Rivet Price: $0.35
49	6606-870	Flare, Tunnel - Right Price: $63.95
49	6606-871	Flare, Tunnel - Left Price: $63.95
50	8427-602	Nut, Hex Price: $0.23
51	8476-620	Screw, Machine Price: $0.48
52	6606-600	Saddlebag Price: $242.95
53	8060-630	Rivet Price: $1.32
