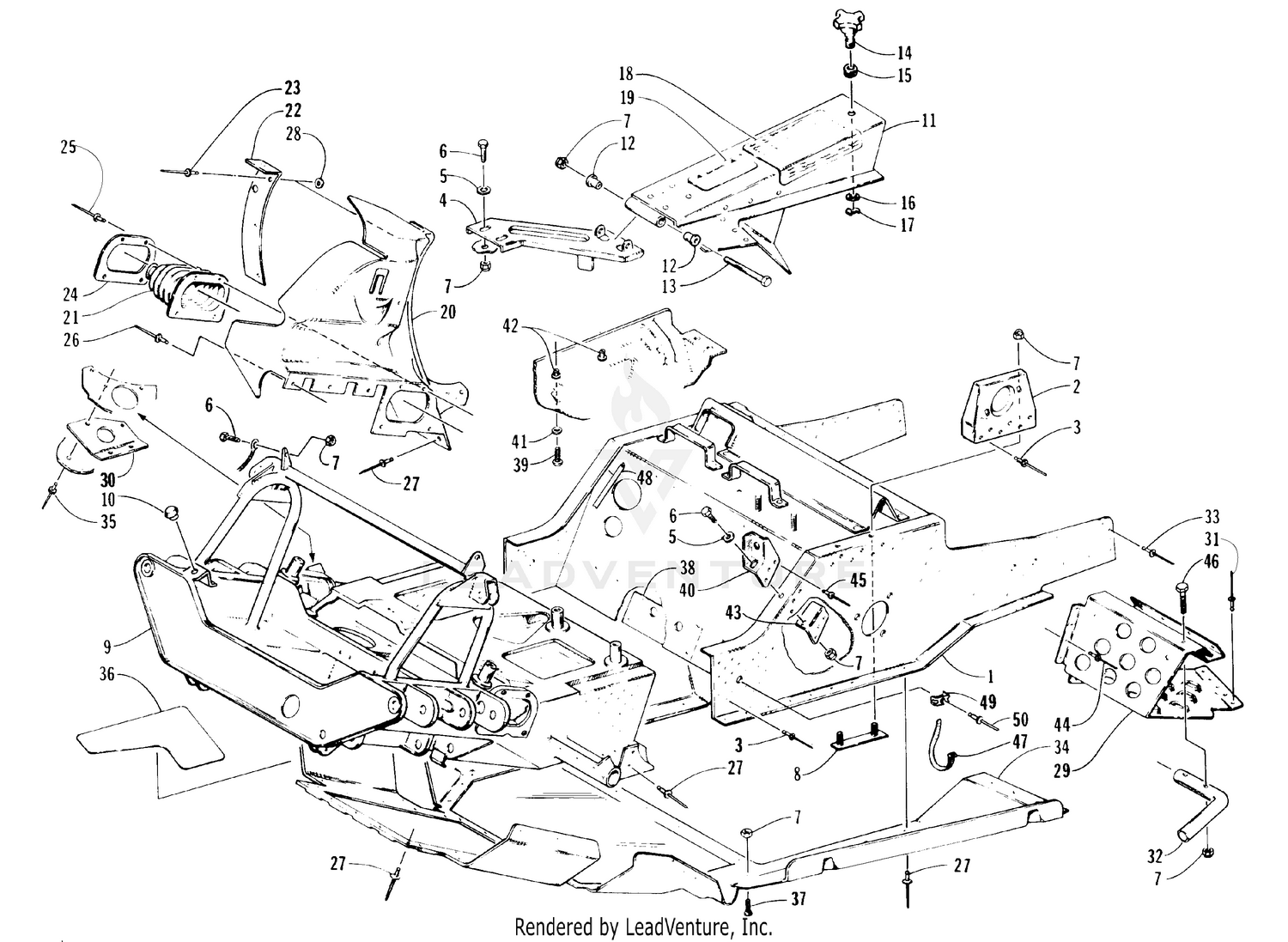

FRONT FRAME, BELLY PAN AND FOOTREST ASSEMBLY [63991]

Parts (52)

Ref	Part Number	Description
1	0707-141	Front End - Chassis Price: $426.95
2	0707-065	Support, Bearing Price: $55.95
3	0623-282	Rivet Price: $1.08
4	0707-107	BRACKET,MTG-CLUTCH SHIELD WELD'T Price: $28.10
5	8050-222	Washer Price: $0.70
6	8002-039	Screw, Cap Price: $0.33
7	8040-366	Nut, Lock Price: $0.35
8	0707-840	PLATE,BEARING MTG-PTD BLK Price: $25.78
9	0707-164	Front End - Suspension Price: $640.95
10	0612-111	Bumper, Molded - Rubber Price: $17.80
11	0707-098	Guard Price: $120.48
12	0607-094	Insert, Hinge Price: $1.08
13	8002-050	Screw, Cap Price: $1.59
14	0607-095	Knob Price: $28.95
15	0607-097	Grommet Price: $2.05
16	8050-252	WASHER,FLAT- 5/16 X .875 X .063 Z&Y Price: $0.70
17	0607-096	Retainer, Knob Price: $24.20
18	2611-186	Decal, Jet Chart Price: $4.19
19	1611-565	Decal, Warning - Belt Guard Price: $2.11
20	0606-966	Fender, Inner - Right Price: $107.95
20	0606-967	Fender, Inner - Left Price: $106.95
21	0605-187	Boot, Steering Price: $33.95
22	0616-012	Channel, Pod - Right Price: $6.95
22	0616-013	Channel, Pod - Left Price: $6.95
23	8061-428	Rivet Price: $1.92
24	0605-188	Flange, Mounting Price: $3.39
25	8060-710	Rivet Price: $0.35
26	8061-506	Rivet Price: $1.07
27	8061-508	Rivet Price: $1.53
28	0123-149	Washer, Flat Price: $2.26
29	0606-197	Footrest - Left Price: $95.95
29	0606-198	Footrest - Right Price: $124.15
30	0612-253	Seal, Exhaust Outlet Price: $20.01
31	8060-484	Rivet Price: $0.46
32	0706-845	Tube, Support - Pod Price: $14.02
33	8060-484	Rivet Price: $0.46
34	0606-962	Belly Pan Price: $175.95
35	8061-510	Rivet Price: $0.96
36	0606-671	Foil, Belly Pan Price: $3.19
37	8007-580	Screw, Machine Price: $0.09
38	0605-161	Plate, Backing Price: $4.29
39	0623-226	SCREW,SELF TAP- #10-32 X 7/8 TYPE F B Price: $0.19
40	0707-169	Bracket, Torque Price: $36.95
41	8050-157	WASHER,FLAT- #10 X .500 X .049 Z&Y Price: $1.32
42	0123-010	Nut, Expansion Price: $7.23
43	0608-067	Plate, Backing Price: $21.18
44	0623-166	Rivet Price: $1.20
45	0623-341	Rivet Price: $1.45
46	8002-045	Screw, Cap Price: $0.80
47	0123-788	Tie, Cable - 8 in Price: $0.23
48	0706-371	Trim Price: $23.76
49	0623-228	Spacer Price: $0.49
