| Ref | Part Number | Description |
|---|
| 3 |
1623-797 |
Insert Price: $3.32 |
| 4 |
2707-244 |
Bracket, Mounting - Suspension - Right - Black Price: $28.95 |
| 4 |
2707-245 |
Bracket, Mounting - Suspension - Left - Black Price: $28.95 |
| 5 |
8060-706 |
Rivet Price: $0.46 |
| 6 |
1623-206 |
Rivet Price: $2.30 |
| 7 |
8422-502 |
Nut, Lock Price: $0.48 |
| 8 |
1707-692 |
Bracket, Mounting - Rear Spar - Right - Black Price: $33.95 |
| 8 |
1707-693 |
Bracket, Mounting - Rear Spar - Left - Black Price: $41.95 |
| 9 |
8476-512 |
Screw, Machine Price: $1.45 |
| 10 |
1623-257 |
Rivet Price: $2.30 |
| 11 |
8060-702 |
Rivet - Black Price: $0.35 |
| 12 |
1707-838 |
Tunnel, Rear - Black Price: $388.95 |
| 13 |
8060-504 |
Rivet Price: $0.35 |
| 14 |
1707-725 |
End Cap, Tunnel - Black Price: $41.95 |
| 15 |
8408-516 |
Screw, Cap Price: $1.92 |
| 16 |
0630-288 |
Regulator, Voltage Price: $193.95 |
| 17 |
0645-709 |
Clip, Routing Price: $13.28 |
| 18 |
1623-984 |
Clamp, Routing Price: $7.08 |
| 19 |
8476-820 |
Screw, Machine Price: $1.08 |
| 20 |
1707-454 |
Support, Footrest - Right Price: $71.95 |
| 20 |
1707-455 |
Support, Footrest - Left Price: $71.95 |
| 21 |
8427-802 |
Nut, Lock Price: $0.58 |
| 22 |
0744-064 |
Kit, Tool Price: $78.95 |
| 23 |
8468-535 |
Screw, Machine Price: $1.07 |
| 24 |
1623-637 |
Clip, U-Nut Price: $2.61 |
| 25 |
1707-556 |
Footrest - Right - Black Price: $31.95 |
| 25 |
1707-557 |
Footrest - Left - Black Price: $31.95 |
| 26 |
8470-516 |
Screw, Machine Price: $0.35 |
| 27 |
1607-109 |
Protector, Chain Case Price: $5.90 |
| 28 |
8061-708 |
Rivet Price: $1.08 |
| 29 |
0607-351 |
Protector, Brake Disc Price: $13.28 |
| 30 |
2707-044 |
Shield, Brake Disc - Black Price: $48.95 |
| 31 |
8408-613 |
Screw, Cap Price: $1.66 |
| 32 |
8470-520 |
Screw, Machine Price: $0.48 |
| 33 |
1623-130 |
Rivet Price: $1.80 |
| 34 |
0630-309 |
Protector, Taillight Harness Price: $18.13 |
| 35 |
1707-697 |
Roll, Tunnel - Black Price: $60.95 |
| 36 |
1623-241 |
Rivet Price: $2.05 |
| 37 |
1707-698 |
Gusset, Running Board - Right - Black Price: $30.95 |
| 37 |
1707-699 |
Gusset, Running Board - Left - Black Price: $30.95 |
| 38 |
1707-700 |
Gusset, Tunnel Roll - Right - Black Price: $31.95 |
| 38 |
1707-701 |
Gusset, Tunnel Roll - Left - Black Price: $31.95 |
| 39 |
8060-710 |
Rivet Price: $0.35 |
| 40 |
8061-706 |
Rivet Price: $1.07 |
| 41 |
6606-870 |
Flare, Tunnel - Right Price: $63.95 |
| 41 |
6606-871 |
Flare, Tunnel - Left Price: $63.95 |
| 42 |
0630-292 |
Protector, Taillight Harness Price: $16.92 |
| 43 |
1621-686 |
Decal, Tunnel - Right Price: $18.13 |
| 43 |
1621-687 |
Decal, Tunnel - Left Price: $0.74 |
| 44 |
0621-990 |
Decal, Reflector - Red Price: $15.42 |
| 45 |
8470-510 |
Screw, Machine Price: $0.71 |
| 46 |
0730-227 |
Bracket, Mounting - Taillight - Black Price: $41.95 |
| 47 |
0609-898 |
Taillight, LED Price: $70.95 |
| 48 |
6606-394 |
Snowflap Price: $109.95 |
| 49 |
5611-852 |
Decal, Warning - Towing (French) Price: $2.54 |
| 50 |
5611-853 |
Decal, Warning - Towing (English) Price: $2.81 |
| 51 |
2707-584 |
Bumper, Rear - Black Price: $109.95 |
| 52 |
8427-602 |
Nut, Hex Price: $0.23 |
| 53 |
8476-620 |
Screw, Machine Price: $0.48 |
| 54 |
8060-630 |
Rivet Price: $1.32 |
| 55 |
6606-600 |
Saddlebag Price: $242.95 |

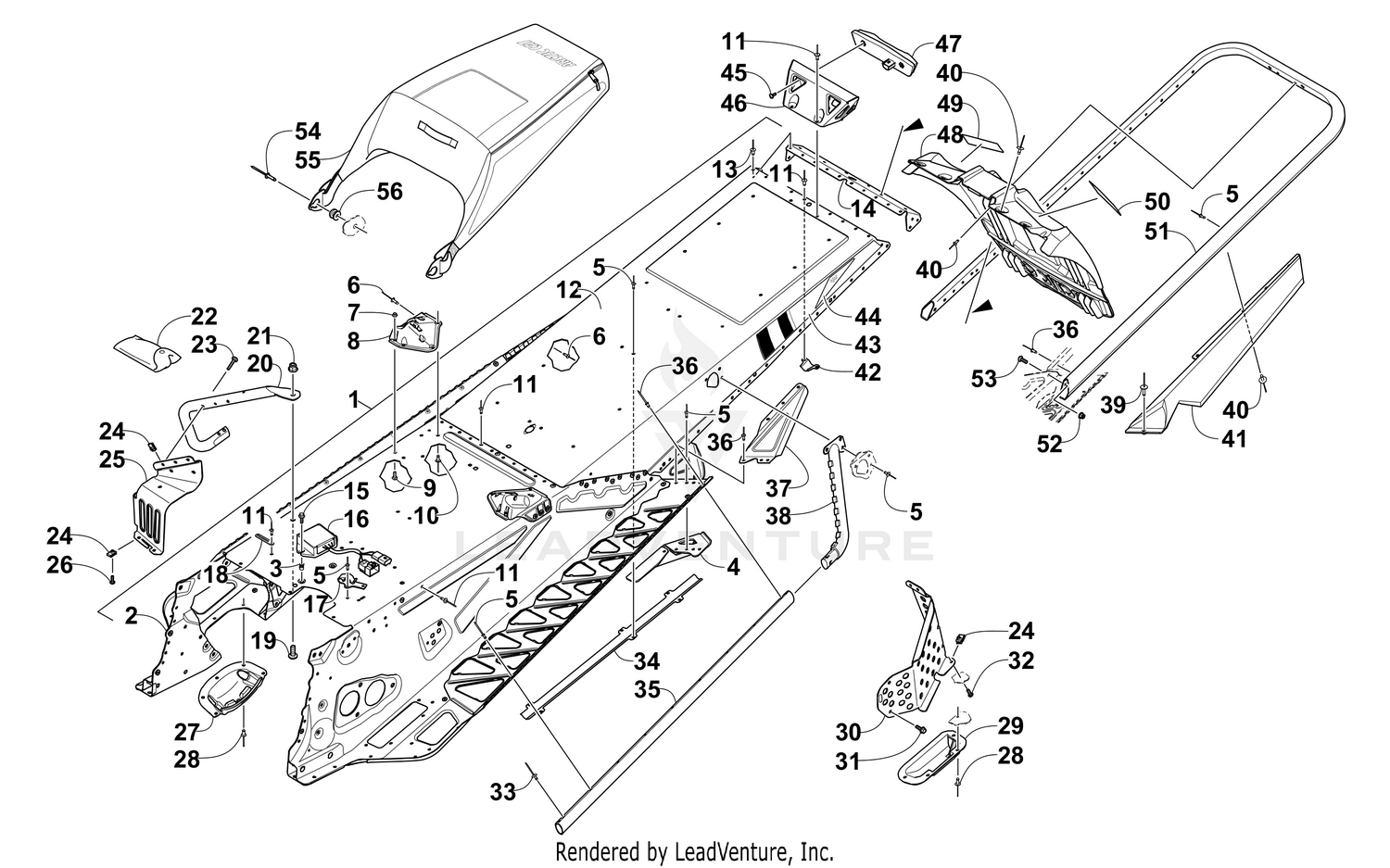

![TUNNEL, REAR BUMPER, AND SNOWFLAP ASSEMBLY [102158]](https://cdn.datamanager.arinet.com/image/ARCT/df24ee24-6272-4a5d-a251-6afd32ee6e91/Max)
