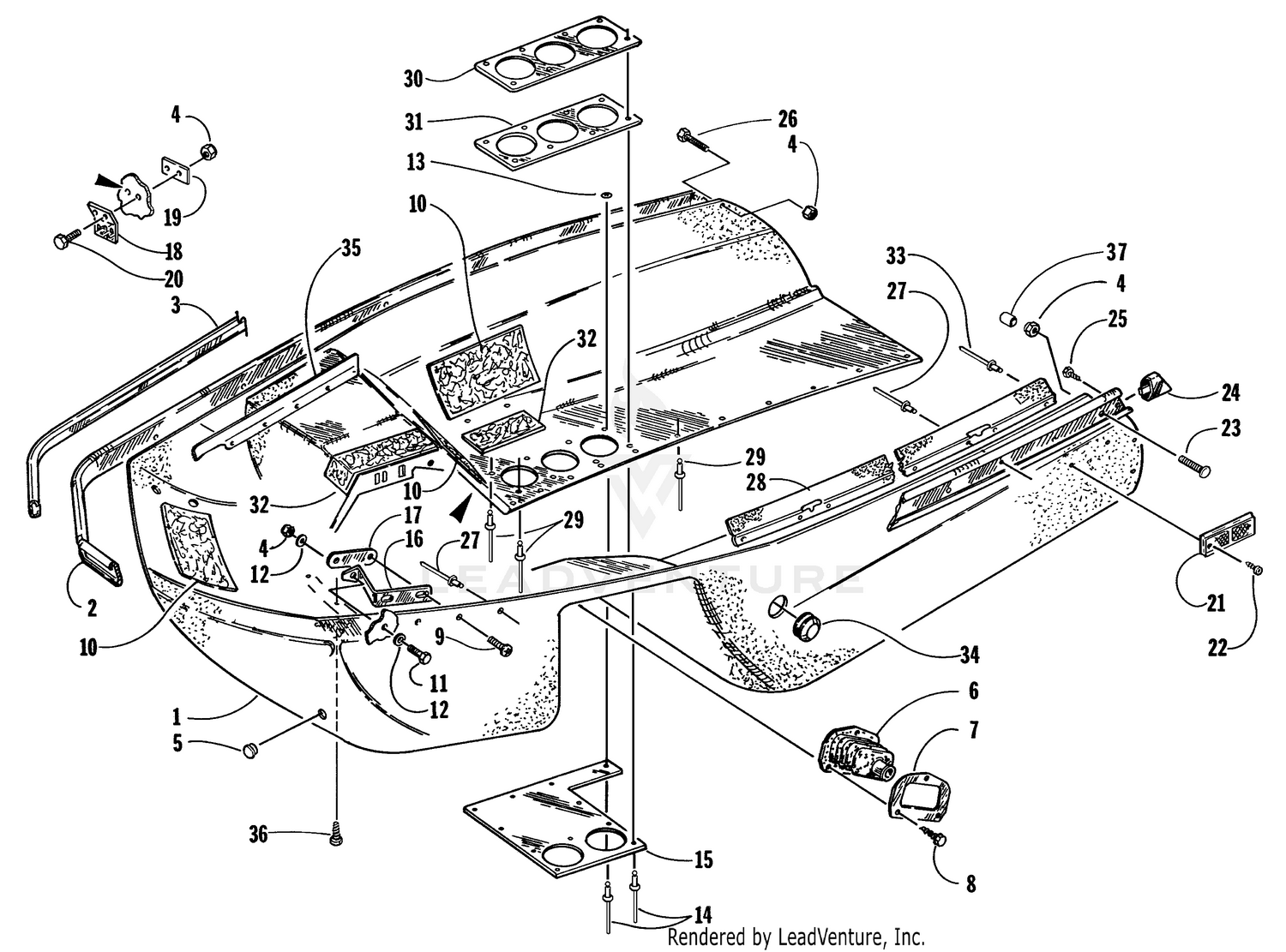

BELLY PAN ASSEMBLY [66681]

Parts (39)

Ref	Part Number	Description
1	1606-383	Belly Pan Price: $769.95
2	0716-758	Bumper, Front Price: $241.95
3	0616-700	INSERT,BUMPER-CTL 124" BLK Price: $23.95
4	8040-366	Nut, Lock Price: $0.35
5	0616-348	Plug, Hole Price: $1.80
6	0605-260	Boot, Steering Price: $21.18
7	0605-261	Flange, Mounting Price: $3.09
8	0623-574	Screw, Self-Tapping Price: $8.43
9	0623-472	Screw, Cap Price: $0.69
10	0706-990	Tape, Foil Price: $10.95
11	8002-040	Screw, Cap Price: $0.44
12	0107-234	Spacer Price: $15.67
13	0123-149	Washer, Flat Price: $2.26
14	8060-510	Rivet Price: $0.84
15	0612-606	Shield, Exhaust Price: $33.95
16	0716-244	Bracket, Hinge - Right Price: $16.95
16	0716-245	Bracket, Hinge - Left Price: $14.95
17	0616-454	Plate, Backing Price: $37.95
18	0612-278	Deflector, Exhaust Price: $14.02
19	0612-359	Plate, Backing - Exhaust Deflector Price: $8.95
20	8002-041	Screw, Cap Price: $4.29
21	0606-526	Reflector, Front Amber Price: $2.91
22	0623-269	Clip, Retaining Price: $1.32
23	0623-458	Bolt, Carriage Price: $0.89
24	0616-396	Cap, Bumper - End Price: $7.23
24	0616-397	Cap, Bumper - End Price: $7.23
25	0623-378	SCREW,SELF TAP-PHTRH #8-32 X .50 AB Z&Y Price: $0.86
26	8017-610	SCREW,MACH-TSTRH 1/4-20 X 3/4 GR2 BLK Z Price: $7.23
27	8060-710	Rivet Price: $0.35
28	0616-832	Guide, Hood Price: $38.95
29	8061-508	Rivet Price: $1.53
30	0612-302	Ring, Exhaust Outlet - Upper Price: $12.30
31	0612-301	Boot, Exhaust Outlet Price: $42.07
32	0706-548	Foil, Protective Price: $1.09
33	8061-708	Rivet Price: $1.08
34	0623-600	Plug Price: $5.09
35	0616-834	Guide, Hood - Right Price: $14.95
35	0616-835	Guide, Hood - Left Price: $14.95
36	0623-700	Screw, Self-Tapping Price: $6.95
