8002-134
SCREW,CAP-HH 5/16-18 X1.25 G5 Z&Y Price: $0.49

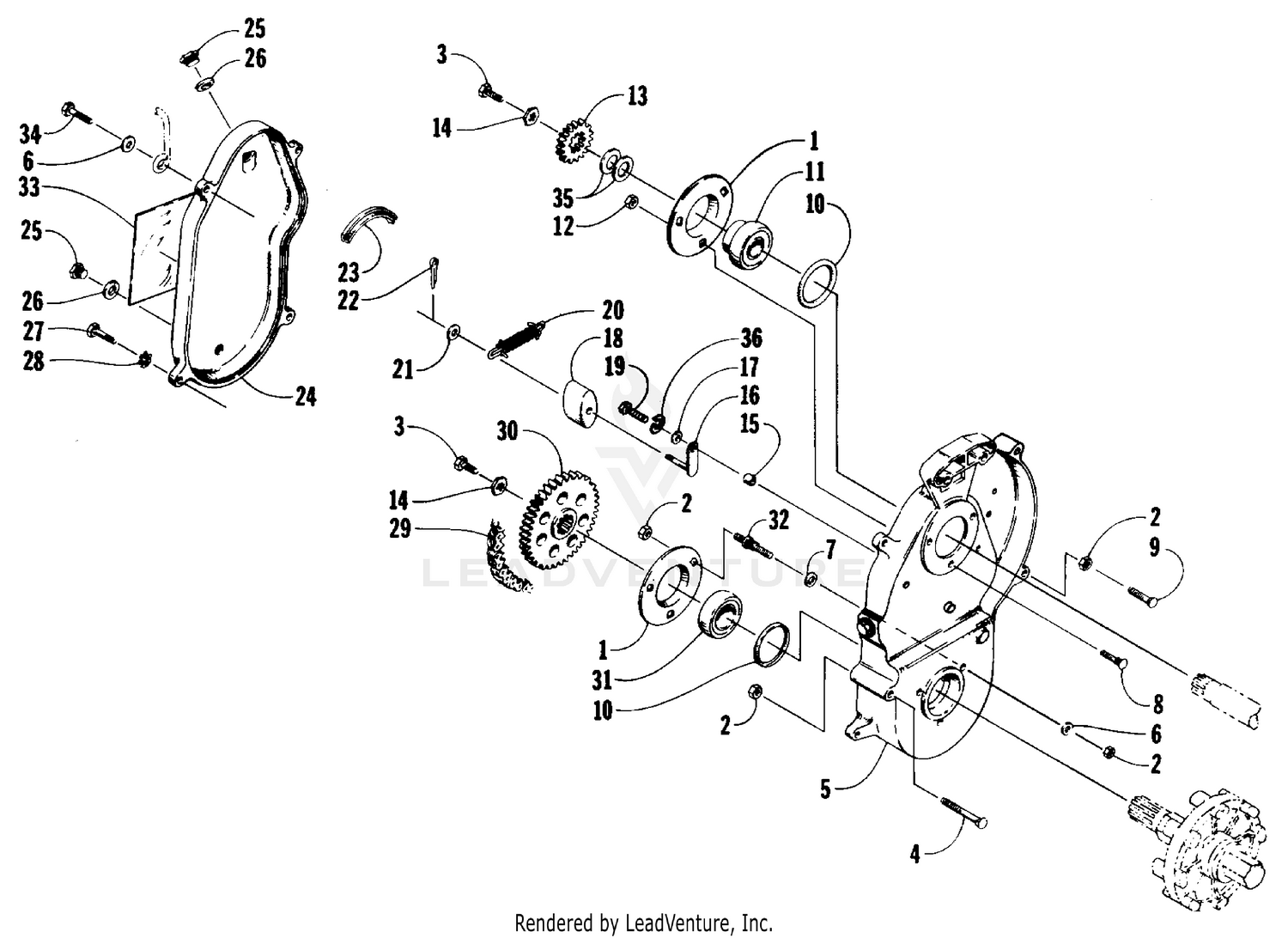

Схема сборки, где используется деталь
Used in (39 assemblies)
| Brand | Assembly | Path | Ref |
|---|---|---|---|
| ARC | DRIVE/DROPCASE ASSEMBLY [55164] | Arctic Cat / SNOWMOBILE / 1988 / 1988 EL TIGRE 5000 (440 L/C) [0650-038-1988-13- | 34 |
| ARC | SLIDE RAIL AND TRACK ASSEMBLY [57998] | Arctic Cat / SNOWMOBILE / 1991 / 1991 COUGAR [0650-131-1991-16-07] / SLIDE RAIL | 37 |
| ARC | DRIVE/REVERSE DROPCASE ASSEMBLY [58106] | Arctic Cat / SNOWMOBILE / 1991 / 1991 PANTERA [0650-137-1991-16-10] / DRIVE/REVE | 65 |
| ARC | SLIDE RAIL AND TRACK ASSEMBLY [58084] | Arctic Cat / SNOWMOBILE / 1991 / 1991 PANTERA [0650-137-1991-16-10] / SLIDE RAIL | 37 |
| ARC | SLIDE RAIL AND TRACK ASSEMBLY [60812] | Arctic Cat / SNOWMOBILE / 1993 / 1993 440 ZR [0650-247-1993-18-19] / SLIDE RAIL | 37 |
| ARC | DRIVE/DROPCASE ASSEMBLY [60839] | Arctic Cat / SNOWMOBILE / 1993 / 1993 580 ZR [0650-248-1993-18-20] / DRIVE/DROPC | 31 |
| ARC | SLIDE RAIL AND TRACK ASSEMBLY [60842] | Arctic Cat / SNOWMOBILE / 1993 / 1993 580 ZR [0650-248-1993-18-20] / SLIDE RAIL | 37 |
| ARC | SLIDE RAIL AND TRACK ASSEMBLY [60958] | Arctic Cat / SNOWMOBILE / 1993 / 1993 EXT 580 Z [0650-255-1993-18-24] / SLIDE RA | 37 |
| ARC | SLIDE RAIL AND TRACK ASSEMBLY [60745] | Arctic Cat / SNOWMOBILE / 1993 / 1993 JAG DELUXE [0650-243-1993-18-17] / SLIDE R | 37 |
| ARC | SLIDE RAIL AND TRACK ASSEMBLY [60712] | Arctic Cat / SNOWMOBILE / 1993 / 1993 JAG [0650-242-1993-18-16] / SLIDE RAIL AND | 37 |
| ARC | SLIDE RAIL AND TRACK ASSEMBLY [60921] | Arctic Cat / SNOWMOBILE / 1993 / 1993 THUNDERCAT [0650-253-1993-18-23] / SLIDE R | 37 |
| ARC | SLIDE RAIL AND TRACK ASSEMBLY [61116] | Arctic Cat / SNOWMOBILE / 1993 / 1993 WILDCAT MOUNTAIN CAT EFI [0650-251-1993-18 | 37 |
| ARC | DROPCASE AND CHAIN TENSION ASSEMBLY [63516] | Arctic Cat / SNOWMOBILE / 1996 / 1996 BEARCAT 550 [96BCC-1996-21-03] / DROPCASE | 8 |
| ARC | DRIVE/REVERSE DROPCASE ASSEMBLY [63667] | Arctic Cat / SNOWMOBILE / 1996 / 1996 COUGAR 2-UP [96COC-1996-21-07] / DRIVE/REV | 61 |
| ARC | SLIDE RAIL AND TRACK ASSEMBLY [63648] | Arctic Cat / SNOWMOBILE / 1996 / 1996 COUGAR 2-UP [96COC-1996-21-07] / SLIDE RAI | 14 |
| ARC | DRIVE/REVERSE DROPCASE ASSEMBLY [63596] | Arctic Cat / SNOWMOBILE / 1996 / 1996 COUGAR [96COA-1996-21-05] / DRIVE/REVERSE | 61 |
| ARC | DRIVE/DROPCASE ASSEMBLY [63866] | Arctic Cat / SNOWMOBILE / 1996 / 1996 EXT POWDER SPECIAL [96ETI-1996-21-12] / DR | 31 |
| ARC | SLIDE RAIL AND TRACK ASSEMBLY [63855] | Arctic Cat / SNOWMOBILE / 1996 / 1996 EXT POWDER SPECIAL [96ETI-1996-21-12] / SL | 14 |
| ARC | SLIDE RAIL AND TRACK ASSEMBLY [63905] | Arctic Cat / SNOWMOBILE / 1996 / 1996 JAG DELUXE [96JAB-1996-21-14] / SLIDE RAIL | 14 |
| ARC | SLIDE RAIL AND TRACK ASSEMBLY [63981] | Arctic Cat / SNOWMOBILE / 1996 / 1996 JAG LIQUID [96JAC-1996-21-15] / SLIDE RAIL | 14 |
| ARC | SLIDE RAIL AND TRACK ASSEMBLY [66726] | Arctic Cat / SNOWMOBILE / 1998 / 1998 POWDER SPECIAL 600 EFI [98PSC-1998-23-21] | 14 |
| ARC | SLIDE RAIL AND TRACK ASSEMBLY [66929] | Arctic Cat / SNOWMOBILE / 1998 / 1998 THUNDERCAT [98TCA-1998-23-25] / SLIDE RAIL | 9 |
| ARC | DRIVE/DROPCASE ASSEMBLY [67278] | Arctic Cat / SNOWMOBILE / 1998 / 1998 ZR 600 EFI LE XC [98ZRC-1998-23-32] / DRIV | 31 |
| ARC | DRIVE/REVERSE DROPCASE ASSEMBLY [70110] | Arctic Cat / SNOWMOBILE / 2000 / 2000 PANTHER 440 [S2000PABAAUS-2000-25-06] / DR | 61 |
| ARC | SLIDE RAIL AND TRACK ASSEMBLY [70076] | Arctic Cat / SNOWMOBILE / 2000 / 2000 PANTHER 440 [S2000PABAAUS-2000-25-06] / SL | 14 |
| ARC | DROPCASE AND CHAIN TENSION ASSEMBLY [75510] | Arctic Cat / SNOWMOBILE / 2001 / 2001 PANTERA 1000 (INTERNATIONAL) [S2001PTLCAOS | 8 |
| ARC | DRIVE/DROPCASE ASSEMBLY [76129] | Arctic Cat / SNOWMOBILE / 2001 / 2001 PANTHER 440 [S2001PABFCUSG-2001-66] / DRIV | 31 |
| ARC | DRIVE/REVERSE DROPCASE ASSEMBLY (esr) (cont) [76139] | Arctic Cat / SNOWMOBILE / 2001 / 2001 PANTHER 440 [S2001PABFCUSG-2001-66] / DRIV | 61 |
| ARC | DROPCASE AND CHAIN TENSION ASSEMBLY [75965] | Arctic Cat / SNOWMOBILE / 2001 / 2001 TRIPLE TOURING 600 [S2001TTDCAUSB-2001-61] | 8 |
| ARC | CHASSIS, FOOTREST, AND REAR BUMPER ASSEMBLY [76060] | Arctic Cat / SNOWMOBILE / 2001 / 2001 Z 120 [S2001ZAAAAUSG-2001-53] / CHASSIS, F | 32 |
| ARC | DROPCASE AND CHAIN TENSION ASSEMBLY [76800] | Arctic Cat / SNOWMOBILE / 2002 / 2002 PANTERA 600 EFI ESR [S2002PTDEFUSC-2002-81 | 39 |
| ARC | DROPCASE AND CHAIN TENSION ASSEMBLY [76989] | Arctic Cat / SNOWMOBILE / 2002 / 2002 THUNDERCAT [S2002TCLWRUSB-2002-85] / DROPC | 39 |
| ARC | SLIDE RAIL AND TRACK ASSEMBLY [76996] | Arctic Cat / SNOWMOBILE / 2002 / 2002 THUNDERCAT [S2002TCLWRUSB-2002-85] / SLIDE | 9 |
| ARC | SLIDE RAIL AND TRACK ASSEMBLY [77013] | Arctic Cat / SNOWMOBILE / 2002 / 2002 Z 440 [S2002ZABFCUSG-2002-87] / SLIDE RAIL | 14 |
| ARC | SLIDE RAIL AND TRACK ASSEMBLY [53688] | Arctic Cat / SNOWMOBILE / 2002 / 2002 Z 570 SS [S2002ZADSSUSG-2002-115] / SLIDE | 9 |
| ARC | SLIDE RAIL AND TRACK ASSEMBLY [58951] | Arctic Cat / SNOWMOBILE / 2003 / 2003 MOUNTAIN CAT 900 1M (BLACK-ORANGE 159) [S2 | 9 |
| ARC | DRIVE/DROPCASE ASSEMBLY [60088] | Arctic Cat / SNOWMOBILE / 2003 / 2003 MOUNTAIN CAT 900 EARLY BUILD [S2003MCJSEUS | 46 |
| ARC | EXHAUST ASSEMBLY [60080] | Arctic Cat / SNOWMOBILE / 2003 / 2003 MOUNTAIN CAT 900 EARLY BUILD [S2003MCJSEUS | 23 |
| ARC | SLIDE RAIL AND TRACK ASSEMBLY [56441] | Arctic Cat / SNOWMOBILE / 2003 / 2003 PANTERA 600 EFI ESR [S2003PTDEFUSC-2003-15 | 9 |
