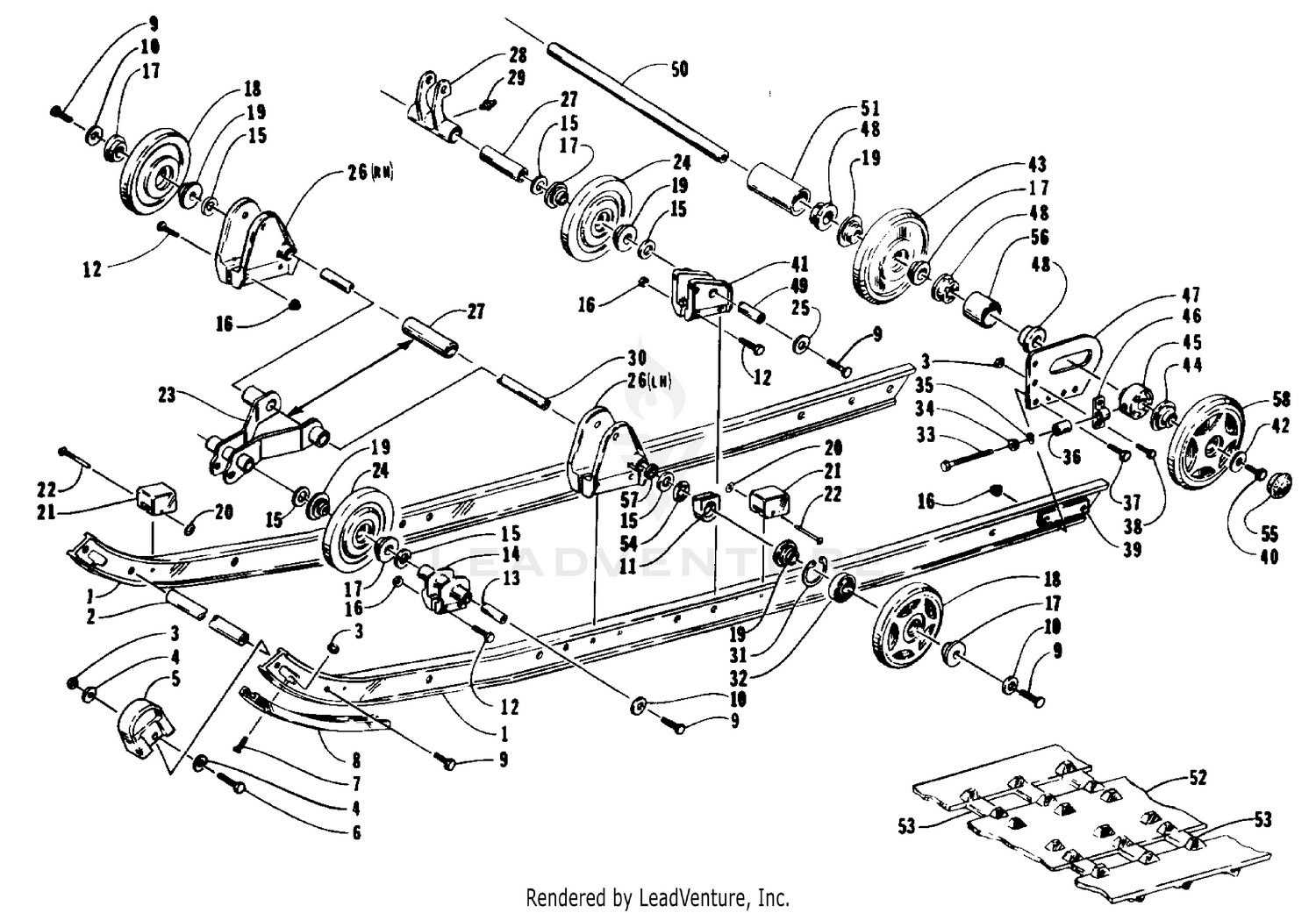

SLIDE RAIL AND TRACK ASSEMBLY [61116]

Parts (59)

Ref	Part Number	Description
1	0704-303	Rail, Formed Price: $171.95
2	0604-426	Axle, Crossbrace Price: $51.95
3	8040-366	Nut, Lock Price: $0.35
4	8050-217	Washer, Flat Price: $0.24
5	0604-231	Nose Piece, Slide Rail - Black Price: $16.61
6	8002-044	Screw, Cap Price: $4.63
7	0123-869	Screw, Machine Price: $1.08
8	2604-257	Wearstrip, Slide Rail-BLK Price: $33.95
9	8012-130	Screw, Cap Price: $2.19
10	0123-260	Washer Price: $1.66
11	0604-582	Roller/Slide, Front Spring Price: $3.51
12	8002-131	Screw, Cap Price: $1.20
13	0604-578	Axle, Idler Wheel Price: $36.95
14	0704-201	Bracket Price: $24.66
15	0123-439	Washer Price: $4.04
16	8040-426	Nut, Hex Lock - NYL 5/16-18 Z&Y Price: $1.79
17	1604-773	Insert, 5/8 Bore X 1.580 OD Price: $5.81
18	0604-240	Wheel, Idler Price: $39.95
19	1604-772	Insert, 5/8 Bore X 2 OD (Short) Price: $2.89
20	0123-766	Nut, Push Price: $1.32
21	0104-631	Pad, Shock Price: $7.08
22	0123-767	Rivet, Solid Price: $1.07
23	0704-187	Bracket, Front Shock Price: $44.95
24	0604-459	Wheel, Idler Price: $55.95
25	0623-140	Washer Price: $0.84
26	0704-190	Bracket, Mounting - Right Price: $34.95
26	0704-191	Bracket, Mounting - Left Price: $35.95
27	0603-105	Spacer Price: $15.71
28	0704-589	PIVOT,REAR SHOCK-PTD BLK Price: $33.95
29	9916-963	Fitting, Grease Price: $4.35
30	0604-081	Axle, Idler Wheel Price: $37.95
31	0123-798	Ring, Retaining Price: $1.80
32	0107-598	Bearing Price: $13.28
33	0623-123	Screw, Cap Price: $2.66
34	8042-486	Nut Price: $1.77
35	8051-277	Washer, Lock Price: $1.70
36	0604-298	SPACER,SHOCK LINK-Z&Y Price: $36.95
37	8002-134	SCREW,CAP-HH 5/16-18 X1.25 G5 Z&Y Price: $0.49
38	8002-041	Screw, Cap Price: $4.29
39	0604-152	Spacer, Rear Axle Housing Price: $4.49
40	8012-222	Screw, Cap Price: $1.09
41	0704-206	Bracket, Mounting - Auxiliary Wheel Right Price: $40.99
41	0704-207	Bracket, Mounting - Auxiliary Wheel Left Price: $29.95
42	0123-570	Washer Price: $7.23
43	0604-210	Wheel, Idler (inc. 2-5) Price: $51.79
44	1604-774	INSERT,5/8 BORE X 2" (LONG) Price: $7.23
45	0604-165	Bushing, Adjuster Price: $9.03
46	0604-206	Adjuster, Track Price: $14.23
47	0604-131	Housing, Rear Axle Price: $34.95
48	0604-968	Bushing, Spacer - Rear Wheel Price: $10.85
49	0604-641	Axle, Inner Price: $26.95
50	0604-208	Axle, Rear Price: $58.95
51	1704-466	SPACER,REAR WHEEL-PTD BLK Price: $20.16
52	0602-754	TRACK,15X136X.725,2/3-17 NYL Price: $489.95
53	2602-383	Clip, Guide Price: $4.48
54	0604-635	Spacer, Roller/Slide Price: $5.53
55	0604-246	Cap, Idler Wheel Price: $3.38
56	0604-137	Spacer, Outer Price: $17.95
57	0604-693	Spacer, Outer Wheel Price: $12.30
