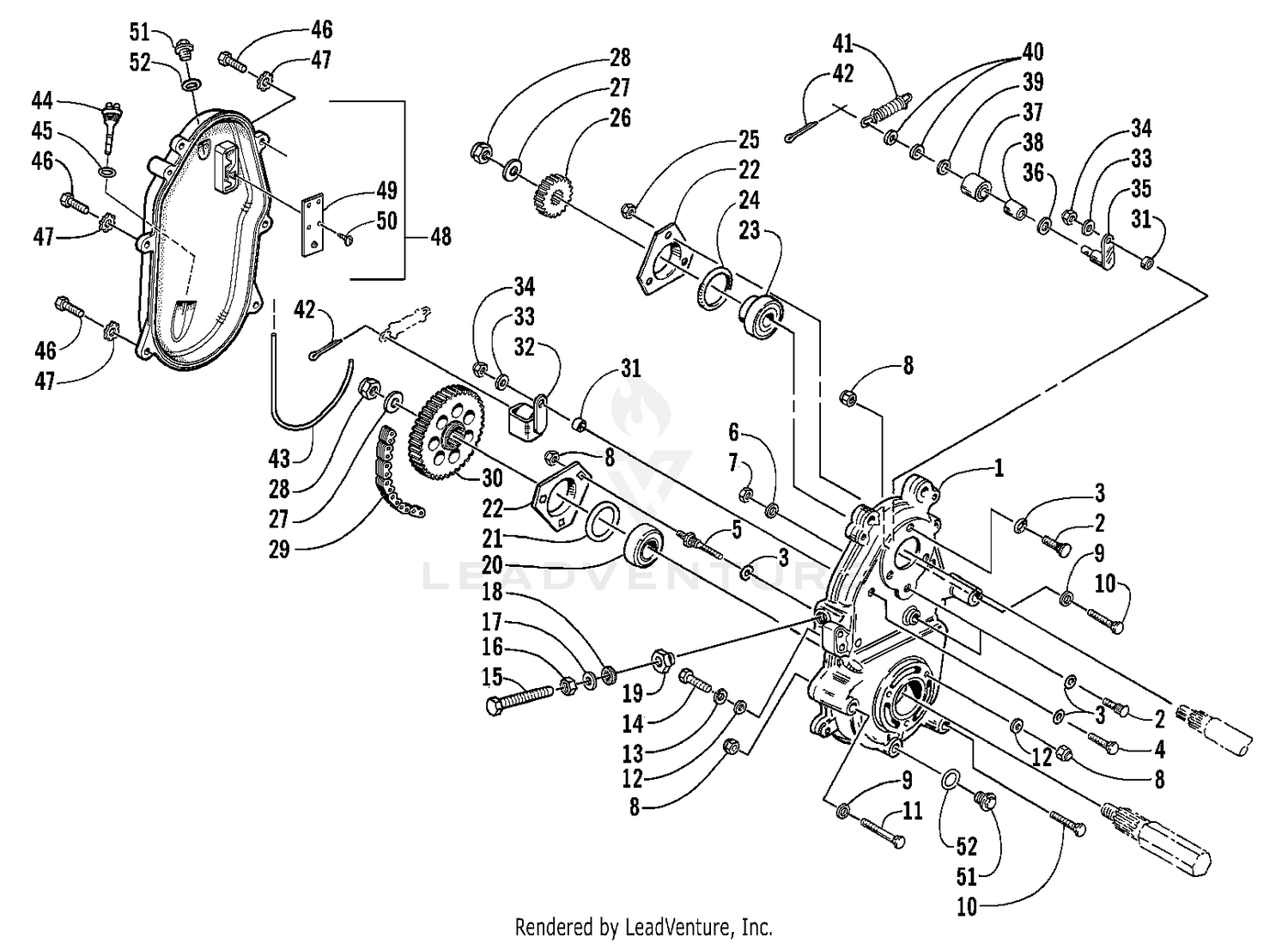

DRIVE/DROPCASE ASSEMBLY [60088]

Parts (48)

Ref	Part Number	Description
2	0123-523	Bolt, Ribbed Price: $5.95
3	0607-025	O-Ring, Stud Price: $1.57
4	0623-117	Bolt, Ribbed Price: $22.99
5	0623-317	Stud Price: $22.99
6	0623-094	WASHER, FLAT - 5/16 ID Price: $0.48
7	8042-426	NUT,5/16-18 HEX-REG-GR5 Z&Y Price: $0.71
8	8040-426	Nut, Hex Lock - NYL 5/16-18 Z&Y Price: $1.79
9	8050-252	WASHER,FLAT- 5/16 X .875 X .063 Z&Y Price: $0.70
10	8011-139	Screw, Cap Price: $1.45
11	8011-143	Bolt, Carriage Price: $1.45
12	8050-247	Washer Price: $0.70
13	8051-242	WASHER,SPR LOCK-5/16 .314X.583X.078 Z&Y Price: $1.77
14	8002-135	SCREW,CAP-HH 5/16-18 X1.50 G5 Z&Y Price: $0.49
15	1602-101	Screw, Cap Price: $3.59
16	0123-150	Nut Price: $0.48
17	2623-057	Seal Price: $2.05
18	8050-272	Washer Price: $0.35
19	0602-876	Adapter, Manual Adjust Price: $15.86
20	1702-179	Kit, Replacement Bearing-1" Price: $83.95
21	0107-003	Seal Price: $1.45
22	0602-198	PLATE,FLANGE-BEARING (TRIANGLE) Price: $13.28
23	1702-180	Kit, Replacement Bearing-7/8" Price: $68.95
24	1670-237	Seal, O-Ring Price: $1.00
25	8041-426	Nut, Hex - Thin Lock Price: $0.46
26	0602-444	Sprocket, 19T (Above 4,000 ft Alt.) Price: $56.11
27	0623-231	Washer, Spring Price: $4.60
28	0623-465	Nut, Lock Price: $8.43
29	1602-041	CHAIN, 70P - 13 WIDE Price: $121.95
30	0602-453	Sprocket, 40T (Above 4,000 ft Alt.) Price: $94.95
31	0602-369	Bushing Price: $13.28
32	0702-324	ADJUSTER,CHAIN-MANUAL (BIG BUSHING) Price: $67.95
33	8050-217	Washer, Flat Price: $0.24
34	0623-122	Nut, Lock Price: $1.57
35	0702-115	Arm, Tightener Price: $40.95
36	0623-283	Washer Price: $0.39
38	0602-383	Bearing Price: $0.79
39	0623-284	Washer Price: $0.49
40	8050-212	Washer Price: $0.82
41	0702-130	Spring Assembly Price: $16.92
42	0123-082	Pin, Cotter Price: $0.09
43	0602-437	Seal, Dropcase Price: $14.49
44	0602-462	Stick, Oil Level Price: $12.07
45	0670-183	O-Ring Price: $0.35
46	8002-134	SCREW,CAP-HH 5/16-18 X1.25 G5 Z&Y Price: $0.49
47	8053-242	Washer, External Tooth Lock Price: $1.53
49	1602-152	COVER, OIL VENT Price: $8.95
50	0623-081	Screw, Self-Tapping Price: $0.35
51	0623-293	Plug, Drain Price: $2.91
