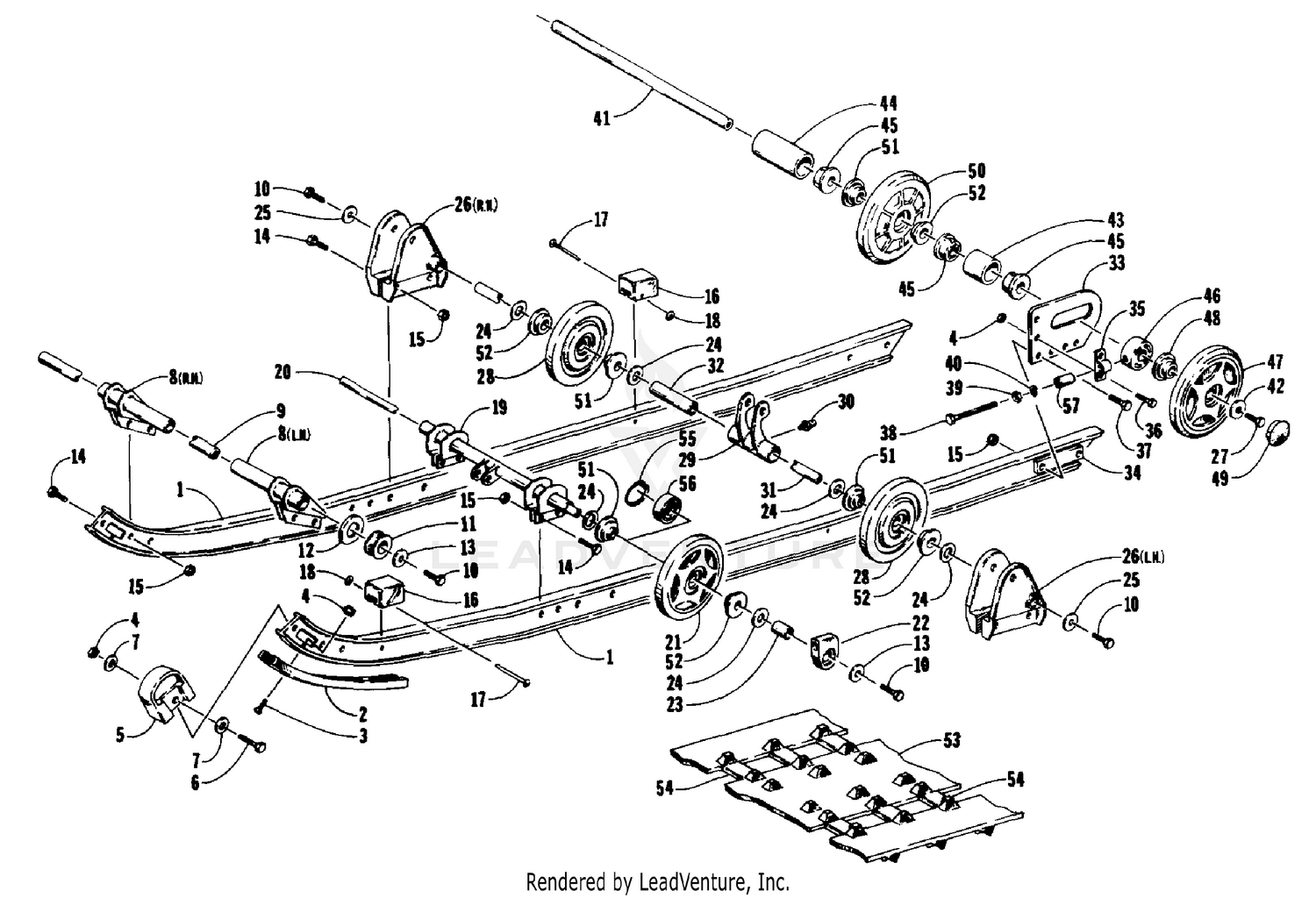

SLIDE RAIL AND TRACK ASSEMBLY [58084]

Parts (58)

Ref	Part Number	Description
1	0604-247	RAIL, FORMED Price: $241.95
2	0604-248	WEARSTRIP,SLIDE RAIL Price: $34.95
3	0123-869	Screw, Machine Price: $1.08
4	8040-366	Nut, Lock Price: $0.35
5	0604-231	Nose Piece, Slide Rail - Black Price: $16.61
6	8002-044	Screw, Cap Price: $4.63
7	8050-217	Washer, Flat Price: $0.24
8	0704-052	BRACKET, CROSSBRACE - RH Price: $93.95
8	0704-053	BRACKET, CROSSBRACE - LH Price: $60.95
9	0604-252	AXLE, CROSSBRACE Price: $73.95
10	8012-130	Screw, Cap Price: $2.19
11	0604-582	Roller/Slide, Front Spring Price: $3.51
12	0604-302	SPACER, ROLLER Price: $3.92
13	0123-260	Washer Price: $1.66
14	8002-131	Screw, Cap Price: $1.20
15	8040-426	Nut, Hex Lock - NYL 5/16-18 Z&Y Price: $1.79
16	0104-631	Pad, Shock Price: $7.08
17	0123-767	Rivet, Solid Price: $1.07
18	0123-766	Nut, Push Price: $1.32
19	1704-197	CROSS BRACE,AUX.WHEEL-PTD BLK Price: $150.95
20	0604-380	AXLE, CROSS-FRONT SHOCK Price: $32.95
21	0604-240	Wheel, Idler Price: $39.95
22	2604-515	Slide, Spring Price: $7.23
23	0114-134	Axle, Outer Auxiliary Wheel Price: $9.95
24	0123-439	Washer Price: $4.04
25	0623-140	Washer Price: $0.84
26	0704-074	BRACKET, MOUNTING - RH Price: $57.95
26	0704-075	BRACKET, MOUNTING - LH Price: $34.95
27	8012-222	Screw, Cap Price: $1.09
28	0604-459	Wheel, Idler Price: $55.95
29	0704-589	PIVOT,REAR SHOCK-PTD BLK Price: $33.95
30	9916-963	Fitting, Grease Price: $4.35
31	0604-297	AXLE, IDLER WHEEL Price: $60.95
32	0603-105	Spacer Price: $15.71
33	0604-131	Housing, Rear Axle Price: $34.95
34	0604-152	Spacer, Rear Axle Housing Price: $4.49
35	0604-206	Adjuster, Track Price: $14.23
36	8002-041	Screw, Cap Price: $4.29
37	8002-134	SCREW,CAP-HH 5/16-18 X1.25 G5 Z&Y Price: $0.49
38	0623-123	Screw, Cap Price: $2.66
39	8042-486	Nut Price: $1.77
40	8051-277	Washer, Lock Price: $1.70
41	0604-208	Axle, Rear Price: $58.95
42	0123-570	Washer Price: $7.23
43	0604-137	Spacer, Outer Price: $17.95
44	1704-466	SPACER,REAR WHEEL-PTD BLK Price: $20.16
45	0604-968	Bushing, Spacer - Rear Wheel Price: $10.85
46	0604-165	Bushing, Adjuster Price: $9.03
47	0604-238	Wheel, Idler Price: $35.95
48	1604-774	INSERT,5/8 BORE X 2" (LONG) Price: $7.23
49	0604-246	Cap, Idler Wheel Price: $3.38
50	0604-210	Wheel, Idler (inc. 2-5) Price: $51.79
51	1604-772	Insert, 5/8 Bore X 2 OD (Short) Price: $2.89
52	1604-773	Insert, 5/8 Bore X 1.580 OD Price: $5.81
53	0602-798	Track Assembly (inc. 13-14) Price: $429.95
54	0102-255	Clip, Guide Price: $0.89
55	0123-798	Ring, Retaining Price: $1.80
56	0107-598	Bearing Price: $13.28
