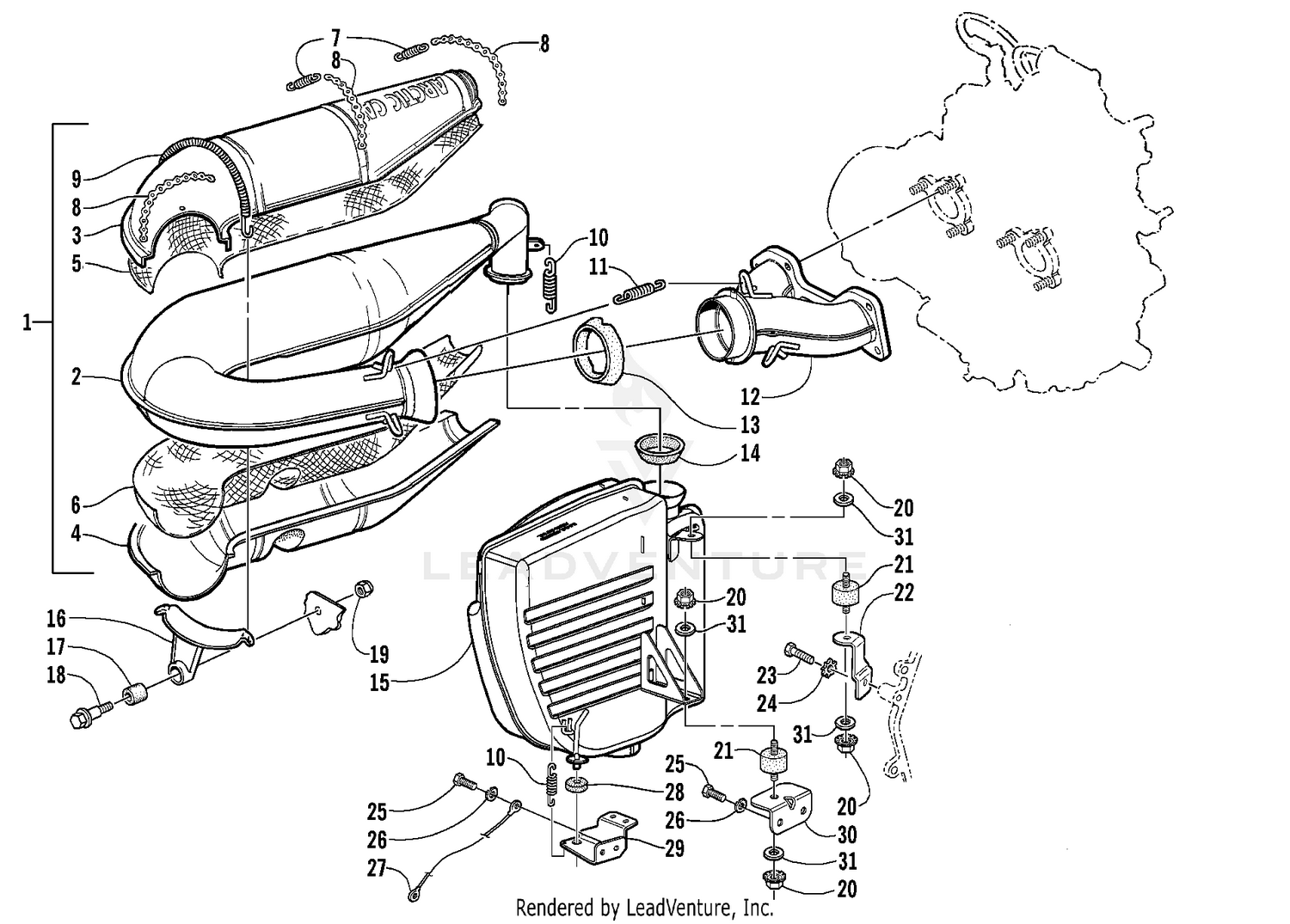

EXHAUST ASSEMBLY [60080] — Parts Catalog

Ref	Part Number	Description
2	0712-826	Chamber, Expansion Price: $383.95
3	1612-504	Cover, Upper Price: $100.95
4	1612-505	Cover, Lower Price: $128.84
5	1612-506	Insulation Price: $36.95
6	1612-507	Insulation, Lower Price: $35.76
7	1612-178	Spring, Exhaust Strap Price: $3.92
8	0624-541	Band, Tie - 25 ft Price: $129.95
8	0624-552	Band, Tie - 5 ft Price: $22.99
9	0612-027	Spring, Extension Price: $28.95
10	0612-471	Spring, Extension Price: $13.28
11	2612-399	Spring, Extension Price: $3.88
12	1712-067	MANIFOLD, EXHAUST-MACH-900 Price: $522.95
13	1612-014	Gasket, Exhaust - Headpipe Price: $38.95
14	1612-619	Gasket, Exhaust - Tailpipe Price: $27.95
15	0712-746	Resonator Price: $490.27
16	0712-874	Bracket, Support Price: $17.95
17	0612-107	Spacer Price: $0.79
18	0623-856	Screw, Shoulder Price: $3.59
19	8040-366	Nut, Lock Price: $0.35
20	0623-961	Nut, Hex - w/Washer Price: $0.19
21	1612-321	Support, Resonator Price: $17.58
22	0712-864	Bracket, Mounting - Resonator Price: $34.95
23	8002-134	SCREW,CAP-HH 5/16-18 X1.25 G5 Z&Y Price: $0.49
24	8053-242	Washer, External Tooth Lock Price: $1.53
25	8002-040	Screw, Cap Price: $0.44
26	8051-217	Washer, Lock Price: $0.29
27	0686-126	Wire, Ground Price: $2.59
28	1612-319	Bushing, Stem - Resonator Mounting Price: $2.80
29	0712-705	Bracket, Mounting - Resonator Price: $22.95
30	0712-916	BRKT,MTG-RESONATOR/CHASSIS-PTD BLK Price: $3.79
