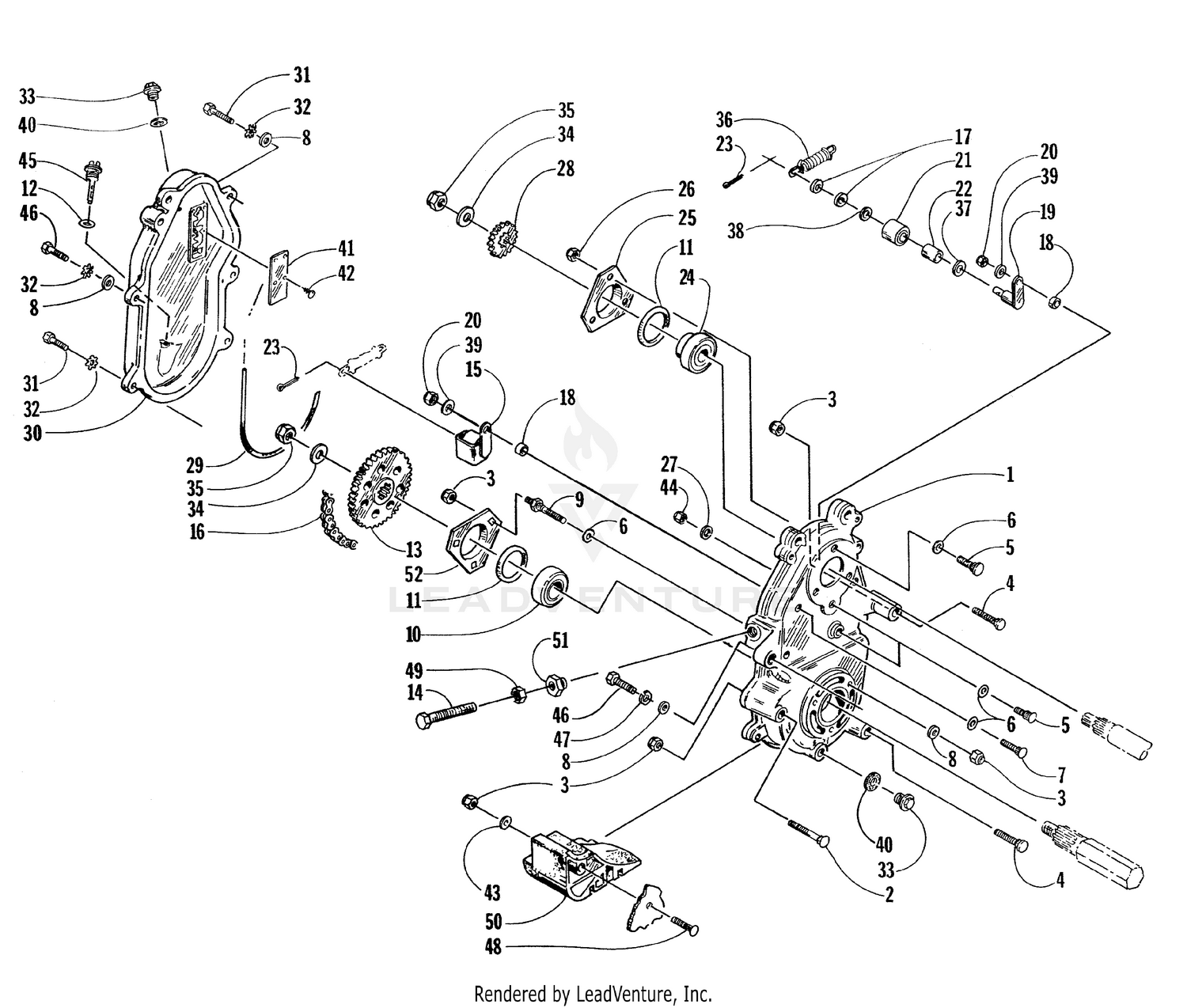

DRIVE/DROPCASE ASSEMBLY [67278]

Parts (53)

Ref	Part Number	Description
1	0702-417	Dropcase, W/Studs-PTD Price: $185.95
2	8011-143	Bolt, Carriage Price: $1.45
3	8040-426	Nut, Hex Lock - NYL 5/16-18 Z&Y Price: $1.79
4	8011-139	Screw, Cap Price: $1.45
5	0123-523	Bolt, Ribbed Price: $5.95
6	0607-025	O-Ring, Stud Price: $1.57
7	0623-117	Bolt, Ribbed Price: $22.99
8	8050-247	Washer Price: $0.70
9	0623-317	Stud Price: $22.99
10	1702-179	Kit, Replacement Bearing-1" Price: $83.95
11	0107-003	Seal Price: $1.45
12	0670-183	O-Ring Price: $0.35
13	0602-451	SPROCKET,39T-PM-13 WIDE Price: $73.95
13	0602-453	Sprocket, 40T (Above 4,000 ft Alt.) Price: $94.95
14	0602-638	Screw, Chain Roller Price: $14.95
15	0702-324	ADJUSTER,CHAIN-MANUAL (BIG BUSHING) Price: $67.95
16	1602-041	CHAIN, 70P - 13 WIDE Price: $121.95
17	8050-212	Washer Price: $0.82
18	0602-369	Bushing Price: $13.28
19	0702-115	Arm, Tightener Price: $40.95
20	0623-122	Nut, Lock Price: $1.57
21	0702-129	Roller, Tightener (w/Bearing) Price: $59.95
22	0602-383	Bearing Price: $0.79
23	0123-082	Pin, Cotter Price: $0.09
24	1702-180	Kit, Replacement Bearing-7/8" Price: $68.95
25	0602-198	PLATE,FLANGE-BEARING (TRIANGLE) Price: $13.28
26	8041-426	Nut, Hex - Thin Lock Price: $0.46
27	0623-094	WASHER, FLAT - 5/16 ID Price: $0.48
28	0602-444	Sprocket, 19T (Above 4,000 ft Alt.) Price: $56.11
28	0602-456	Sprocket, 20T Price: $70.95
29	0602-437	Seal, Dropcase Price: $14.49
30	0702-489	COVER,DROPCASE-ASSY-PTD BLK Price: $78.95
31	8002-134	SCREW,CAP-HH 5/16-18 X1.25 G5 Z&Y Price: $0.49
32	8053-242	Washer, External Tooth Lock Price: $1.53
33	0623-293	Plug, Drain Price: $2.91
34	0623-231	Washer, Spring Price: $4.60
35	0623-465	Nut, Lock Price: $8.43
36	0702-130	Spring Assembly Price: $16.92
37	0623-283	Washer Price: $0.39
38	0623-284	Washer Price: $0.49
39	8050-217	Washer, Flat Price: $0.24
40	0123-641	Washer, Fiber Price: $2.79
41	0602-221	Cover, Vent Price: $5.53
42	0623-081	Screw, Self-Tapping Price: $0.35
43	8050-242	Washer Price: $2.26
44	8042-426	NUT,5/16-18 HEX-REG-GR5 Z&Y Price: $0.71
45	0602-462	Stick, Oil Level Price: $12.07
46	8002-135	SCREW,CAP-HH 5/16-18 X1.50 G5 Z&Y Price: $0.49
47	8051-242	WASHER,SPR LOCK-5/16 .314X.583X.078 Z&Y Price: $1.77
48	8011-137	Bolt, Ribbed Price: $0.32
49	0123-150	Nut Price: $0.48
50	0616-964	Guard, Dropcase Price: $146.95
51	0602-876	Adapter, Manual Adjust Price: $15.86
