510005285
Seat support R.H

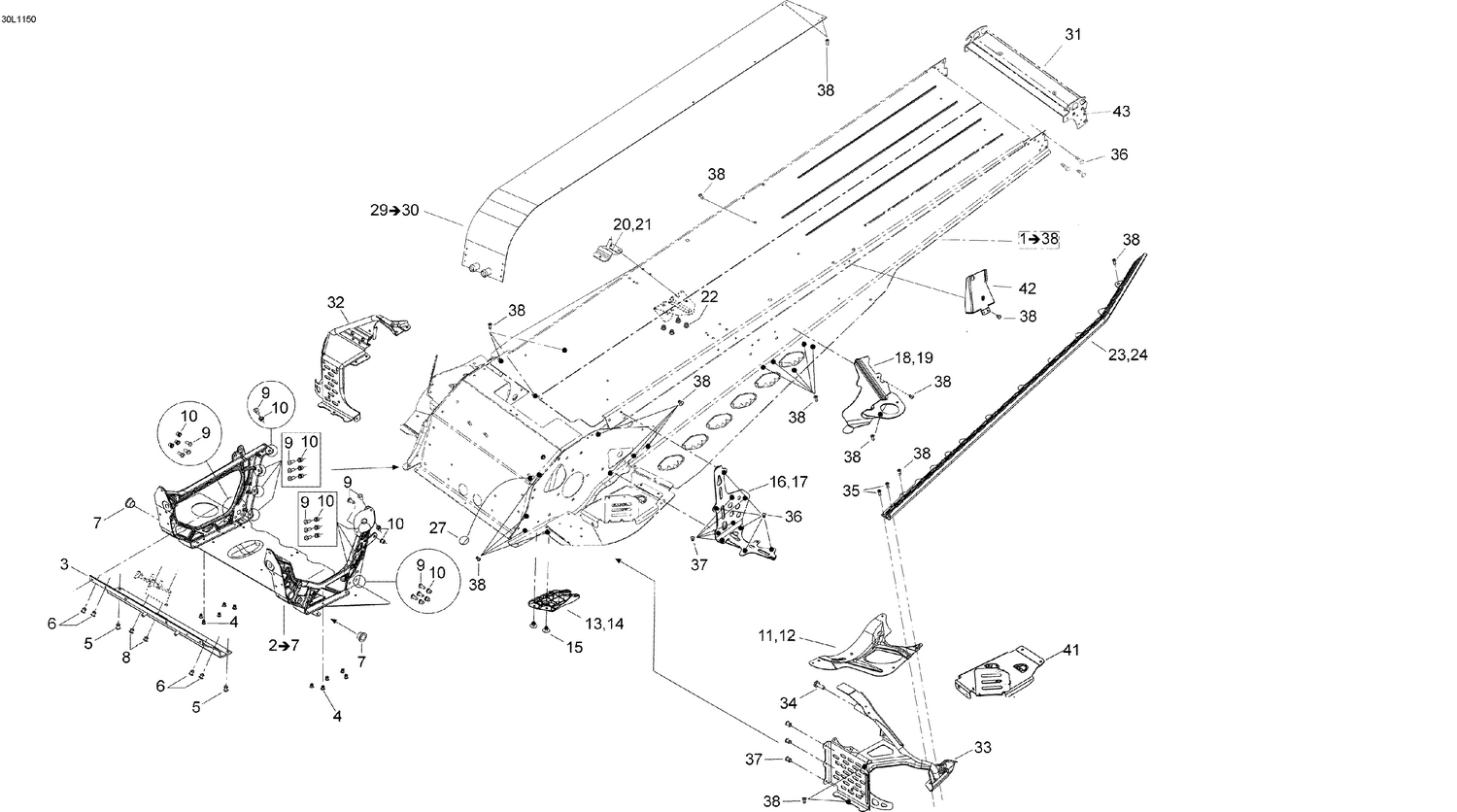

Схема сборки, где используется деталь
Used in (14 assemblies)
| Brand | Assembly | Path | Ref |
|---|---|---|---|
| LNX_EN_US | 09- Frame | Lynx / 2011 / Ranger / 49 Ranger 600 E-TEC, 2011 / 09- Frame | 42 |
| LNX_EN_US | 09- Seat | Lynx / 2011 / Ranger / 49 Ranger 600 E-TEC, 2011 / 09- Seat | 7 |
| LNX_EN_US | 09- Frame | Lynx / 2012 / Adventure / Adventure LX 600 ACE, 2012 / 09- Frame | 42 |
| LNX_EN_US | 09- Seat | Lynx / 2012 / Adventure / Adventure LX 600 ACE, 2012 / 09- Seat | 7 |
| LNX_EN_US | 09- Frame | Lynx / 2012 / Ranger / 49 Ranger 600 ACE, 2012 / 09- Frame | 42 |
| LNX_EN_US | 09- Seat | Lynx / 2012 / Ranger / 49 Ranger 600 ACE, 2012 / 09- Seat | 7 |
| LNX_EN_US | 09- Frame | Lynx / 2012 / Ranger / 49 Ranger 600 E-TEC, 2012 / 09- Frame | 30 |
| LNX_EN_US | 09- Seat | Lynx / 2012 / Ranger / 49 Ranger 600 E-TEC, 2012 / 09- Seat | 7 |
| LNX_EN_US | 09- Seat | Lynx / 2013 / Adventure / Adventure LX 600 ACE, 2013 000LRDA00 / 09- Seat | 23 |
| LNX_EN_US | 09- Seat | Lynx / 2013 / Ranger / 49 Ranger 600 ACE, 2013 000FDDA00 / 09- Seat | 7 |
| LNX_EN_US | 09- Seat | Lynx / 2013 / Ranger / 49 Ranger 600 E-TEC, 2013 000FCDA00 / 09- Seat | 7 |
| LNX_EN_US | 09- Seat | Lynx / 2014 / Adventure / Adventure LX 600 ACE, 2014 000LREA00 / 09- Seat | 22 |
| LNX_EN_US | 09- Seat | Lynx / 2014 / Ranger / 49 Ranger 600 ACE, 2014 000FDEA00 / 09- Seat | 7 |
| LNX_EN_US | 09- Seat | Lynx / 2014 / Ranger / 49 Ranger 600 E-TEC, 2014 000FCEA00 / 09- Seat | 7 |
