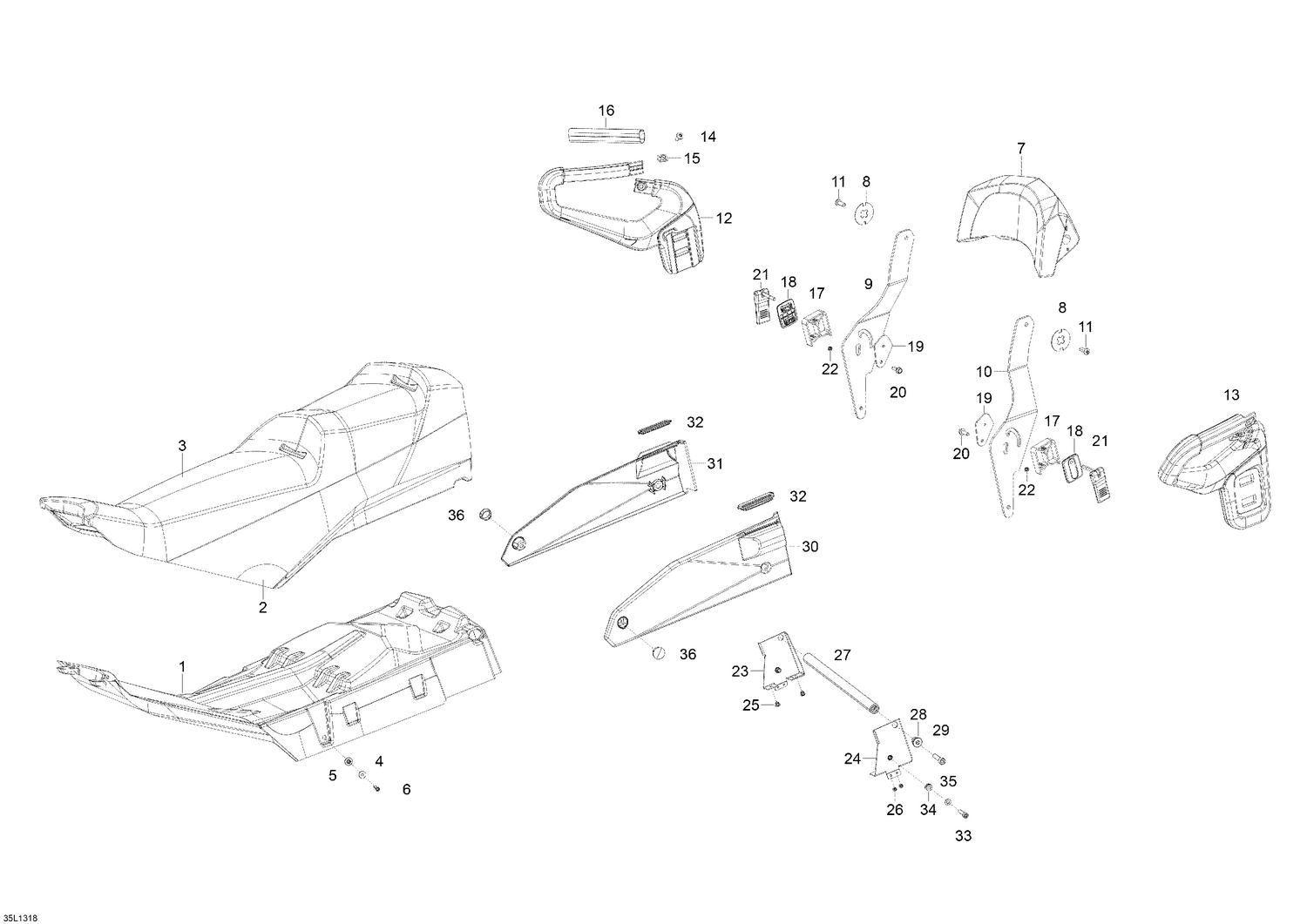

09- Seat
Parts (35)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 510005276 | Seat Base |
| 2 | 510005508 | Seat Foam |
| 3 | 510005344 | Seat Cover |
| 4 | 510005402 | Bushing |
| 5 | 234062410 | Flat Washer 6 mm |
| 6 | 205062544 | Socket HD. Screw M6 x 25 |
| 7 | 510005258 | Backrest Foam Ass´y |
| 8 | 510005312 | LIMITER PLATE - Call your local BRP dealership |
| 9 | 510005597 | Arm RH Black |
| 10 | 510005598 | Arm LH Black |
| 11 | 250000553 | Forming Screw M10 x 25 |
| 12 | 510005865 | RH HANDLE - Call your local BRP dealership This part replaces 510004948. |
| 13 | 510005862 | LH Handle This part replaces 510004947. |
| 14 | 250000721 | Torx Truss Screw M6 X 16 This part replaces 250000129. |
| 15 | 293100003 | Weld Nut |
| 16 | 510004449 | Handle Grip |
| 17 | 510004939 | Adapter |
| 18 | 510006602 | Passenger Handle Trim This part replaces 510004405. |
| 19 | 510004990 | Counter Plate |
| 20 | 250000376 | Hex Forming Screw DIN.7500D |
| 21 | 510004992 | Lock Ass´y |
| 22 | 510005540 | Sleeve |
| 23 | 510005285 | Support Plate RH |
| 24 | 510005286 | Support Plate LH |
| 25 | 293150119 | Rivet |
| 26 | 390909200 | Avex Rivet |
| 27 | 510005284 | Axle |
| 28 | 510005287 | Bushing |
| 29 | 40134 | Screw Socket HD.DIN 912 |
| 30 | 510005331 | Seat Side Cover LH |
| 31 | 510005332 | Seat Side Cover RH |
| 32 | 510005394 | Cover |
| 33 | 205403096 | Socket Screw M10 x 30 |
| 34 | 510005514 | Bushing |
