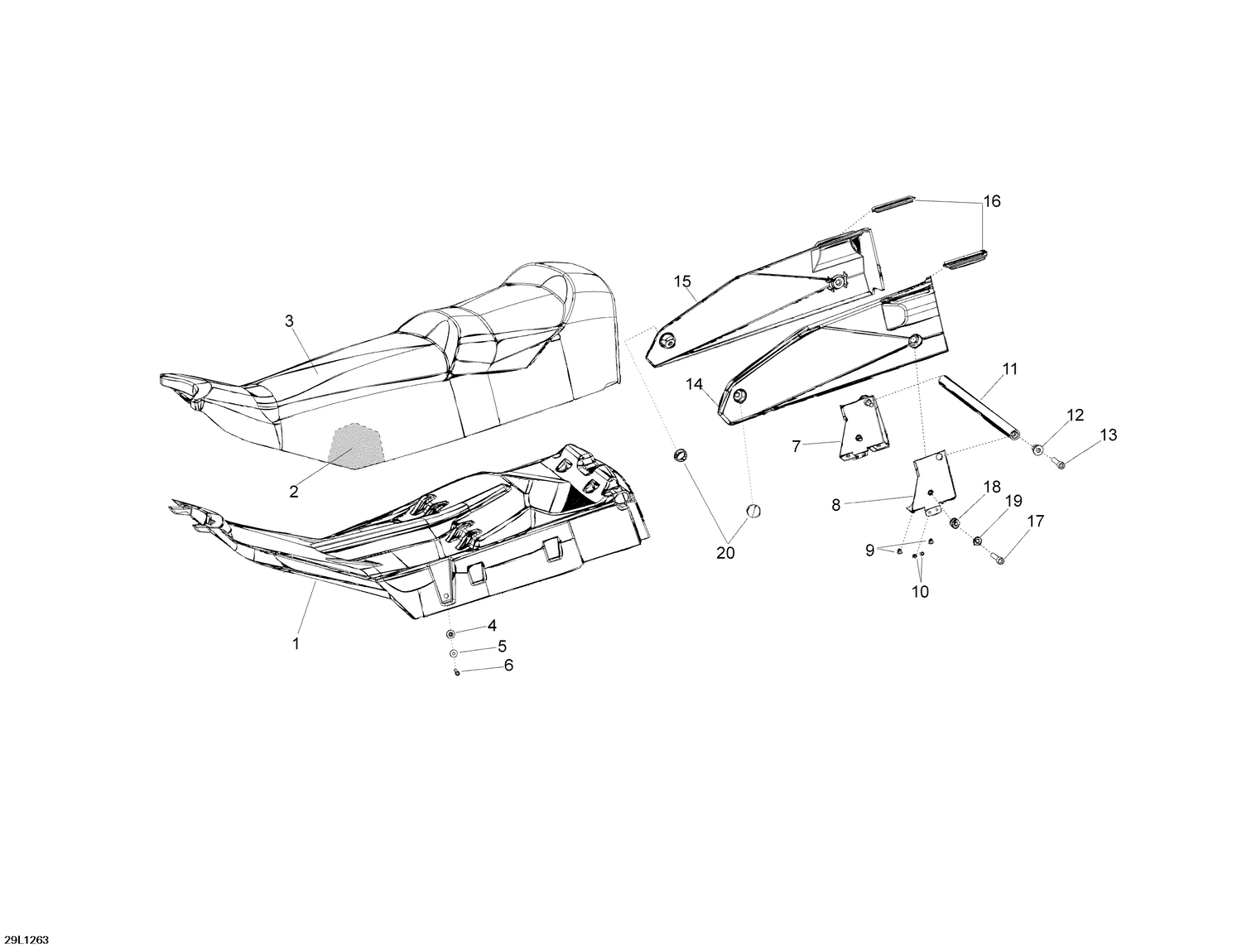

09- Seat
Parts (19)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 510005276 | Base seat |
| 2 | 510005277 | Foam |
| 3 | 510005528 | Cover |
| 4 | 510005402 | Bushing |
| 5 | 234062410 | Flat Washer 6 mm |
| 6 | 205062544 | Socket Head Screw M6 X 25 |
| 7 | 510005285 | Support plate RH |
| 8 | 510005286 | Support plate LH |
| 9 | 293150174 | Hemlock Rivet, 6.4 mm |
| 10 | 390909200 | Avex Rivet |
| 11 | 510005284 | Axle |
| 12 | 510005287 | Bushing |
| 13 | 205504044 | SCREW-SOCKET DIN.912 S.GRIP - Call your local BRP dealership |
| 14 | 510005331 | Seat side cover L.H |
| 15 | 510005332 | Seat side cover R.H |
| 16 | 510005394 | Cover |
| 17 | 205403096 | Screw socket BN.HD.ISO.7380 |
| 18 | 510005460 | Bushing |
| 19 | 250200123 | Flat washer |
