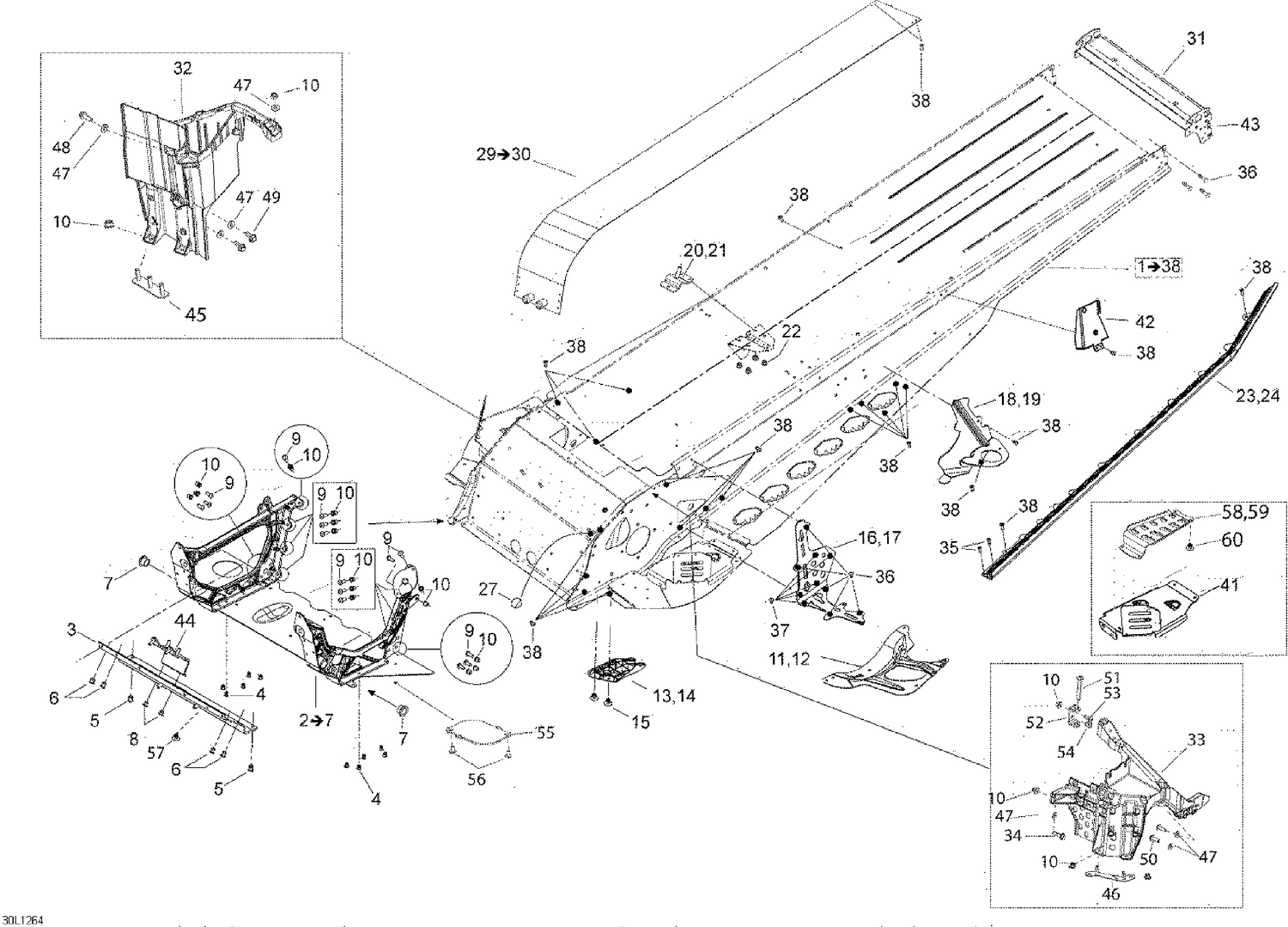

09- Frame
Parts (54)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 518326507 | E Module |
| 3 | 518326198 | Front Member |
| 4 | 390909100 | Avex Rivet |
| 5 | 293150120 | Hemlock Rivet |
| 6 | 293150119 | Hemlock Rivet, 6.5 mm |
| 7 | 505072690 | Leg Bushing |
| 8 | 293150174 | Hemlock Rivet, 6.5 mm |
| 9 | 207662044 | Hex. Flange Screw M6 X 20 |
| 10 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 11 | 518324874 | RH Reinforcement |
| 12 | 518324875 | LH Reinforcement |
| 13 | 518325782 | RH Deflector |
| 14 | 518325783 | LH Deflector |
| 15 | 293150104 | Pop Rivet 3/16 |
| 16 | Not | Available As Spare Part - RH Front Support |
| 17 | Not | Available As Spare Part - LH Front Support |
| 18 | Not | Available As Spare Part - RH Rear Support |
| 19 | Not | Available As Spare Part - LH Rear Support |
| 20 | 518326421 | RH Rear Base |
| 21 | 518326443 | LH Rear Base |
| 22 | 293150119 | Rivet |
| 23 | 518327068 | LH Roller |
| 24 | 518327069 | RH Roller |
| 27 | 518325560 | Adhesive Patch |
| 30 | Not | Available As Spare Part - Avex Rivet |
| 31 | 518326379 | Rear Cap |
| 32 | 518326472 | Battery support |
| 33 | 518326820 | Caliber |
| 34 | 207162544 | Screw hex cap |
| 35 | 390402300 | Pop Rivet 3/16" |
| 36 | 207582586 | Hex. Flange Screw M8 X 25, Scotch Grip |
| 37 | 390909100 | Avex Rivet |
| 38 | 390909200 | Avex Rivet |
| 39 | Not | Available As Spare Part - Rivet |
| 41 | Not | Available As Spare Part - Footrest L.H. |
| 42 | 510005285 | Seat support R.H |
| 42 | 510005286 | Seat support L.H |
| 43 | 518326637 | Rear side plate |
| 44 | 518326178 | Engine support |
| 45 | 518326550 | Attach R.H |
| 46 | 518326986 | Attach L.H |
| 47 | 250200039 | Flat Washer |
| 48 | 210262040 | Screw Forming M6 X 20 |
| 49 | 207661654 | Screw-Hex.Flange Din.6921 This part replaces 207661684. |
| 50 | 250000536 | Torx truss M6x18 |
| 51 | 250000535 | Torx truss M6x55 |
| 52 | 518326961 | Attach |
| 53 | 250000534 | Screw |
| 54 | 293150266 | Rivet Ornit 6,5 X 14.5 This part replaces 293150147. |
| 55 | 518326757 | Oil Plate |
| 56 | 250000767 | Torx Truss Screw M6 X 12 This part replaces 250000325. |
| 57 | 293730042 | Dart |
| 58 | 520000887 | Foot rest R.H |
| 59 | 520000888 | Foot rest L.H |
