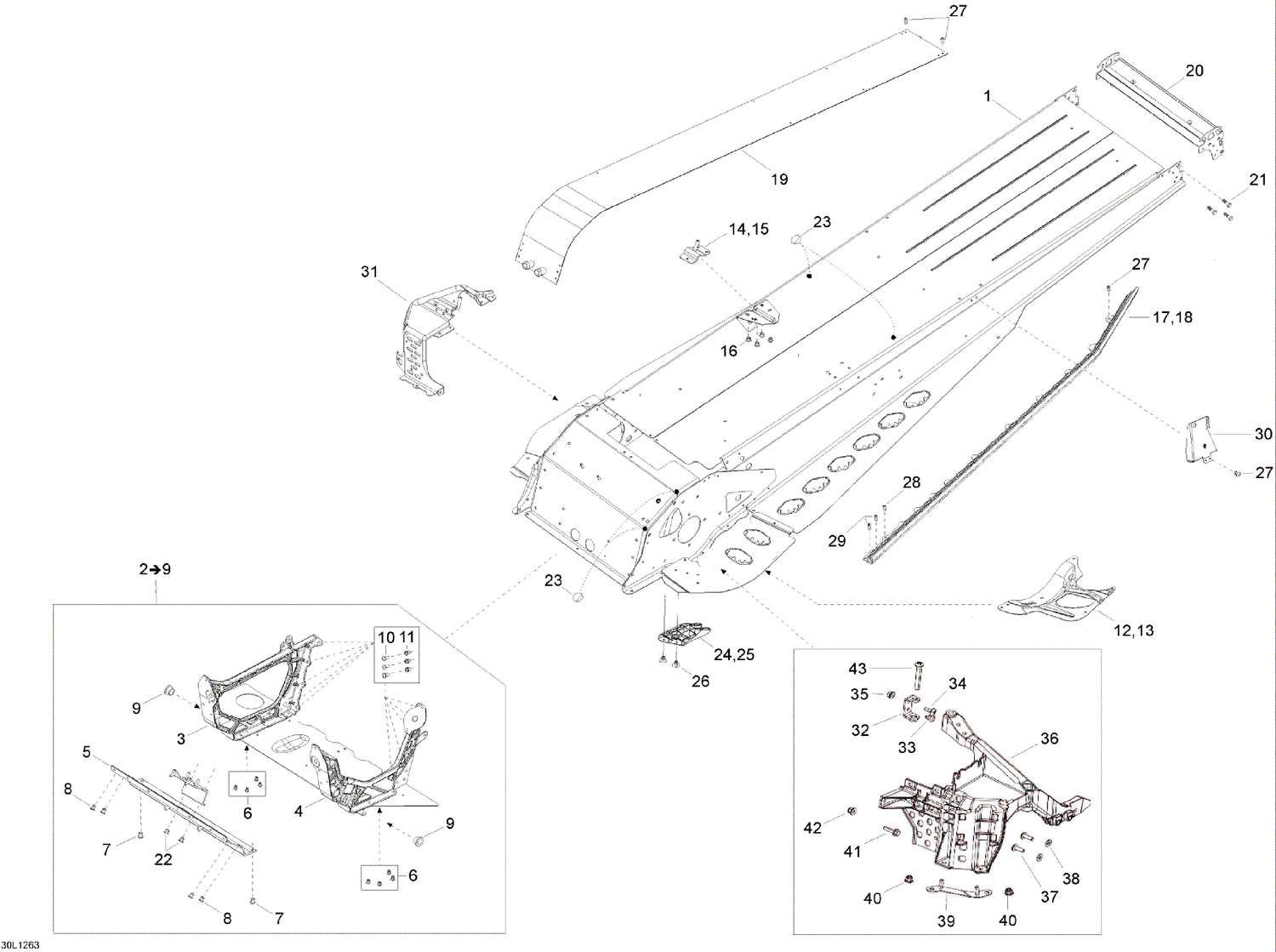

09- Frame — Parts Catalog

Ref	Part Number	Description
2	518326077	E Module
3	518326795	RH Member
4	518326796	LH Member
5	518326198	Front Member
6	390909100	Avex Rivet
7	293150120	Hemlock Rivet 6.5 mm
8	293150119	Hemlock Rivet, 6.5 mm
9	505072690	Leg Bushing
10	207662044	Hex. Flange Screw M6 X 20
11	233261414	Hex. Flange Elastic Nut M6 x 1.0
12	518324874	RH Reinforcement
13	518324875	LH Reinforcement
14	518326421	RH Rear Base
15	518326443	LH Rear Base
16	293150119	Hemlock Rivet, 6.5 mm
17	518327068	LH Roller Ranger
18	518327069	RH Roller Ranger
19	509000975	Radiator This part replaces 509000626.
20	518326379	Rear Profile
21	207582586	Hex. Flange Screw M8 X 25, Scotch Grip
22	293150174	Hemlock Rivet, 6.4 mm
23	518325560	Adhesive Patch
24	518325782	RH Deflector
25	518325783	LH Deflector
26	293150104	Pop Rivet 3/16
27	390909200	Avex Rivet
28	390909100	Avex Rivet
29	390402300	Pop Rivet 3/16"
30	510005285	Seat Support R.H
30	510005286	Seat Support L.H
31	518328938	Etrier Droit *Rh.Stirup This part replaces 518326216.
32	518326961	U-Attach
33	293150266	Rivet Ornit 6,5 X 14.5 This part replaces 293150147.
34	250000534	Tork Screw M6 X 16
35	233061414	Hex. Flanged Nut M6
36	518326820	LH Stirup
37	250000779	Torx Screw M6 X 1.0 X 18, Scotch Grip This part replaces 250000402.
38	250200039	Flat Washer
39	518326986	Attach
40	233261414	Hex. Flange Elastic Nut M6 x 1.0
41	207162544	Hex. Screw M6 X 25
42	233261414	Hex. Flange Elastic Nut M6 x 1.0
