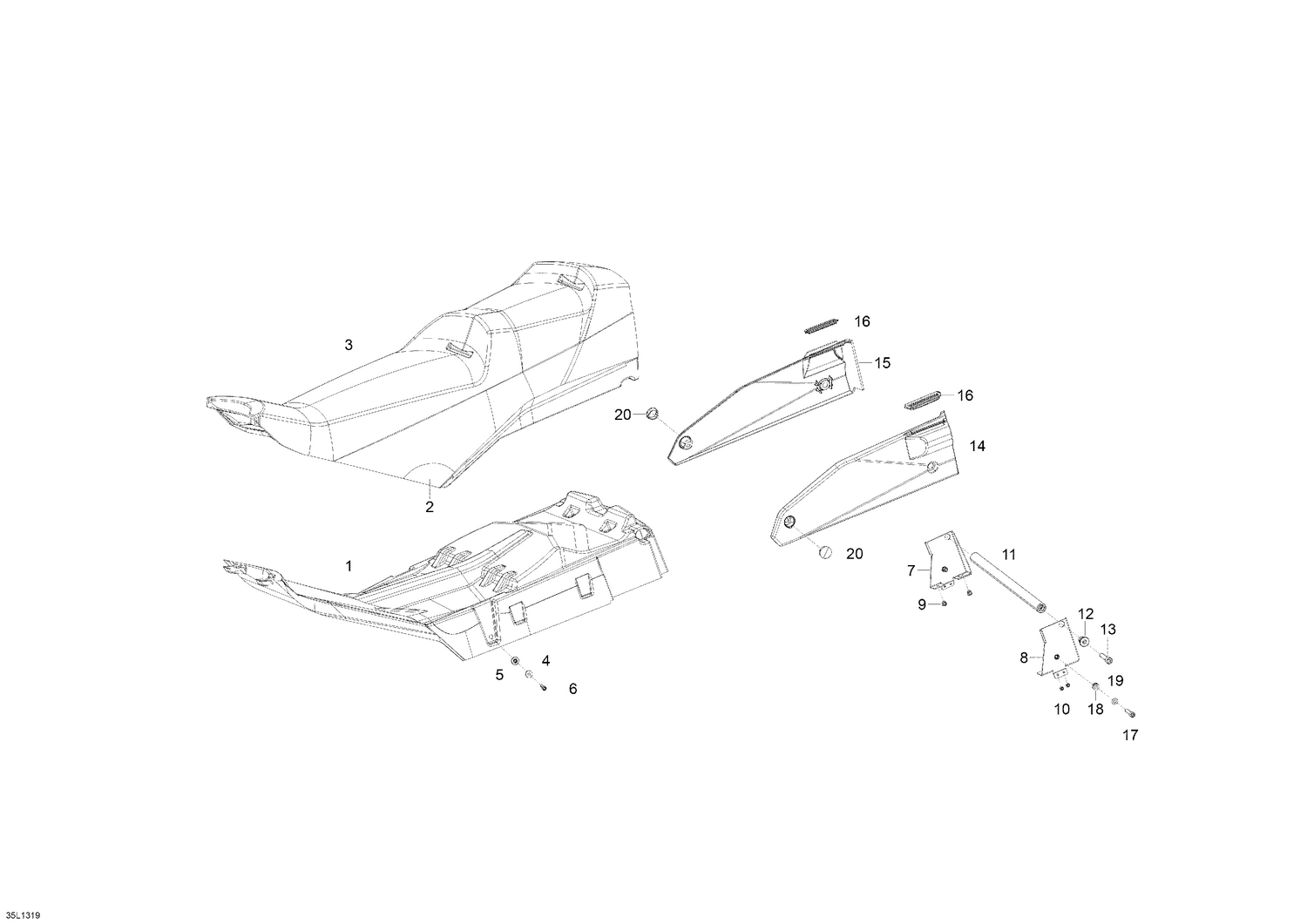

09- Seat
Parts (19)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 510005276 | Seat Base |
| 2 | 510005277 | Seat Foam |
| 3 | 510005703 | Seat Cover |
| 4 | 510005402 | Bushing |
| 5 | 234062410 | Flat Washer 6 mm |
| 6 | 205062544 | Socket HD. Screw M6 x 25 |
| 7 | 510005285 | Support Plate RH |
| 8 | 510005286 | Support Plate LH |
| 9 | 293150119 | Rivet |
| 10 | 390909200 | Avex Rivet |
| 11 | 510005284 | Axle |
| 12 | 510005287 | Bushing |
| 13 | 40134 | Screw Socket HD.DIN 912 |
| 14 | 510005331 | Seat Side Cover LH |
| 15 | 510005332 | Seat Side Cover RH |
| 16 | 510005394 | Cover |
| 17 | 205403096 | Socket Screw M10 x 30 |
| 18 | 510005460 | Bushing |
| 19 | 250200123 | Flat Washer |
