417300172
Bracket

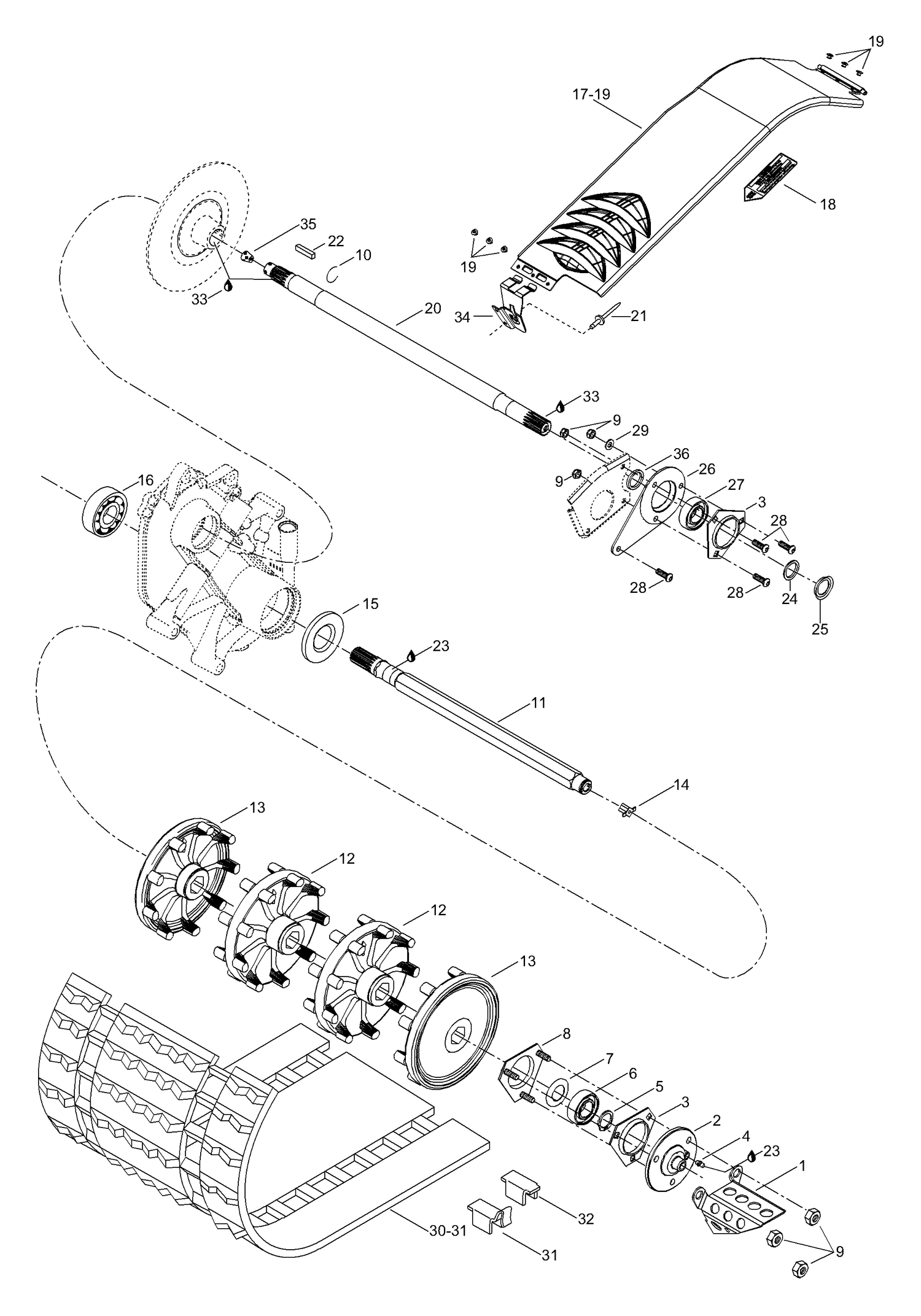

Схема сборки, где используется деталь
Used in (25 assemblies)
| Brand | Assembly | Path | Ref |
|---|---|---|---|
| LNX_EN_US | 05- Drive Axle | Lynx / 2002 / Ranger FCE, 2002 / 05- Drive Axle | 34 |
| LNX_EN_US | 05- Drive Axle | Lynx / 2003 / Enduro 400 F, 2003 / 05- Drive Axle | 33 |
| LNX_EN_US | 05- Drive Axle | Lynx / 2003 / Enduro 550 F, 2003 / 05- Drive Axle | 33 |
| LNX_EN_US | 05- Drive Axle | Lynx / 2003 / Ranger FCE, 2003 / 05- Drive Axle | 34 |
| LNX_EN_US | 05- Drive Axle | Lynx / 2003 / Ranger V-1000, 2003 / 05- Drive Axle | 25 |
| LNX_EN_US | 05- Drive Axle | Lynx / 2004 / Enduro 400 F RC, 2004 / 05- Drive Axle | 33 |
| LNX_EN_US | 05- Drive Axle | Lynx / 2004 / Enduro 550 F RC, 2004 / 05- Drive Axle | 33 |
| LNX_EN_US | 05- Drive Axle | Lynx / 2004 / Ranger 550, 2004 / 05- Drive Axle | 34 |
| LNX_EN_US | 05- Drive Axle | Lynx / 2004 / Ranger V-1000, 2004 / 05- Drive Axle | 25 |
| LNX_EN_US | 05- Pulley System, 400RC | Lynx / 2005 / Enduro 400RC, 2005 / 05- Pulley System, 400RC | 10 |
| LNX_EN_US | 05- Pulley System, 550, 550RC | Lynx / 2005 / Enduro 550, 2005 / 05- Pulley System, 550, 550RC | 10 |
| LNX_EN_US | 05- Pulley System | Lynx / 2005 / Explorer 550, 2005 / 05- Pulley System | 10 |
| LNX_EN_US | 05- Pulley System | Lynx / 2005 / Touring V-1000, 2005 / 05- Pulley System | 9 |
| LNX_EN_US | 05- Pulley System | Lynx / 2006 / Ranger 550, 2006 / 05- Pulley System | 9 |
| LNX_EN_US | 05- Pulley System | Lynx / 2006 / Safari 400, 2006 / 05- Pulley System | 10 |
| SKI_DOO_EN_US | 06- Hydraulic Brake And Belt Guard | Ski-Doo / 2002 / Summit / Summit 500 F, 2002 / 06- Hydraulic Brake And Belt Guar | 1 |
| SKI_DOO_EN_US | 05- Driven Pulley And Belt Guard | Ski-Doo / 2003 / Grand Touring / Grand Touring V-1000, 2003 / 05- Driven Pulley | 27 |
| SKI_DOO_EN_US | 06- Hydraulic Brake And Belt Guard | Ski-Doo / 2003 / Skandic / Skandic 500F, 2003 / 06- Hydraulic Brake And Belt Gua | 1 |
| SKI_DOO_EN_US | 06- Brake (Legend GT 380F) | Ski-Doo / 2004 / Legend / Legend 380F, 2004 / 06- Brake (Legend GT 380F) | 1 |
| SKI_DOO_EN_US | 06- Brake (550F) | Ski-Doo / 2004 / Legend / Legend 550F, 2004 / 06- Brake (550F) | 1 |
| SKI_DOO_EN_US | 05- Driven Pulley | Ski-Doo / 2004 / Legend / Legend V-1000, 2004 / 05- Driven Pulley | 27 |
| SKI_DOO_EN_US | 06- Brake (MX Z 380F) | Ski-Doo / 2004 / MX Z / MX Z 380F, 2004 / 06- Brake (MX Z 380F) | 1 |
| SKI_DOO_EN_US | 05- Pulley System SKANDIC 550F | Ski-Doo / 2004 / Skandic / Skandic 550F, 2004 / 05- Pulley System SKANDIC 550F | 41 |
| SKI_DOO_EN_US | 05- Pulley System SUMMIT 550F | Ski-Doo / 2004 / Summit / Summit 550F, 2004 / 05- Pulley System SUMMIT 550F | 41 |
| SKI_DOO_EN_US | 05- Driven Pulley | Ski-Doo / 2005 / Legend / Legend V-1000, 2005 / 05- Driven Pulley | 27 |
