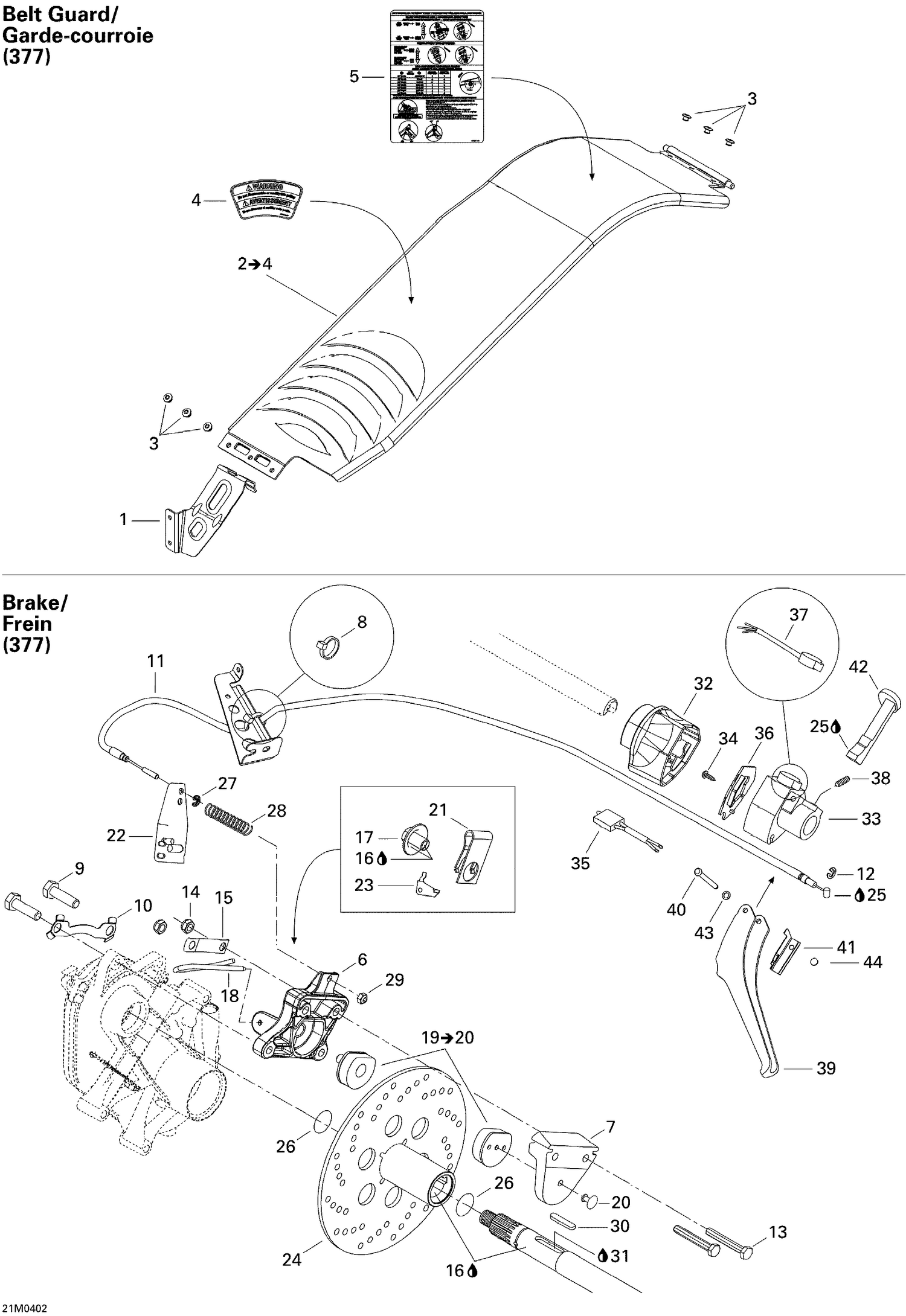

| Ref | Part Number | Description |
|---|
| 1 |
417300172 |
Bracket |
| 3 |
390402200 |
Pop Rivet 3/16" |
| 4 |
516002670 |
WARNING DECAL, SECURITY BELT GUARD - Call your local BRP dealership This part replaces 516001190. |
| 5 |
516001639 |
Decal, Suspension Adjustment |
| 6 |
507032303 |
Caliper |
| 7 |
414466800 |
ANVIL - Call your local BRP dealership |
| 8 |
414115200 |
Tie-Rap 180 mm |
| 9 |
207103544 |
Hex. Screw M10 X 35 |
| 10 |
507032316 |
LOCKING TAB - Call your local BRP dealership |
| 11 |
507032315 |
Brake Cable |
| 12 |
414274500 |
Circlip |
| 13 |
207085544 |
Hex. Screw M8 X 55 |
| 14 |
232581414 |
Hex. Elastic Stop Nut M8 |
| 15 |
507020400 |
LOCK-TAB - Call your local BRP dealership |
| 16 |
219704461 |
LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership |
| 17 |
507032310 |
WELDED RATCHET WHEEL - Call your local BRP dealership |
| 18 |
507032306 |
HAIR PIN - Call your local BRP dealership |
| 20 |
293150104 |
Pop Rivet 3/16" This part replaces 390409600. |
| 21 |
507020200 |
RELEASE SPRING - Call your local BRP dealership |
| 22 |
507021500 |
LEVER - Call your local BRP dealership |
| 23 |
507009400 |
RATCHET SPRING - Call your local BRP dealership |
| 24 |
507029000 |
WELDED DISK - Call your local BRP dealership |
| 25 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 26 |
414928900 |
O'RING - Call your local BRP dealership |
| 27 |
371901300 |
Circlip |
| 28 |
414460600 |
SPRING - Call your local BRP dealership |
| 29 |
232561414 |
Elastic Stop Nut M6 |
| 30 |
507021300 |
KEY - Call your local BRP dealership |
| 31 |
293800073 |
Loctite 277, 10 ml |
| 32 |
507032311 |
COVER-BRAKE - Call your local BRP dealership |
| 33 |
572086500 |
BRAKE HOUSING - Call your local BRP dealership |
| 34 |
414473200 |
Screw |
| 35 |
507032318 |
Brake Switch |
| 36 |
507032328 |
Plate |
| 37 |
507032314 |
DIMMER SWITCH - Call your local BRP dealership |
| 38 |
414440800 |
Socket Set Screw M8 X 10 |
| 39 |
572025700 |
BRAKE HANDLE - Call your local BRP dealership |
| 40 |
517229400 |
PIN - Call your local BRP dealership |
| 41 |
507032317 |
SPRING - Call your local BRP dealership |
| 42 |
572025200 |
Brake Lever |
| 43 |
414729400 |
WAVE SPRING WASHER METALCRAFT - Call your local BRP dealership |
