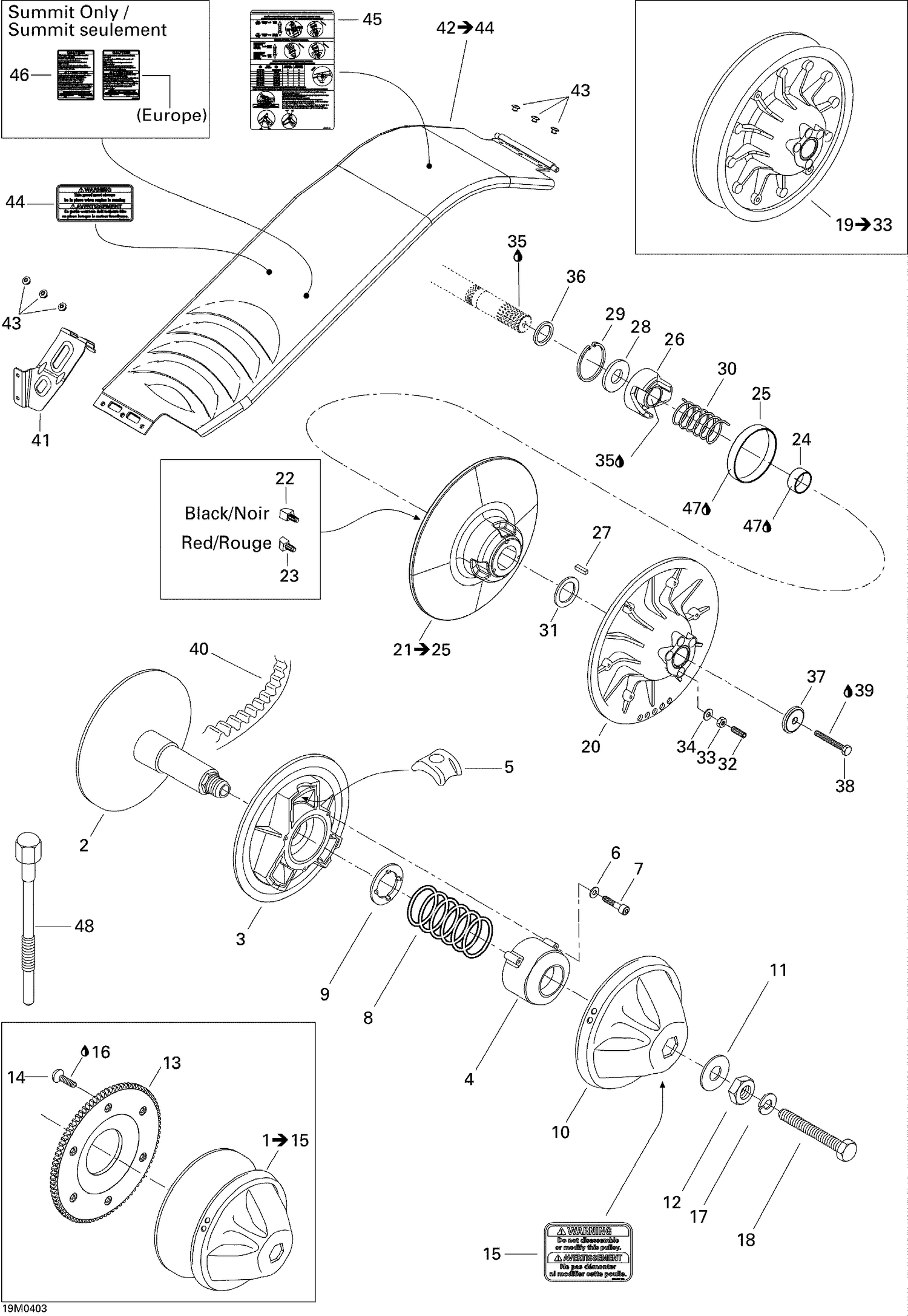

05- Pulley System SKANDIC 550F
Parts (42)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 415128601 | INNER FLANGE - Call your local BRP dealership |
| 3 | 417126692 | SLIDING FLANGE - Call your local BRP dealership |
| 4 | 415128602 | SPRING COVER - Call your local BRP dealership |
| 5 | 415128603 | Unit |
| 6 | 420245370 | WASHER - Call your local BRP dealership |
| 7 | 415128606 | SOCKET HEAD SCREW M6 X 35 - Call your local BRP dealership |
| 8 | 415128607 | Spring, Violet/Green |
| 9 | 417126694 | SPRING SEAT - Call your local BRP dealership |
| 10 | 415128609 | Cap |
| 11 | 415128610 | WASHER - Call your local BRP dealership |
| 12 | 417118300 | NUT - Call your local BRP dealership |
| 13 | 417300186 | RING GEAR - Call your local BRP dealership |
| 14 | 236281684 | Hex. Screw M8 X 16 |
| 15 | 516001726 | Security Label |
| 16 | 293800005 | Loctite 271, 10 ml |
| 17 | 392002800 | WASHER-LOCK HELICAL SPRING - Call your local BRP dealership |
| 18 | 417113800 | BOLT - Call your local BRP dealership |
| 20 | 417126663 | Fixed Flange |
| 22 | 417126538 | Slider Shoe, Front |
| 23 | 417126539 | SLIDER SHOE, REAR - Call your local BRP dealership |
| 24 | 417126515 | CUSHION - Call your local BRP dealership |
| 25 | 417126562 | Bushing |
| 26 | 417126680 | Cam |
| 27 | 414820800 | Key |
| 28 | 417126555 | Washer |
| 29 | 371903100 | CIRCLIP - Call your local BRP dealership |
| 30 | 504152070 | RELEASE SPRING, WHITE - Call your local BRP dealership |
| 31 | 504141900 | Thrust Washer |
| 32 | 206263044 | Socket Set Screw M6 X 30 |
| 33 | 232061414 | Hex. Nut M6 |
| 34 | 420245370 | WASHER - Call your local BRP dealership |
| 35 | 219704461 | LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership |
| 36 | 504149100 | Spacer |
| 37 | 517302322 | Strength Washer |
| 38 | 207087544 | HEX. SCREW M8 X 75 - Call your local BRP dealership |
| 39 | 293800060 | Loctite 243, 10 ml |
| 40 | 415060600 | Drive Belt |
| 41 | 417300172 | Bracket |
| 43 | 390402200 | Pop Rivet 3/16" |
| 44 | 516002670 | WARNING DECAL, SECURITY BELT GUARD - Call your local BRP dealership This part replaces 516001190. |
| 45 | 516001640 | Decal, Suspension Adjustment Decal |
| 47 | 413703100 | Loctite 609, 10 ml |
