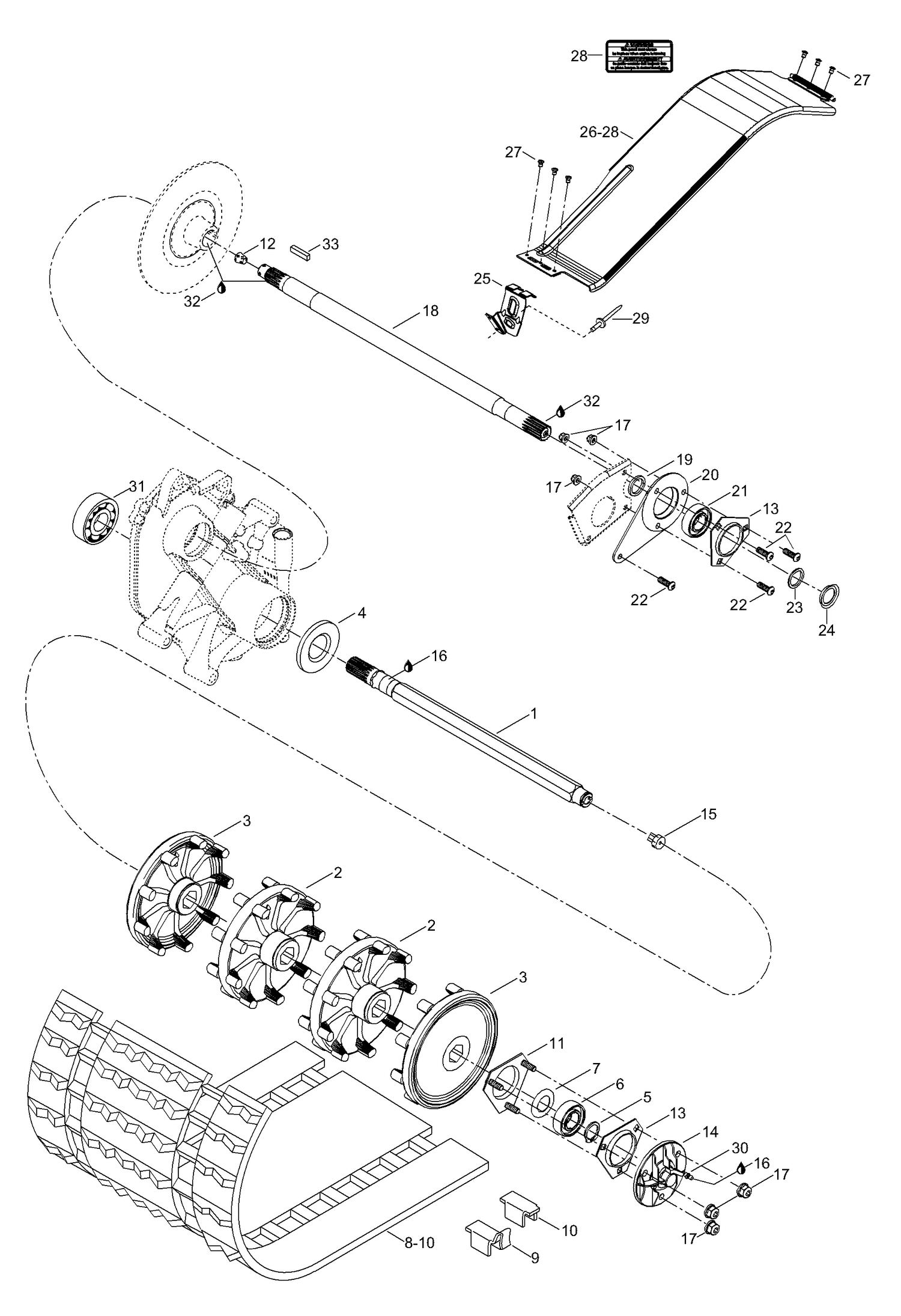

| Ref | Part Number | Description |
|---|
| 1 |
501027400 |
DRIVE AXLE - Call your local BRP dealership |
| 2 |
504151781 |
SPROCKET, 9 TEETH - Call your local BRP dealership |
| 3 |
504151782 |
HALF SPROCKET, 9 TEETH - Call your local BRP dealership |
| 4 |
504151918 |
Oil seal |
| 5 |
371910200 |
CIRCLIP - Call your local BRP dealership |
| 6 |
293350060 |
Ball Bearing This part replaces 504152009. |
| 7 |
501017400 |
BEARING PROTECTOR - Call your local BRP dealership |
| 9 |
5318330 |
Guide cleat |
| 10 |
5318329 |
Slide cleat |
| 11 |
504151860 |
BEARING HOUSING - Call your local BRP dealership |
| 12 |
414784800 |
CORK - Call your local BRP dealership |
| 13 |
501025000 |
FLANGE - Call your local BRP dealership |
| 14 |
504152173 |
FLANGE, SPEEDO - Call your local BRP dealership |
| 15 |
504152040 |
MAGNETIC ADAPTOR - Call your local BRP dealership |
| 16 |
413711500 |
SYNTHETIC GREASE - Call your local BRP dealership |
| 17 |
233281414 |
Hex. Flange Elastic Nut M8 This part replaces 33201. |
| 18 |
501026300 |
COUNTER SHAFT - Call your local BRP dealership |
| 19 |
504149100 |
Spacer |
| 20 |
080044200 |
Casting Spacer |
| 21 |
415129555 |
Ens Roulement Bille*Ball Bearing Kit This part replaces 504152026. |
| 22 |
40344 |
Allen screw M8 x 25 |
| 23 |
417300265 |
Spacer This part replaces 417300054. |
| 24 |
417300055 |
Protector |
| 25 |
417300172 |
Bracket |
| 27 |
390402200 |
Pop Rivet 3/16 |
| 28 |
516002670 |
WARNING DECAL, SECURITY BELT GUARD - Call your local BRP dealership This part replaces 516001190. |
| 29 |
36087 |
Rivet |
| 30 |
34011 |
Grease Fitting M6 x 1,00(1=10pcs) - Call your local BRP dealership |
| 31 |
504152005 |
Bearing ball |
| 32 |
293800023 |
LUBRICANT LOCTITE LB 8150 - Call your local BRP dealership |
