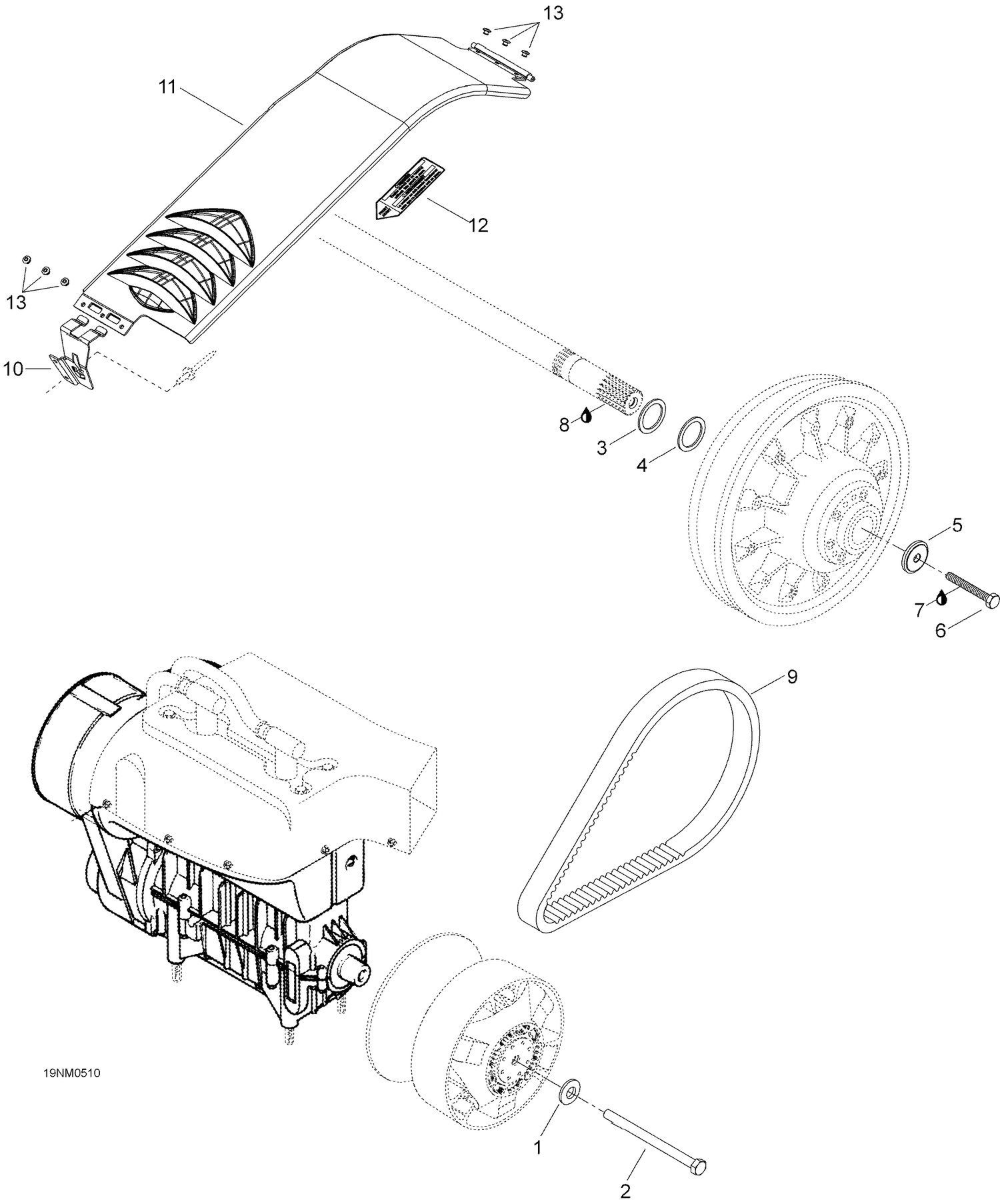

| Ref | Part Number | Description |
|---|
| 1 |
20090 |
Spring Washer DIN 6796,keltapass,(1=10pc - Call your local BRP dealership |
| 2 |
417113800 |
BOLT - Call your local BRP dealership |
| 3 |
XXX |
Not Available As Spare Parts |
| 4 |
417300055 |
Protector |
| 5 |
517302322 |
Strength Washer |
| 6 |
40089 |
M8 x 75DIN 931m8.8Zne(1=10pcs) - Call your local BRP dealership |
| 7 |
293800060 |
Loctite 243, 250 ml |
| 8 |
293800070 |
Lubricant LOCTITE LB 8150 - Call your local BRP dealership |
| 9 |
415060600 |
Drive Belt |
| 10 |
417300172 |
Bracket |
| 12 |
516002670 |
WARNING DECAL, SECURITY BELT GUARD - Call your local BRP dealership This part replaces 516001190. |
