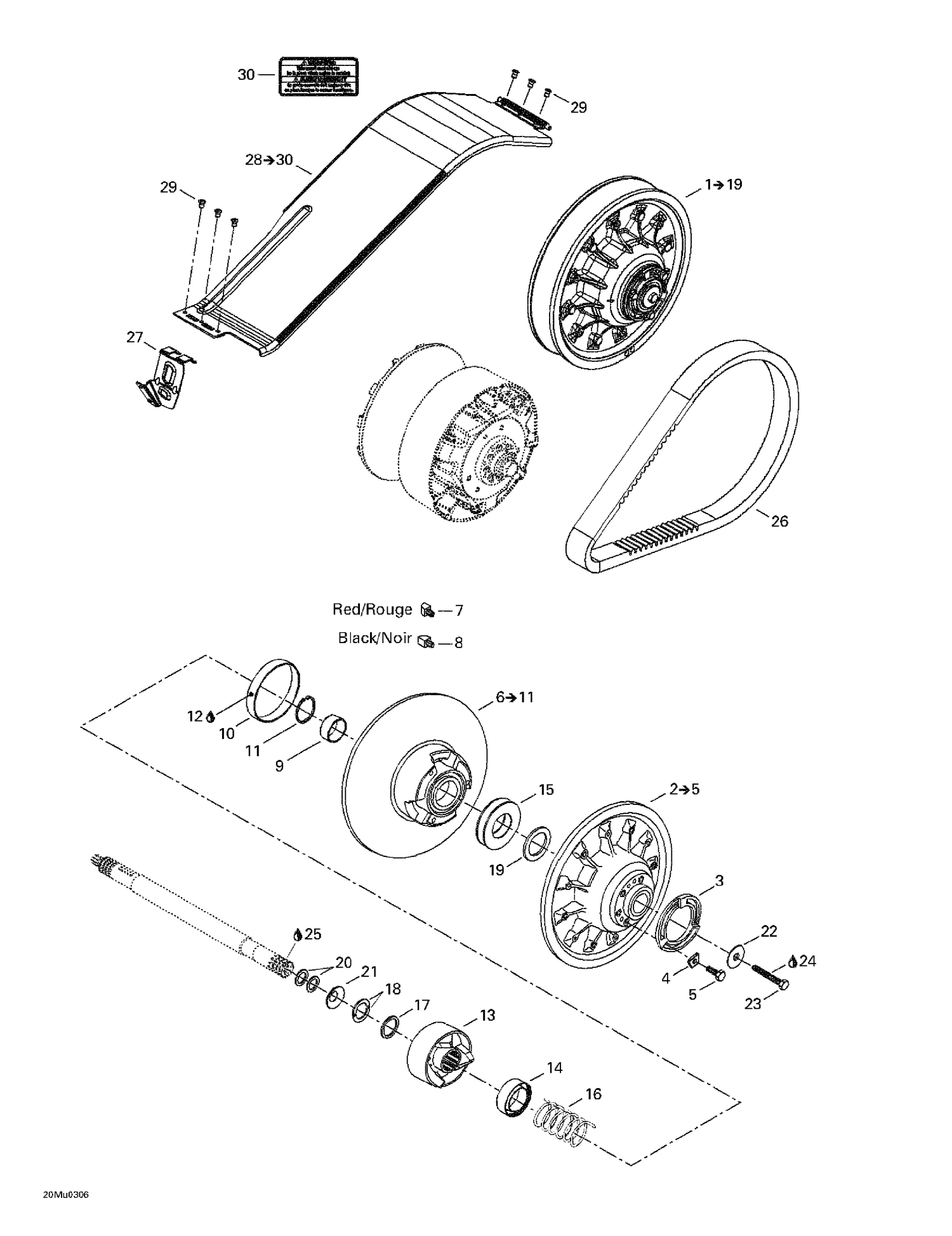

| Ref | Part Number | Description |
|---|
| 3 |
415005800 |
Adjustment Ring |
| 4 |
415005900 |
Adjustment Shim |
| 5 |
207162544 |
Hex. Screw M6 X 25 |
| 7 |
417126373 |
REAR CAM SLIDER SHOE, RED - Call your local BRP dealership |
| 8 |
417126374 |
Front Cam Slider Shoe, Black |
| 9 |
Not |
Available As Spare Part - Bushing |
| 10 |
417126902 |
BUSHING - Call your local BRP dealership This part replaces 414978100. |
| 11 |
371911200 |
CIRCLIP - Call your local BRP dealership |
| 12 |
413703100 |
Loctite 609, 10 ml |
| 13 |
417126721 |
CAM ASSY - Call your local BRP dealership |
| 14 |
415006000 |
GUARD - Call your local BRP dealership |
| 15 |
504099600 |
STOPPER WASHER - Call your local BRP dealership |
| 16 |
417126735 |
Release Spring, pink |
| 17 |
417126375 |
Spacer |
| 18 |
371911000 |
HALF KEY - Call your local BRP dealership |
| 19 |
504112300 |
SHIM - Call your local BRP dealership |
| 20 |
417300252 |
Spacer This part replaces 417300231. |
| 21 |
417300055 |
Protector |
| 22 |
517302322 |
Strength Washer |
| 23 |
207087544 |
HEX. SCREW M8 X 75 - Call your local BRP dealership |
| 24 |
293800060 |
Loctite 243, 10 ml |
| 25 |
219704461 |
LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership |
| 26 |
417300586 |
Drive Belt This part replaces 417300197. |
| 27 |
417300172 |
Bracket |
| 29 |
390402200 |
Pop Rivet 3/16" |
| 207162244 |
HEX. |
SCREW M6 X 22 - Call your local BRP dealership 207162244 |
| 207162244 |
Vis |
Hex. M6 X 22 - Appelez votre concessionnaire BRP local 207162244 |
